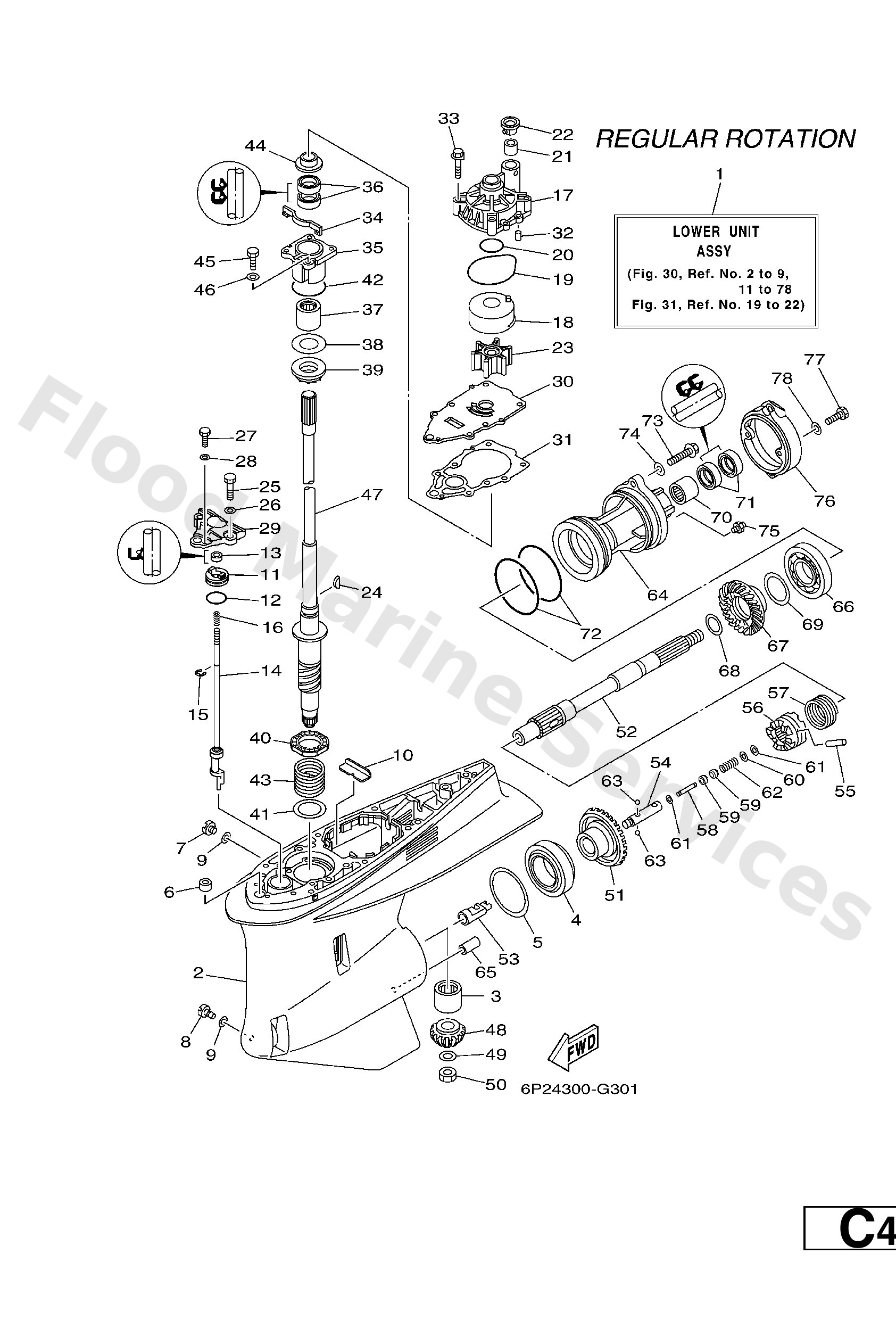

Diagram: LOWER CASING & DRIVE 1

Diagram

Parts List

6P245300408D (X(25.3"),RH)
Lower unit assembly
Diagram Reference: 1
Get Part
6P245300508D (U(30.3"),RH)
Lower unit assembly
Diagram Reference: 1
Get Part
6P245301108D
Casing, lower
Diagram Reference: 2
Get Part
9331183280
Ball bearing
Diagram Reference: 3
Get Part
93332000W1
Bearing
Diagram Reference: 4
Get Part
61A4556700 (UR)
Shim (t:0.10mm)
Diagram Reference: 5
Get Part
61A4556710 (UR)
Shim (t:0.12mm)
Diagram Reference: 5
Get Part
61A4556720 (UR)
Shim (t:0.15mm)
Diagram Reference: 5
Get Part
61A4556730 (UR)
Shim (t:0.18mm)
Diagram Reference: 5
Get Part
61A4556740 (UR)
Shim (t:0.30mm)
Diagram Reference: 5
Get Part
61A4556750 (UR)
Shim (t:0.40mm)
Diagram Reference: 5
Get Part
61A4556760 (UR)
Shim (t:0.50mm)
Diagram Reference: 5
Get Part
6634436600
Damper, Water Seal 2
Diagram Reference: 6
Get Part
9034008002
Plug, Straight Screw
Diagram Reference: 7
Get Part
6884534110
Plug, Drain
Diagram Reference: 8
Get Part
9043008020
Gasket
Diagram Reference: 9
Get Part
61A453760094
31
Diagram Reference: 10
Get Part
65N4532100
Plate
Diagram Reference: 11
Get Part
9321033M49
O-ring(6l5)
Diagram Reference: 12
Get Part
9310609014
28
Diagram Reference: 13
Get Part
6P24415000
Shift cam assembly
Diagram Reference: 14
Get Part
9900108600
Circlip
Diagram Reference: 15
Get Part
9050111M10
Spring, Compression
Diagram Reference: 16
Get Part
61A4431101
Housing, Water Pump
Diagram Reference: 17
Get Part
61A4432202
Insert, Cartridge
Diagram Reference: 18
Get Part
9321086M38
O-Ring
Diagram Reference: 19
Get Part
9321037160
O-Ring
Diagram Reference: 20
Get Part
6E54436500
Damper, Water Seal 1
Diagram Reference: 21
Get Part
6E54431200
Cover, Water Pump Housing
Diagram Reference: 22
Get Part
6E54435201
Impeller
Diagram Reference: 23
Get Part
9028004M05
29
Diagram Reference: 24
Get Part
9709508030
Bolt
Diagram Reference: 25
Get Part
9299508600
17
Diagram Reference: 26
Get Part
9709506016
Bolt
Diagram Reference: 27
Get Part
9299506600
10
Diagram Reference: 28
Get Part
60X4431200
Cover, water pump housing
Diagram Reference: 29
Get Part
6P24432300
Outer plate, cartridge
Diagram Reference: 30
Get Part
60X44315A0
Gasket, water pump
Diagram Reference: 31
Get Part
9360612019
Pin, Dowel
Diagram Reference: 32
Get Part
9011908M14
Bolt, With Washer
Diagram Reference: 33
Get Part
6P24572300
Plate, seal
Diagram Reference: 34
Get Part
6P2453310094
Housing, bearing
Diagram Reference: 35
Get Part
9310128M16
Oil Seal
Diagram Reference: 36
Get Part
93317330U2
Bearing
Diagram Reference: 37
Get Part
61A4558700 (UR)
Shim (t:0.10mm)
Diagram Reference: 38
Get Part
61A4558710 (UR)
Shim (t:0.12mm)
Diagram Reference: 38
Get Part
61A4558720 (UR)
Shim (t:0.15mm)
Diagram Reference: 38
Get Part
61A4558730 (UR)
Shim (t:0.18mm)
Diagram Reference: 38
Get Part
61A4558740 (UR)
Shim (t:0.30mm)
Diagram Reference: 38
Get Part
61A4558750 (UR)
Shim (t:0.40mm)
Diagram Reference: 38
Get Part
61A4558760 (UR)
Shim (t:0.50mm)
Diagram Reference: 38
Get Part
93341930U9
Bearing
Diagram Reference: 39
Get Part
9334134019
Bearing
Diagram Reference: 40
Get Part
9020142014
Washer, plate
Diagram Reference: 41
Get Part
9321055M14
O-Ring
Diagram Reference: 42
Get Part
90501450A2
Spring, compression
Diagram Reference: 43
Get Part
6E54534400
Cover, Oil Seal
Diagram Reference: 44
Get Part
9709508025
Bolt
Diagram Reference: 45
Get Part
6P24550100 (X(25.3"))
Drive shaft comp.
Diagram Reference: 47
Get Part
6P24550110 (U(30.3"))
Drive shaft comp.
Diagram Reference: 47
Get Part
6P24555101
Pinion
Diagram Reference: 48
Get Part
9020116M00
Washer, Plate
Diagram Reference: 49
Get Part
9017016M19
Nut
Diagram Reference: 50
Get Part
6P24556000
Gear set
Diagram Reference: 51
Get Part
69J4561100
Shaft, Propeller
Diagram Reference: 52
Get Part
61A4564102
Shifter
Diagram Reference: 53
Get Part
61A4563401
Slide, Shift
Diagram Reference: 54
Get Part
61A4563200
Pin, Cross
Diagram Reference: 55
Get Part
69J4563100
Clutch, Dog
Diagram Reference: 56
Get Part
61A4563300
Ring, Cross Pin
Diagram Reference: 57
Get Part
6H14566800
Shaft, Free 1
Diagram Reference: 58
Get Part
61A4563500
Plunger, Shift
Diagram Reference: 59
Get Part
9020102M00
Washer, Plate
Diagram Reference: 60
Get Part
9018302M03
Nut, Spring
Diagram Reference: 61
Get Part
9050110M77
Spring, Compression
Diagram Reference: 62
Get Part
9350104011
Ball
Diagram Reference: 63
Get Part
6D0453320094
Housing, bearing
Diagram Reference: 64
Get Part
9959010114
Pin, Dowel
Diagram Reference: 65
Get Part
93306210U0
Bearing
Diagram Reference: 66
Get Part
6P24557100
Gear
Diagram Reference: 67
Get Part
6P24557800 (UR)
Shim (t:1.80mm)
Diagram Reference: 68
Get Part
6P24557810 (UR)
Shim (t:1.90mm)
Diagram Reference: 68
Get Part
6P24557820 (UR)
Shim (t:2.00mm)
Diagram Reference: 68
Get Part
6P24557830 (UR)
Shim (t:2.10mm)
Diagram Reference: 68
Get Part
6P24557840 (UR)
Shim (t:2.20mm)
Diagram Reference: 68
Get Part
61A4557700 (UR)
Shim (t:0.10mm)
Diagram Reference: 69
Get Part
61A4557710 (UR)
Shim (t:0.12mm)
Diagram Reference: 69
Get Part
61A4557720 (UR)
Shim (t:0.15mm)
Diagram Reference: 69
Get Part
61A4557730 (UR)
Shim (t:0.18mm)
Diagram Reference: 69
Get Part
61A4557740 (UR)
Shim (t:0.30mm)
Diagram Reference: 69
Get Part
61A4557750 (UR)
Shim (t:0.40mm)
Diagram Reference: 69
Get Part
61A4557760 (UR)
Shim (t:0.50mm)
Diagram Reference: 69
Get Part
9331543064
Bearing
Diagram Reference: 70
Get Part
9310130002
Oil seal
Diagram Reference: 71
Get Part
9321104384
O–Ring
Diagram Reference: 72
Get Part
9010508049
Bolt, flange
Diagram Reference: 73
Get Part
9020108023
Washer, Plate
Diagram Reference: 74
Get Part
9370009M00
Nipple, Grease
Diagram Reference: 75
Get Part
6D045361008D
Cap, lower casing
Diagram Reference: 76
Get Part
9709508020
Bolt
Diagram Reference: 77
Get Part
