Parts List

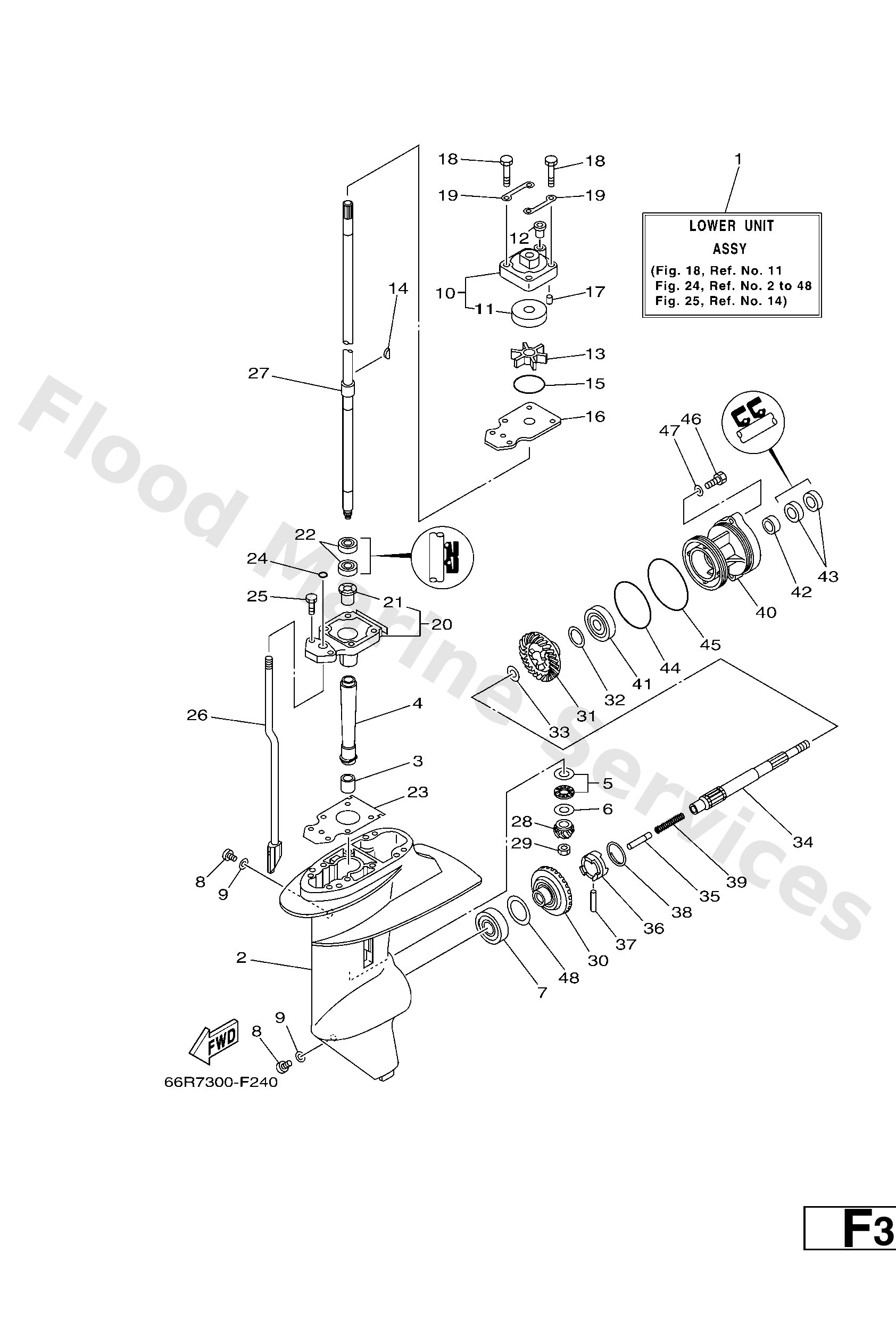

Lower unit assembly
Diagram Reference: 1
Lower Unit assembly
Diagram Reference: 1
Casing, lower
Diagram Reference: 2
Bearing, needle (6e7)
Diagram Reference: 3
Sleeve, drive shaft
Diagram Reference: 4
Bearing
Diagram Reference: 5
Shim (t:1.13mm)
Diagram Reference: 6
Shim (t:1.2mm)
Diagram Reference: 6
Brg,cyl-cal roller 0.19g nt
Diagram Reference: 7
Plug, straight screw
Diagram Reference: 8
Gasket
Diagram Reference: 9
Water pump housing comp.
Diagram Reference: 10
Insert, cartridge
Diagram Reference: 11
Damper, water seal 2
Diagram Reference: 12
Impeller
Diagram Reference: 13
Key, woodruff
Diagram Reference: 14
O-ring(55x)
Diagram Reference: 15
Outer plate, cartridge
Diagram Reference: 16
Pin, dowel (688)
Diagram Reference: 17
Bolt, hexagon
Diagram Reference: 18
Plate
Diagram Reference: 19
Housing, bearing
Diagram Reference: 20
Bushing, drive shaft 1
Diagram Reference: 21
Oil seal
Diagram Reference: 22
Packing, lower casing
Diagram Reference: 23
O-ring
Diagram Reference: 24
Screw, bind(j36)
Diagram Reference: 25
Shift cam assembly
Diagram Reference: 26
Drive Shaft assembly
Diagram Reference: 27
Drive Shaft assembly
Diagram Reference: 27
Pinion
Diagram Reference: 28
Nut (6e7)
Diagram Reference: 29
Gear
Diagram Reference: 30
Gear
Diagram Reference: 31
Shim (t:0.10mm)
Diagram Reference: 32
Shim (t:0.20mm)
Diagram Reference: 32
Shim (t:0.30mm)
Diagram Reference: 32
Shim (t:0.40mm)
Diagram Reference: 32
Shim (t:0.50mm)
Diagram Reference: 32
Washer, plate (2k7)
Diagram Reference: 33
Shaft propeller
Diagram Reference: 34
Plunger, shift
Diagram Reference: 35
Clutch, dog
Diagram Reference: 36
Pin straight 648456320000
Diagram Reference: 37
Ring, cross pin
Diagram Reference: 38
Spring, compression
Diagram Reference: 39
Cap, lower casing
Diagram Reference: 40
Bearing(1ff)
Diagram Reference: 41
Brg,cyl-cal roller 14g (683)
Diagram Reference: 42
Oil seal (17x30x6-650)
Diagram Reference: 43
O-ring (6g8)
Diagram Reference: 44
O-ring (1j7)
Diagram Reference: 45
Bolt
Diagram Reference: 46
Washer, plain (646)
Diagram Reference: 47
