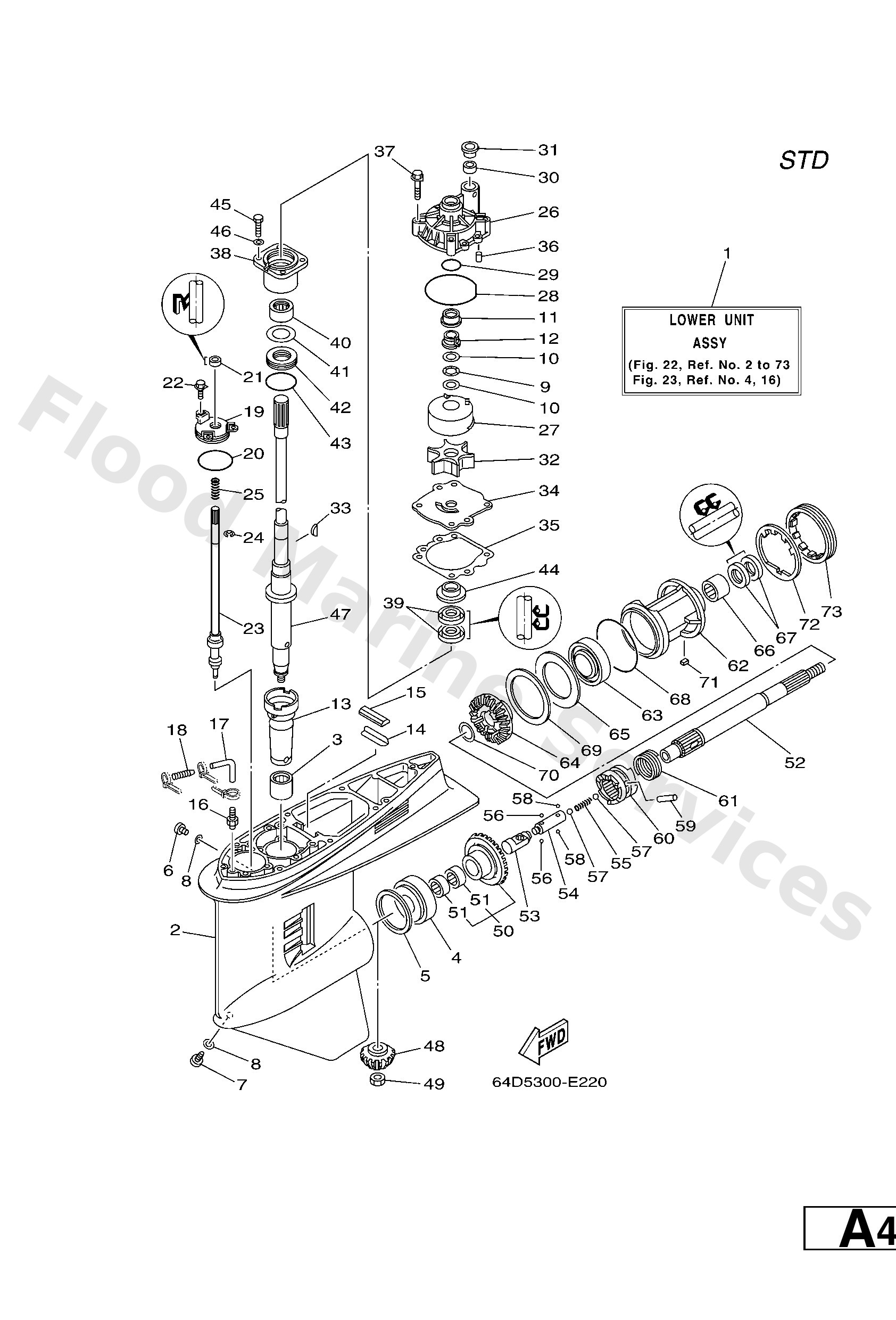

Parts List
Lower unit assembly
Diagram Reference: 1
Lower unit assembly
Diagram Reference: 1
Casing, lower
Diagram Reference: 2
Bearing, needle (6g5)
Diagram Reference: 3
Bearing, taper roller (6g5)
Diagram Reference: 4
Shim (t:0.10mm)
Diagram Reference: 5
Shim (t:0.12mm)
Diagram Reference: 5
Shim (t:0.15mm)
Diagram Reference: 5
Shim (t:0.18mm)
Diagram Reference: 5
Shim (t:0.30mm)
Diagram Reference: 5
Shim (t:0.40mm)
Diagram Reference: 5
Shim (t:0.50mm)
Diagram Reference: 5
Plug, straight screw
Diagram Reference: 6
Plug, drain
Diagram Reference: 7
Gasket
Diagram Reference: 8
Washer, wave(61a)
Diagram Reference: 9
Washer, plate(61a)
Diagram Reference: 10
Collar, drive shaft
Diagram Reference: 11
Spacer, 1
Diagram Reference: 12
Sleeve, drive shaft
Diagram Reference: 13
Guide, seal damper
Diagram Reference: 14
Guide, seal damper
Diagram Reference: 14
Damper, seal 2
Diagram Reference: 15
Nipple, hose
Diagram Reference: 16
Hose (l250)
Diagram Reference: 17
Hose (l250)
Diagram Reference: 17
End, nipple
Diagram Reference: 18
Plate
Diagram Reference: 19
O-ring(47x)
Diagram Reference: 20
Oil seal
Diagram Reference: 21
Bolt, with washer
Diagram Reference: 22
Shift cam assembly
Diagram Reference: 23
Circlip(2r6)
Diagram Reference: 24
Spring, compression (663)
Diagram Reference: 25
Housing, water pump
Diagram Reference: 26
Insert, cartridge
Diagram Reference: 27
O-ring (6e5)
Diagram Reference: 28
O-ring (6g8)
Diagram Reference: 29
Damper, water seal 1
Diagram Reference: 30
Cover, water pump housing
Diagram Reference: 31
Impeller
Diagram Reference: 32
Key, woodruff (6e5)
Diagram Reference: 33
Outer plate, cartridge
Diagram Reference: 34
Gasket,water pump
Diagram Reference: 35
Pin, dowel (614)
Diagram Reference: 36
Bolt, with washer
Diagram Reference: 37
Housing, bearing
Diagram Reference: 38
Oil seal (6e5)
Diagram Reference: 39
Bearing, cylindrical(6k0)
Diagram Reference: 40
Shim (t:0.10mm)
Diagram Reference: 41
Shim (t:0.30mm)
Diagram Reference: 41
Shim (t:0.18mm)
Diagram Reference: 41
Shim (t:0.12mm)
Diagram Reference: 41
Shim (t:0.15mm)
Diagram Reference: 41
Shim (t:0.40mm)
Diagram Reference: 41
Shim (t:0.50mm)
Diagram Reference: 41
Bearing, thrust(64d)
Diagram Reference: 42
O-ring (70e)
Diagram Reference: 43
Cover, oil seal
Diagram Reference: 44
Bolt (62g)
Diagram Reference: 45
Washer, plain (663)
Diagram Reference: 46
Drive shaft comp.
Diagram Reference: 47
Drive shaft comp.
Diagram Reference: 47
Pinion
Diagram Reference: 48
Nut, hexagon (688)
Diagram Reference: 49
Gear
Diagram Reference: 50
Bearing, needle (6g5)
Diagram Reference: 51
Shaft, propeller
Diagram Reference: 52
Shifter
Diagram Reference: 53
Slide, shift
Diagram Reference: 54
Spring (6g5)
Diagram Reference: 55
Ball (12r)
Diagram Reference: 56
Ball (498)
Diagram Reference: 57
Ball
Diagram Reference: 58
Pin, straight (6g5)
Diagram Reference: 59
Clutch, dog
Diagram Reference: 60
Ring, cross pin
Diagram Reference: 61
Housing, bearing
Diagram Reference: 62
Bearing (6g5)
Diagram Reference: 63
Gear
Diagram Reference: 64
Washer, thrust 2
Diagram Reference: 65
Bearing
Diagram Reference: 66
Oil seal (6e5)
Diagram Reference: 67
O-ring (6g5)
Diagram Reference: 68
Shim (t:0.10mm)
Diagram Reference: 69
Shim (t:0.12mm)
Diagram Reference: 69
Shim (t:0.15mm)
Diagram Reference: 69
Shim (t:0.18mm)
Diagram Reference: 69
Shim (t:0.30mm)
Diagram Reference: 69
Shim (t:0.40mm)
Diagram Reference: 69
Shim (t:0.50mm)
Diagram Reference: 69
Washer (6g5)
Diagram Reference: 70
Key, straight(6g5)
Diagram Reference: 71
Washer, claw
Diagram Reference: 72
Nut
Diagram Reference: 73
