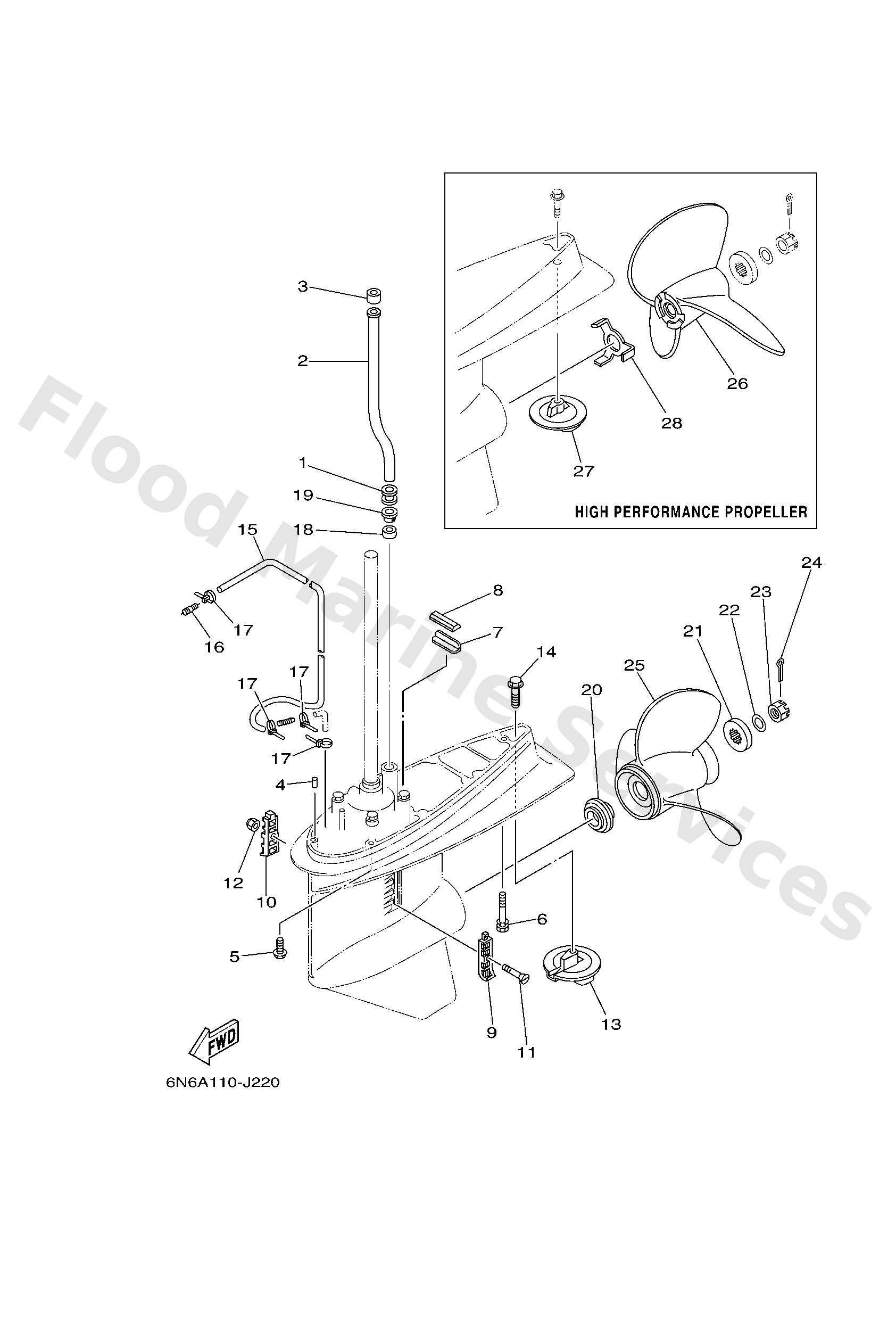

Parts List
Damper, water seal 2
Diagram Reference: 1
Tube, water
Diagram Reference: 2
Damper, water seal 1
Diagram Reference: 3
Pin, dowel b (6e5)
Diagram Reference: 4
Bolt, hexagon w/w deep recess
Diagram Reference: 5
Bolt, with washer
Diagram Reference: 6
Guide, seal damper
Diagram Reference: 7
Damper, seal 2
Diagram Reference: 8
Cover, water inlet
Diagram Reference: 9
Cover, water inlet
Diagram Reference: 10
Screw, countersunk
Diagram Reference: 11
Nut nylon (sus)(ex4)
Diagram Reference: 12
Trim tab
Diagram Reference: 13
Bolt, hexagon (663)
Diagram Reference: 14
Hose (l1160)
Diagram Reference: 15
End, nipple
Diagram Reference: 16
Clamp
Diagram Reference: 17
Cover, water pump housing
Diagram Reference: 19
Spacer 1
Diagram Reference: 20
Spacer 2
Diagram Reference: 21
Washer (6e5)
Diagram Reference: 22
Nut, castle (6e5)
Diagram Reference: 23
Pin, cotter (663)
Diagram Reference: 24
Propeller (3x12-5/8"x21"-k)
Diagram Reference: 25
Propeller (3x13-1/4x17-k)
Diagram Reference: 25
Propeller (3x13x19-k)
Diagram Reference: 25
Propeller (3x13"x21"-k)
Diagram Reference: 25
Propeller (3x13-1/2"x16"-k)
Diagram Reference: 25
Propeller (ss 3x13"x25"-k)
Diagram Reference: 25
Propeller (3x13"x23"-k)
Diagram Reference: 25
Propeller (3x13"x19"-k)
Diagram Reference: 25
Propeller (3x13-1/2"x14"-k)
Diagram Reference: 25
Propeller (3x13x17)
Diagram Reference: 25
Propeller (3x13"x25"-k)
Diagram Reference: 25
Propeller (3x14"x11"-k)
Diagram Reference: 25
Propeller (3x13"x23"-k)
Diagram Reference: 25
Propeller (3x13-5/8"x13"-k)
Diagram Reference: 25
Propeller (3x13-1/2x15-k)
Diagram Reference: 25
Propeller (ss 3x14"x20"-p)
Diagram Reference: 26
Propeller (ss 3x14"x24"-p)
Diagram Reference: 26
Propeller (ss 3x14"x28"-p)
Diagram Reference: 26
Propellar assembly (3x14"x22"-p)
Diagram Reference: 26
Propeller assembly (3x14"x26"-p)
Diagram Reference: 26
Tab-trim
Diagram Reference: 27
Plate, tooth
Diagram Reference: 28
