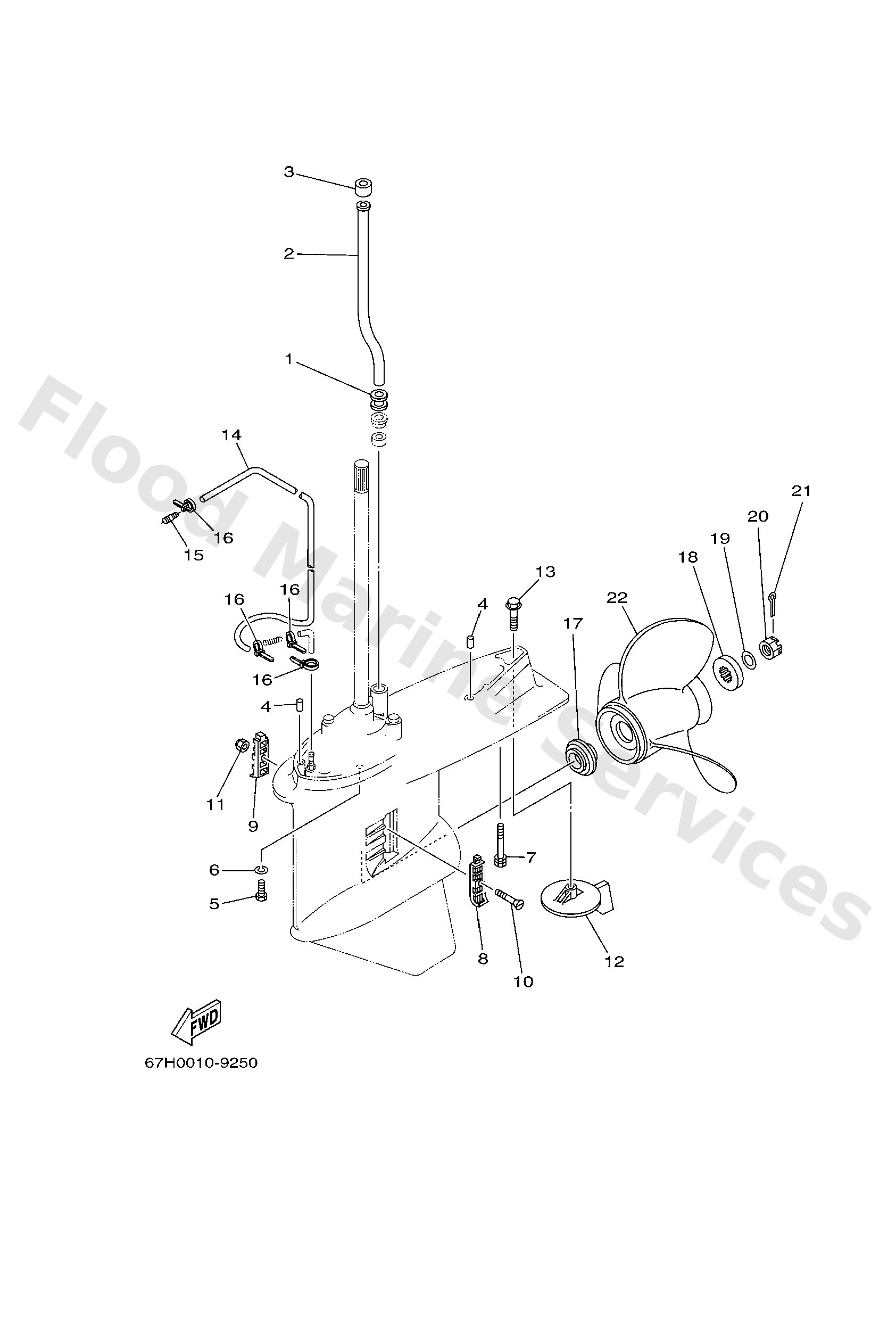

Parts List
Damper, water seal 2
Diagram Reference: 1
Tube, water
Diagram Reference: 2
Tube, water
Diagram Reference: 2
Damper, water seal 1
Diagram Reference: 3
Pin, dowel b (6e5)
Diagram Reference: 4
Bolt(64d)
Diagram Reference: 5
Ybs67-10 washer, spring
Diagram Reference: 6
Bolt, with washer
Diagram Reference: 7
Cover, water inlet
Diagram Reference: 8
Cover, water inlet
Diagram Reference: 9
Screw, countersunk
Diagram Reference: 10
Nut nylon (sus)(ex4)
Diagram Reference: 11
Tab-trim
Diagram Reference: 12
Bolt, hexagon (663)
Diagram Reference: 13
End, nipple
Diagram Reference: 15
Clamp
Diagram Reference: 16
Spacer 1
Diagram Reference: 17
Spacer 2
Diagram Reference: 18
Washer (6e5)
Diagram Reference: 19
Nut, castle (6e5)
Diagram Reference: 20
Pin, cotter (663)
Diagram Reference: 21
Propeller (3x13-1/2"x23"-m)
Diagram Reference: 22
Propeller (3x14-1/2"x17"-m)
Diagram Reference: 22
Propeller (3x14"x19"-m)
Diagram Reference: 22
Propeller (3x13-3/4"x21"-m)
Diagram Reference: 22
Propeller (3x15-1/4x15-m)
Diagram Reference: 22
Propeller (3x14-5/8"x16"-m)
Diagram Reference: 22
Propeller (ss 3x13-3/8"x25"-m)
Diagram Reference: 22
Propeller (3x15-3/4"x13"-m)
Diagram Reference: 22
Propeller (3x15-1/4 x15 -m)
Diagram Reference: 22
Propeller (3x13-3/4 x21 -m)
Diagram Reference: 22
Propeller (3x13-3/4"x19"-m2)
Diagram Reference: 22
Propeller (3x13-3/8"x23"-m)
Diagram Reference: 22
Propeller (3x13-3/4"x17"-m2)
Diagram Reference: 22
