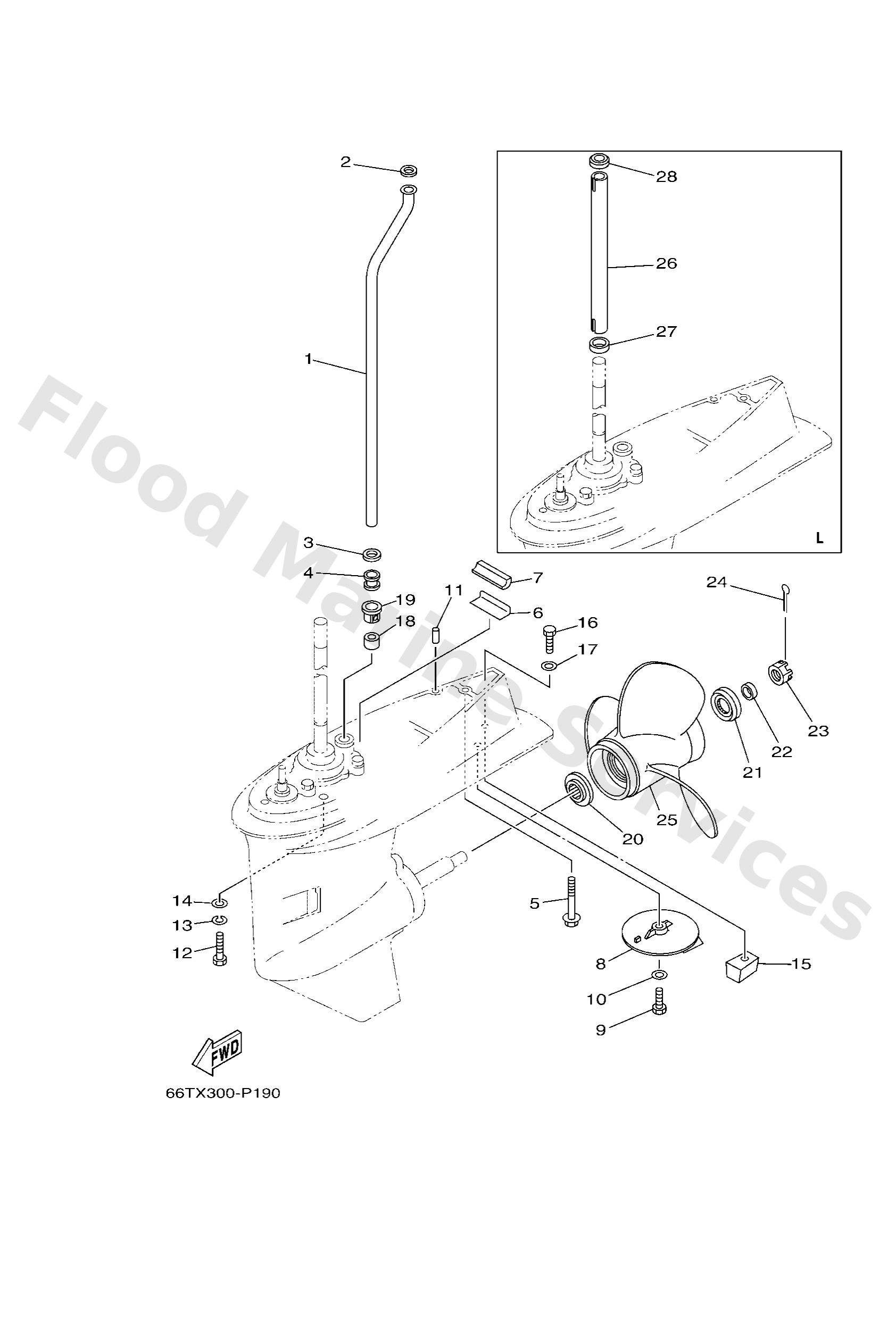

Diagram: LOWER CASING & DRIVE 2

Diagram

Parts List

66T4436110 (L(21.7"))

Tube, water

Diagram Reference: 1

9020212060

Washer, plate(663)

Diagram Reference: 2

9043012072

Gasket

Diagram Reference: 3

6634436700

Damper, water seal 3

Diagram Reference: 4

9757508565 (L(21.7"))

Bolt, hexagon w/w deep recess

Diagram Reference: 5

6634537600

Guide, seal damper

Diagram Reference: 6

63D4537500

Damper, seal

Diagram Reference: 7

6644537101

Tab-trim

Diagram Reference: 8

9709508025

Bolt (62g)

Diagram Reference: 9

9299508600

Washer, plain (663)

Diagram Reference: 10

9360612019

Pin, dowel (614)

Diagram Reference: 11

9707510040 (L(21.7"))

Bolt, hexagon deep recess

Diagram Reference: 12

9299510100 (L(21.7"))

Ybs67-10 washer, spring

Diagram Reference: 13

9299510600 (L(21.7"))

Washer, plate

Diagram Reference: 14

67C4525100

Anode

Diagram Reference: 15

9709508035

Bolt(70w)

Diagram Reference: 16

6634436600

Damper, water seal 2

Diagram Reference: 18

63D4431200

Cover, water pump housing

Diagram Reference: 19

6634598702

Spacer

Diagram Reference: 20

66T4599700

Spacer 2

Diagram Reference: 21

9038922M01

Bush

Diagram Reference: 22

9017116011

Nut, castle (663)

Diagram Reference: 23

9149030025

Pin cotter

Diagram Reference: 24

69W4594300 (UR)

Propeller (3x11 x15 -g)

Diagram Reference: 25

69W4594500 (UR)

Propeller (3x11-1/8"x13"-g)

Diagram Reference: 25

69W4594700 (UR)

Prop assembly (3x11-5/8"x11"-g)

Diagram Reference: 25

6634595601 (UR)

Propeller (3x12-1/4"x9"-g)

Diagram Reference: 25

6634597460 (UR)

Propeller (3x11-1/2"x13"-g)

Diagram Reference: 25

6634597260 (UR)

Propeller (3x12"x11"-g)

Diagram Reference: 25

6634597060 (UR)

Propeller (3x11-3/4"x12"-g)

Diagram Reference: 25

6634597800 (UR)

Propeller (3x10-1/4"x16"-g)

Diagram Reference: 25

6634597600 (UR)

Propeller (3x10-1/4"x15"-g)

Diagram Reference: 25

6634593000 (UR)

Propeller (3x10-1/4"x14"-g)

Diagram Reference: 25

6634595801 (UR)

Propeller (3x11-1/4"x14"-g)

Diagram Reference: 25

6634595401 (UR)

Propeller (3x11-3/4"x10"-g)

Diagram Reference: 25

6634595202 (UR)

Propeller (3x11-3/8x12-g)

Diagram Reference: 25

6634594901 (UR)

Propeller (3x10-3/4"x16"-g)

Diagram Reference: 25

6634594101 (UR)

Propeller (3x10-3/4"x17"-g)

Diagram Reference: 25

63D4594100 (UR)

Propeller (3x12-1/4 x8 -g)

Diagram Reference: 25

69W4595800 (UR)

Propeller (3x11-1/4"x14"-g)

Diagram Reference: 25

69W4595200 (UR)

Propeller (3x11-3/8 x12 -g)

Diagram Reference: 25

66T4436230 (L(21.7"))

Tube, water 2

Diagram Reference: 26

9048025M70 (L(21.7"))

Grommet

Diagram Reference: 27

9048030M71 (L(21.7"))

Grommet

Diagram Reference: 28
