DEDHTC (2013)
LOWER CASING & DRIVE 2

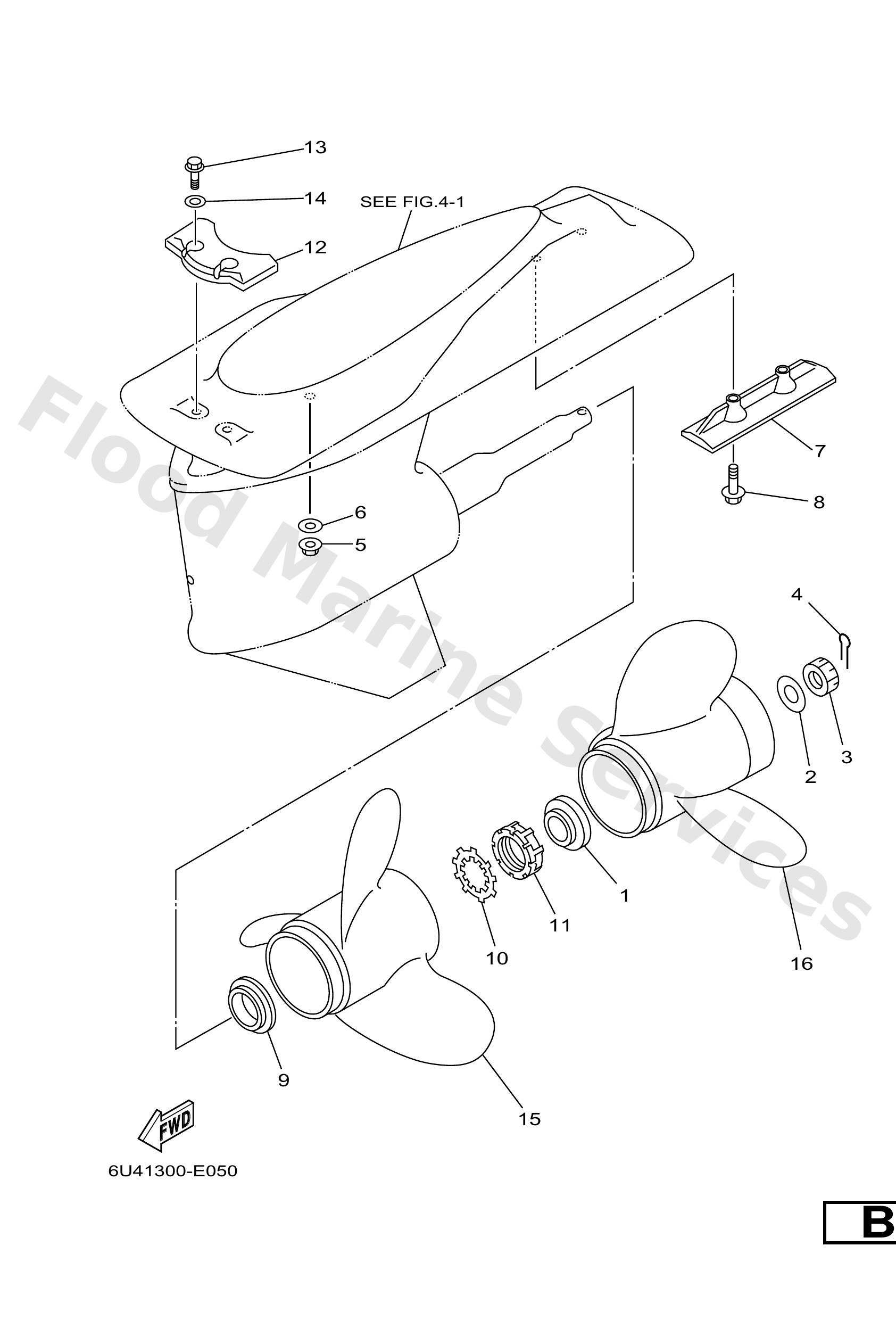

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6U44598700
Spacer
Loading…
↗
2
9020119M01
Washer, plate(6u1)
Loading…
↗
4
9149040030
Pin, cotter (663)
Loading…
↗
5
9578010300
Nut, nylon (6e5)
Loading…
↗
6
9299010600
Washer, plate
Loading…
↗
7
6U44525100
Anode
Loading…
↗
8
9011908MA6
Bolt, hexagon w/w deep recess
Loading…
↗
9
6U44599700
Spacer
Loading…
↗
10
6U4459610098
UR LGB
Propeller (ss 3x15"x28"-wr)
Loading…
↗
10
6U4459570098
UR LGB
Propeller (ss 3x15"x26"-wr)
Loading…
↗
10
6U4459530098
UR LGB
Propeller (ss 3x15"x24"-wr)
Loading…
↗
12
6U44537300
Anode
Loading…
↗
13
9709508020
Bolt, hexagon
Loading…
↗
14
9299508600
Washer, plain (663)
Loading…
↗
15
6U4459420098
UR LGB
Propeller (3X15X22-F)
Loading…
↗
15
6U4459460098
UR LGB
Propeller (ss 3x15"x23"-wf)
Loading…
↗
15
6U4459510098
UR LGB
Propeller (Ss 3X15"X24"-Wf)
Loading…
↗
15
6U4459550098
UR LGB
Propeller (ss 3x15"x26"-wf)
Loading…
↗
15
6U4459590098
UR LGB
Propeller (ss 3x15"x28"-wf)
Loading…
↗
16
6U4459440098
UR LGB
Propeller (3X15X22-R)
Loading…
↗
16
6U4459480098
UR LGB
Propeller (Ss 3X15"X23"-Wr)
Loading…
↗
