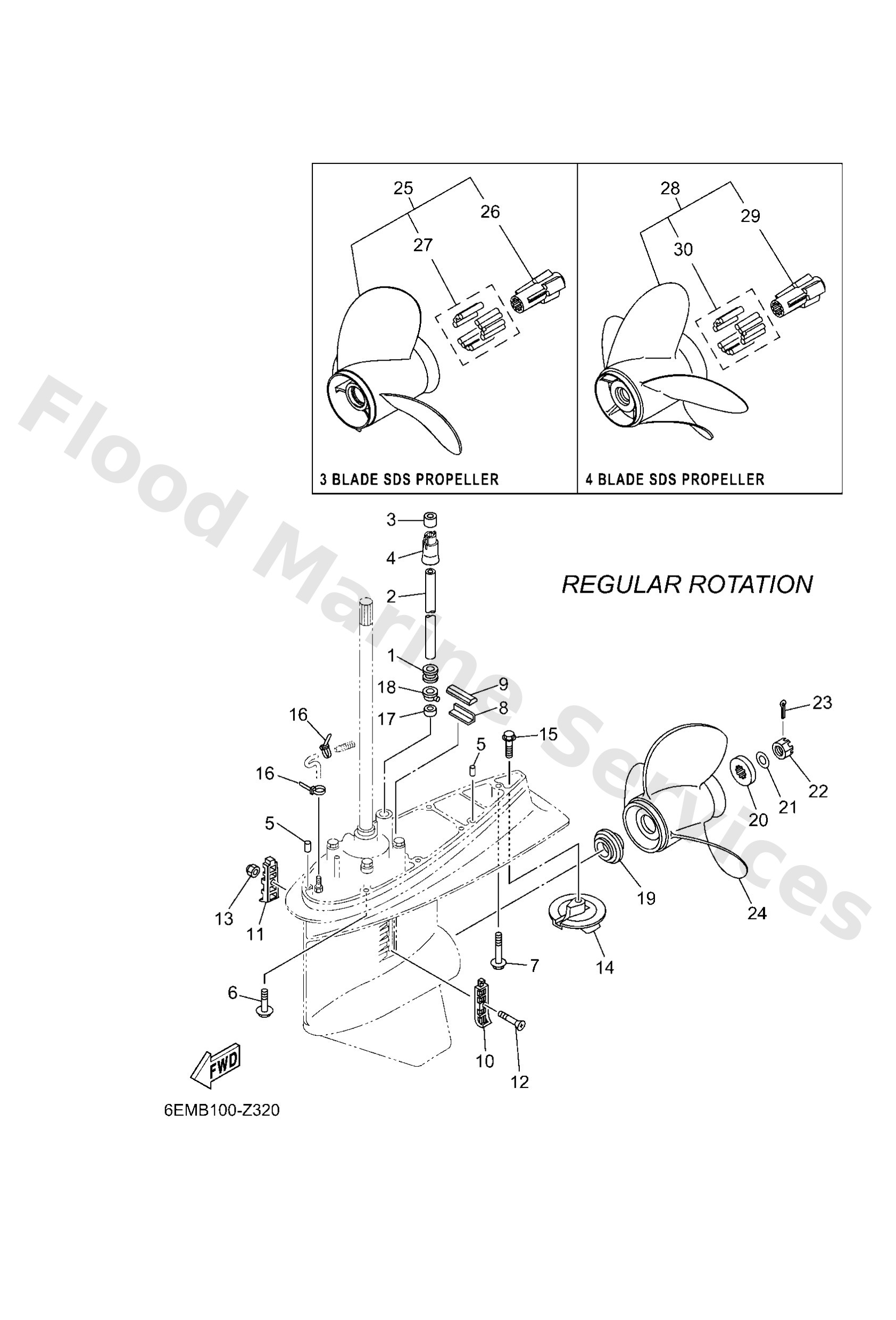

Parts List
Damper, water seal 2
Diagram Reference: 1
Pipe
Diagram Reference: 2
Pipe
Diagram Reference: 2
Damper, water seal 1
Diagram Reference: 3
Guide, water tube
Diagram Reference: 4
Pin, dowel b (6e5)
Diagram Reference: 5
Bolt, hexagon w/w deep recess
Diagram Reference: 6
Bolt, with washer
Diagram Reference: 7
Guide, seal damper
Diagram Reference: 8
Damper, seal 2
Diagram Reference: 9
Cover, water inlet
Diagram Reference: 10
Cover, water inlet
Diagram Reference: 11
Screw, countersunk
Diagram Reference: 12
Nut nylon (sus)(ex4)
Diagram Reference: 13
Trim tab
Diagram Reference: 14
Bolt, hexagon (663)
Diagram Reference: 15
Clamp
Diagram Reference: 16
Damper, water seal 1
Diagram Reference: 17
Cover, water pump housing
Diagram Reference: 18
Spacer 1
Diagram Reference: 19
Spacer 2
Diagram Reference: 20
Washer (6e5)
Diagram Reference: 21
Nut, castle (6e5)
Diagram Reference: 22
Pin, cotter (663)
Diagram Reference: 23
Propeller (3x14"x11"-k)
Diagram Reference: 24
Propeller (3x13-5/8"x13"-k)
Diagram Reference: 24
Propeller (3x13-5/8"x14"-k)
Diagram Reference: 24
Propeller (3x13x17)
Diagram Reference: 24
Propeller (3x13"x19"-k)
Diagram Reference: 24
Propeller (3x13"x21"-k)
Diagram Reference: 24
Propeller (3x13"x23"-k)
Diagram Reference: 24
Propeller (ss 3x13"x25"-k)
Diagram Reference: 24
Propeller (3X13-1/2"X17"-K)
Diagram Reference: 24
Propeller (3X13-1/2"X19"-K)
Diagram Reference: 24
Propeller (3X13-1/2"X21"-K)
Diagram Reference: 24
Propeller (3X13-1/2"X23"-K)
Diagram Reference: 24
Propeller (3x13-1/2"x14"-k)
Diagram Reference: 24
Propeller (3x13"x25"-k)
Diagram Reference: 24
Propeller (3x13"x23"-k)
Diagram Reference: 24
Propeller (3x12-5/8"x21"-k)
Diagram Reference: 24
Propeller (3x13x19-k)
Diagram Reference: 24
Propeller (3x13-1/4x17-k)
Diagram Reference: 24
Propeller (3x13-1/2x15-k)
Diagram Reference: 24
Propeller (3x13-1/2"x16"-k)
Diagram Reference: 24
Propeller (3x13-1/2 x 12 -k)
Diagram Reference: 25
Propeller (al 3x13-1/4 x16 -k)
Diagram Reference: 25
Propeller (al 3x13-1/2 x15 -k)
Diagram Reference: 25
Propeller (al 3x13-5/8 x14 -k)
Diagram Reference: 25
Propeller (3x13-1/2 x 16 -k)
Diagram Reference: 25
Propeller (3x13-1/2 x 14 -k)
Diagram Reference: 25
Propeller 3x13-1/2 x 10-1/2-k
Diagram Reference: 25
Propeller (3x13-1/2 x 9-k)
Diagram Reference: 25
Talon 3 x 13-1/8 x 16-sds
Diagram Reference: 25
Propeller (3X14"X13"-K)
Diagram Reference: 25
Propeller (3X14"X12"-K)
Diagram Reference: 25
Propeller (3X14"X11"-K)
Diagram Reference: 25
Propeller (3X14"X10"-K)
Diagram Reference: 25
Propeller (3X14"X9"-K)
Diagram Reference: 25
Talon 3 x 13-1/8 x 24-sds
Diagram Reference: 25
Talon 3 x 13-1/8 x 20-sds
Diagram Reference: 25
Talon 3 x 13-1/8 x 19-sds
Diagram Reference: 25
Talon 3 x 13-1/8 x 18-sds
Diagram Reference: 25
Talon 3 x 13-1/8 x 14-sds
Diagram Reference: 25
Propeller (al 3x13 x18 -k)
Diagram Reference: 25
Propeller (al 3x13-1/8 x17 -k)
Diagram Reference: 25
Talon 3 x 13-1/8 x 22-sds
Diagram Reference: 25
Bush, propeller
Diagram Reference: 26
Damper rubber, propeller 2
Diagram Reference: 27
Propeller (4X13-1/4"X14"-X)
Diagram Reference: 28
Prop - 4 x 13 1/4" x 16" (sds)
Diagram Reference: 28
Propeller (4X13-1/4"X18"-X)
Diagram Reference: 28
Propeller (4X13-1/4"X20"-X)
Diagram Reference: 28
Propeller (4X13-1/4"X22"-X)
Diagram Reference: 28
Propeller (4X13-1/4"X23"-X)
Diagram Reference: 28
