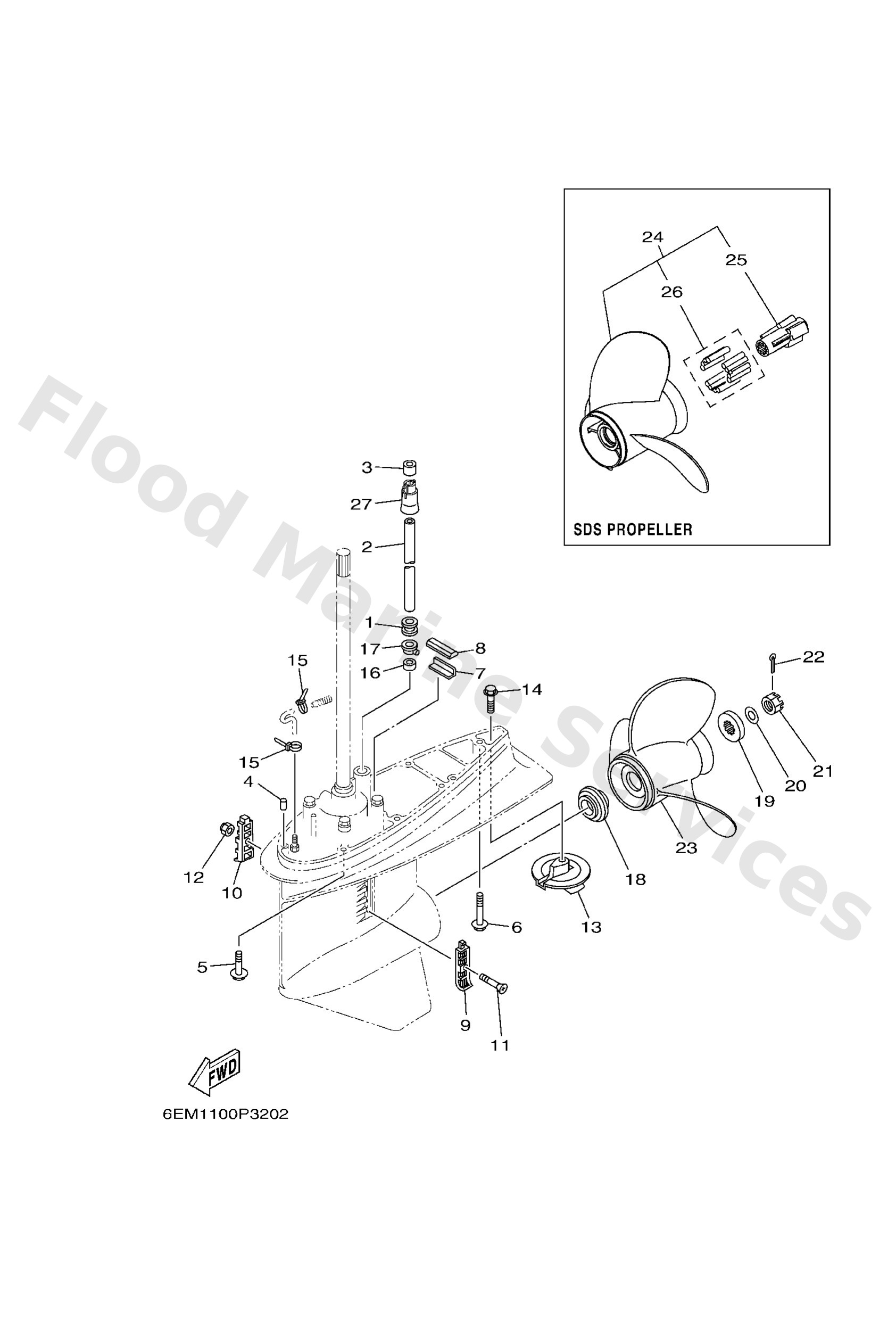

Diagram: LOWER CASING & DRIVE 2

Diagram

Parts List

6E54436600

Damper, water seal 2

Diagram Reference: 1

9044016001 (L(20.3"))

Pipe

Diagram Reference: 2

9044016002 (X(25.3"))

Pipe

Diagram Reference: 2

6EK4436500 (Go to P/N ) PE0-OM-150007)

6Ek-44365-01

Diagram Reference: 3

9360812M05

Pin, dowel b (6e5)

Diagram Reference: 4

9757510545

Bolt, hexagon w/w deep recess

Diagram Reference: 5

9011910M89

Bolt, with washer

Diagram Reference: 6

6634537600

Guide, seal damper

Diagram Reference: 7

6884537500

Damper, seal 2

Diagram Reference: 8

6884521402

Cover, water inlet

Diagram Reference: 9

6884521502

Cover, water inlet

Diagram Reference: 10

9015205M07

Screw, countersunk

Diagram Reference: 11

9018505002

Nut nylon (sus)(ex4)

Diagram Reference: 12

6E54537101

Trim tab

Diagram Reference: 13

9010510M00

Bolt, hexagon (663)

Diagram Reference: 14

9046511M10

Clamp

Diagram Reference: 15

6E54436500

Damper, water seal 1

Diagram Reference: 16

6E54431200

Cover, water pump housing

Diagram Reference: 17

63P4598700

Spacer 1

Diagram Reference: 18

6884599701

Spacer 2

Diagram Reference: 19

9299018200

Washer (6e5)

Diagram Reference: 20

9017118M04

Nut, castle (6e5)

Diagram Reference: 21

9149040030

Pin, cotter (663)

Diagram Reference: 22

6E54594700 (UR NORMAL PROP.)

Propeller (3x13-1/2x15-k)

Diagram Reference: 23

6E54594300 (UR NORMAL PROP.)

Propeller (3x12-5/8"x21"-k)

Diagram Reference: 23

6E54594100 (UR NORMAL PROP.)

Propeller (3x13x19-k)

Diagram Reference: 23

6E54594501 (UR NORMAL PROP.)

Propeller (3x13-1/4x17-k)

Diagram Reference: 23

item_description

Diagram Reference: 27

6884597003 (UR NORMAL PROP.)

Propeller (3x13"x19"-k)

Diagram Reference: 23

6884597860 (UR NORMAL PROP.)

Propeller (3x13-1/2"x16"-k)

Diagram Reference: 23

6884597601 (UR NORMAL PROP.)

Propeller (ss 3x13"x25"-k)

Diagram Reference: 23

6884597402 (UR NORMAL PROP.)

Propeller (3x13"x23"-k)

Diagram Reference: 23

6884597202 (UR NORMAL PROP.)

Propeller (3x13"x21"-k)

Diagram Reference: 23

6884593260 (UR NORMAL PROP.)

Propeller (3x13-1/2"x14"-k)

Diagram Reference: 23

6884593002 (UR NORMAL PROP.)

Propeller (3x13x17)

Diagram Reference: 23

6E54595800 (UR NORMAL PROP.)

Propeller (3x13-5/8"x14"-k)

Diagram Reference: 23

6E54595600 (UR NORMAL PROP.)

Propeller (3x13"x25"-k)

Diagram Reference: 23

6E54595400 (UR NORMAL PROP.)

Propeller (3x14"x11"-k)

Diagram Reference: 23

6E54595200 (UR NORMAL PROP.)

Propeller (3x13"x23"-k)

Diagram Reference: 23

6E54594900 (UR NORMAL PROP.)

Propeller (3x13-5/8"x13"-k)

Diagram Reference: 23

6EK4594100 (UR SDS PROP.)

Propeller (3x13-1/2 x 9-k)

Diagram Reference: 24

6EK4594300 (UR SDS PROP.)

Propeller 3x13-1/2 x 10-1/2-k

Diagram Reference: 24

6EK4594500 (UR SDS PROP.)

Propeller (3x13-1/2 x 12 -k)

Diagram Reference: 24

6EK4594700 (UR SDS PROP.)

Propeller (3x13-1/2 x 14 -k)

Diagram Reference: 24

6EK4594900 (UR SDS PROP.)

Propeller (3x13-1/2 x 16 -k)

Diagram Reference: 24

6EK4598200

Bush, propeller

Diagram Reference: 25

6EK45C8209

Damper rubber, propeller 2

Diagram Reference: 26
