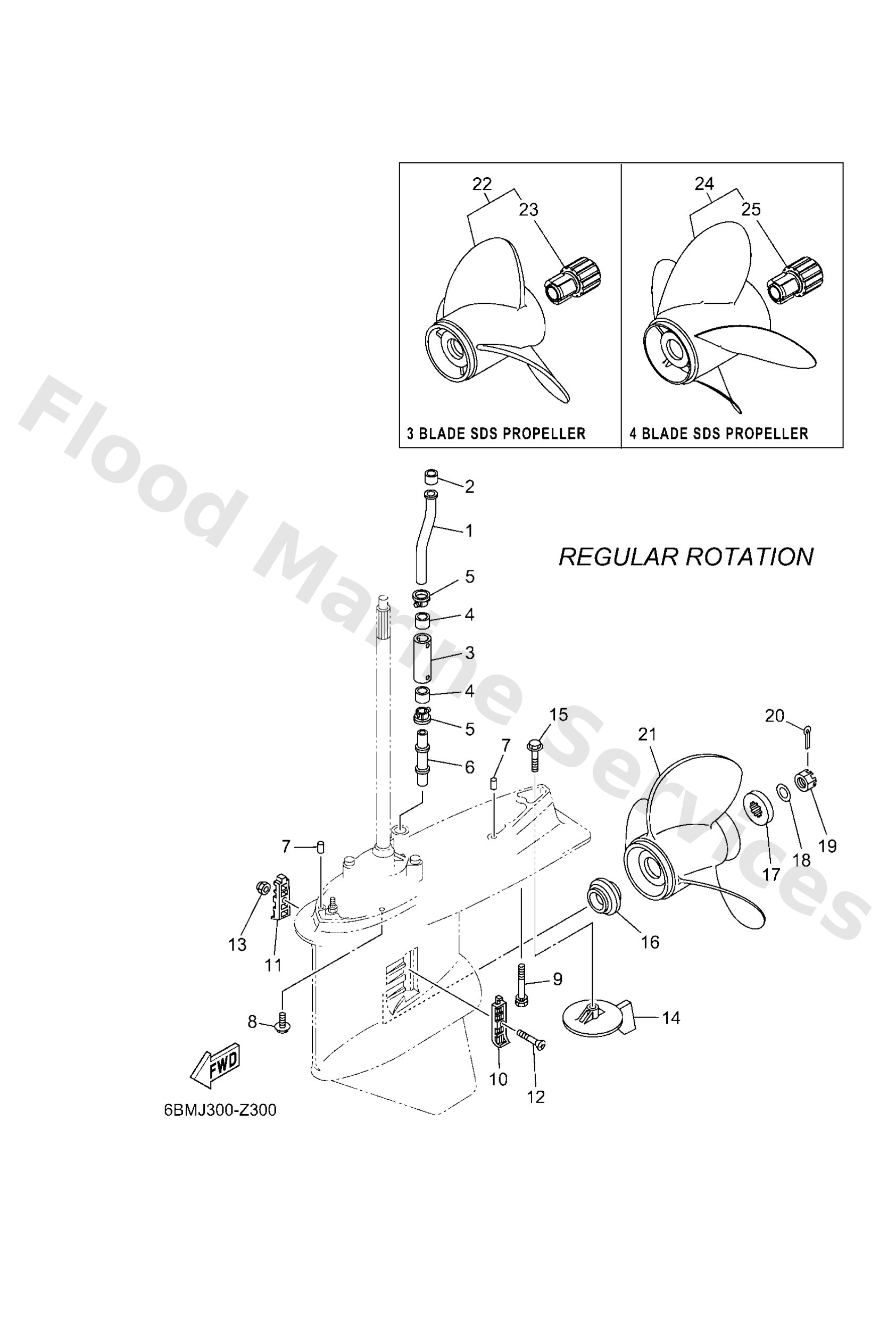

Parts List
Tube, water
Diagram Reference: 1
Damper, water seal 1
Diagram Reference: 4
Tube, water 2
Diagram Reference: 3
Cover, water pump housing
Diagram Reference: 5
Tube, water 3
Diagram Reference: 6
Pin, dowel(6t4)
Diagram Reference: 7
Bolt, hexagon w/w deep recess
Diagram Reference: 8
Bolt, with washer
Diagram Reference: 9
Cover, water inlet
Diagram Reference: 10
Cover, water inlet
Diagram Reference: 11
Screw, countersunk
Diagram Reference: 12
Nut nylon (sus)(ex4)
Diagram Reference: 13
Tab-trim
Diagram Reference: 14
Bolt, hexagon (663)
Diagram Reference: 15
Spacer 1
Diagram Reference: 16
Spacer 2
Diagram Reference: 17
Washer (6e5)
Diagram Reference: 18
Nut, castle (6e5)
Diagram Reference: 19
Pin, cotter (663)
Diagram Reference: 20
Propeller (3x15-1/4x15-m)
Diagram Reference: 21
Propeller (3x14-5/8"x16"-m)
Diagram Reference: 21
Propeller (3x14-1/2"x17"-m)
Diagram Reference: 21
Propeller (3x14"x19"-m)
Diagram Reference: 21
Propeller (3x13-3/4"x21"-m)
Diagram Reference: 21
Propeller (3x13-1/2"x23"-m)
Diagram Reference: 21
Propeller (3x15-3/4"x13"-m)
Diagram Reference: 21
Propeller (3X15"X21"-T)
Diagram Reference: 21
Propeller (3X15-1/4"X19"-T)
Diagram Reference: 21
Propeller (3X15-1/2"X17"-T)
Diagram Reference: 21
Propeller (3X14-1/2"X23"-M)
Diagram Reference: 21
Propeller (3X14-7/8"X21"-M)
Diagram Reference: 21
Propeller (3X15-1/4"X19"-M)
Diagram Reference: 21
Propeller (3X15-1/4"X17"-M)
Diagram Reference: 21
Propeller (3X14-1/2"X15"-M)
Diagram Reference: 21
Propeller (3X13-3/4"X19"-M)
Diagram Reference: 21
Propeller (3X14-1/4"X18"-M)
Diagram Reference: 21
Reliance sds (3x14-1/4"x17"-m)
Diagram Reference: 21
Propeller (ss 3x13-3/8"x25"-m)
Diagram Reference: 21
Propeller (3x13-3/8"x23"-m)
Diagram Reference: 21
Propeller (3x13-3/4 x21 -m)
Diagram Reference: 21
Propeller (3x13-3/4"x19"-m2)
Diagram Reference: 21
Propeller (3x13-3/4"x17"-m2)
Diagram Reference: 21
Propeller (3x15-1/4 x15 -m)
Diagram Reference: 21
Propeller (3X13-3/4"X21"-M)
Diagram Reference: 21
Propeller (3x14-1/4 x16 -m)
Diagram Reference: 22
Propeller (3x14-1/4 x14 -m)
Diagram Reference: 22
Reliance sds (3x13-3/4"x21"-m)
Diagram Reference: 22
Reliance sds (3x13-3/4"x19"-m)
Diagram Reference: 22
Reliance sds (3x14-1/4"x17"-m)
Diagram Reference: 22
Reliance sds (3x14-1/2"x15" m)
Diagram Reference: 22
Reliance sds (3x14-1/2"x14"-m)
Diagram Reference: 22
Reliance sds (3x14-1/2"x13"-m)
Diagram Reference: 22
Reliance sds (3x14-1/4"x18"-m)
Diagram Reference: 22
Sws2 w/sds (3x15 x20-t)
Diagram Reference: 22
Propeller (3X14-3/4X25-T)
Diagram Reference: 22
Propeller (3X14-3/4X24-T)
Diagram Reference: 22
Sws2 w/sds (3x14-3/4 x23-t)
Diagram Reference: 22
Sws2 w/sds (3x14-3/4 x22 -t)
Diagram Reference: 22
Sws2 w/sds (3x15 x21-t)
Diagram Reference: 22
Sws2 w/sds (3x15-1/4 x19-t)
Diagram Reference: 22
Sws2 w/sds (3x15-1/4 x18 -t)
Diagram Reference: 22
Propeller (3x14-1/4 x22 -m)
Diagram Reference: 22
Propeller (3x14-1/4 x20 -m)
Diagram Reference: 22
Propeller (3x14-1/4 x18 -m)
Diagram Reference: 22
Damper rubber, propeller 1
Diagram Reference: 23
Sws hs4 sds (ss 4x15"x21"-t)
Diagram Reference: 24
Sws hs4 sds (ss 4x15"x22"-t)
Diagram Reference: 24
Sws hs4 sds (ss 4x15"x23"-t)
Diagram Reference: 24
