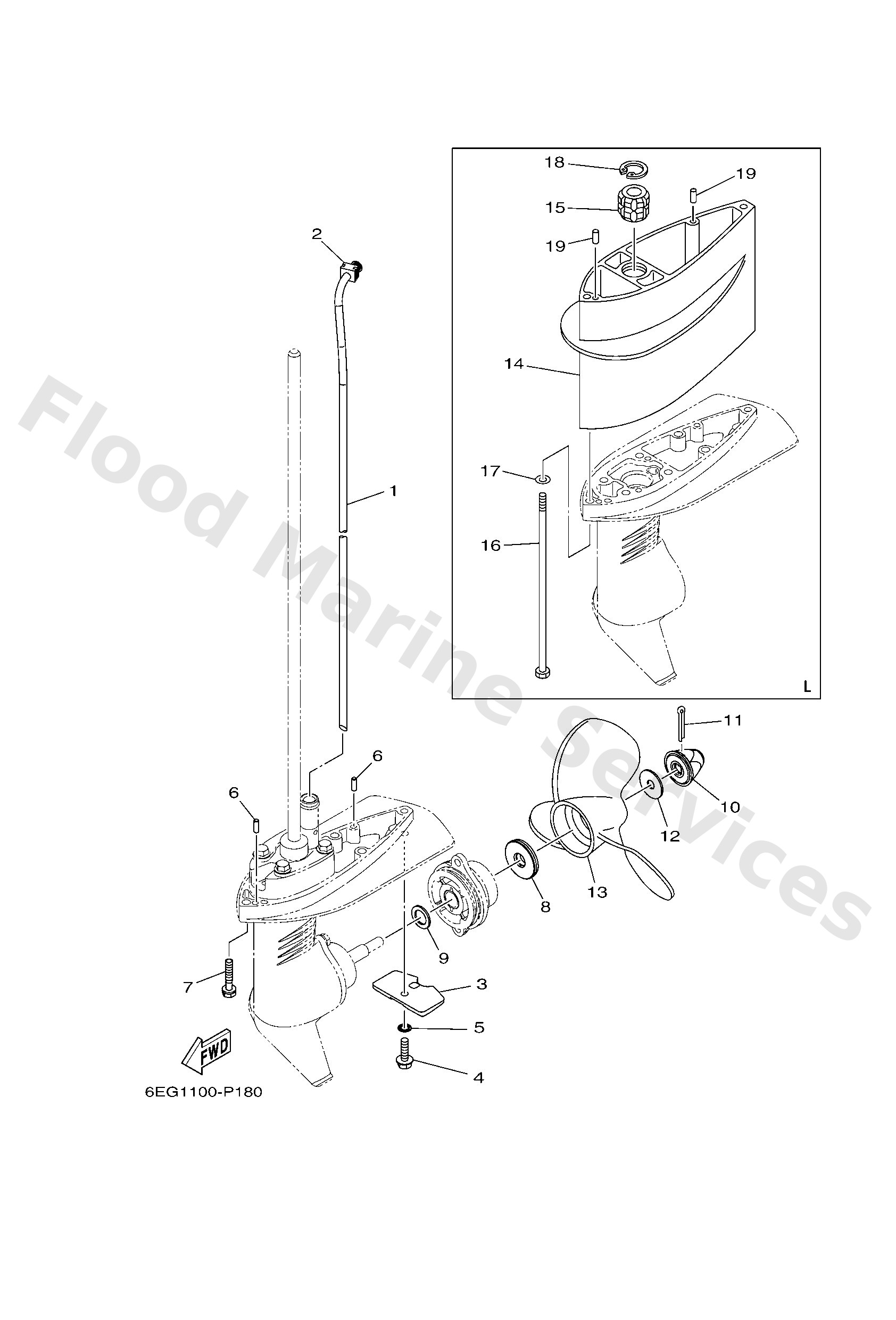

Diagram: LOWER CASING & DRIVE 2

Diagram

Parts List

6EG4436110 (L(22.0"))

Tube, water 1

Diagram Reference: 1

6EG4436100 (S(17.0"))

Tube, water 1

Diagram Reference: 1

6EEG436500

Damper, water seal

Diagram Reference: 2

6L54525103

Anode

Diagram Reference: 3

9589506012

Bolt, flange deep recess

Diagram Reference: 4

9299006300

Washer, tooth

Diagram Reference: 5

9360412M07 (L(22.0"))

Pin, dowel (688)

Diagram Reference: 19

9759506530 (S(17.0"))

Bolt, hexagon w/w deep recess

Diagram Reference: 7

6EEG598700

Spacer 1

Diagram Reference: 8

9020113198

Washer 6474556600

Diagram Reference: 9

6EEG561600

Nut, propeller

Diagram Reference: 10

9149025030

Pin, cotter(6l5)

Diagram Reference: 11

9020108M54

Washer, plate (6e5)

Diagram Reference: 12

6L54594900 (UR)

Propeller (3x7-1/4 x5 -bs)

Diagram Reference: 13

6L54594300 (UR)

Propeller (3x7-1/4 x6 -bs)

Diagram Reference: 13

6EGG5211008D (L(22.0"))

Extension

Diagram Reference: 14

6L54531800 (L(22.0"))

Bushing, drive shaft

Diagram Reference: 15

9010106M18 (L(22.0"))

Bolt(6l5)

Diagram Reference: 16

9299006600 (L(22.0"))

Washer, plain (646)

Diagram Reference: 17

9342022M03 (L(22.0"))

Cir clip (6e0)

Diagram Reference: 18
