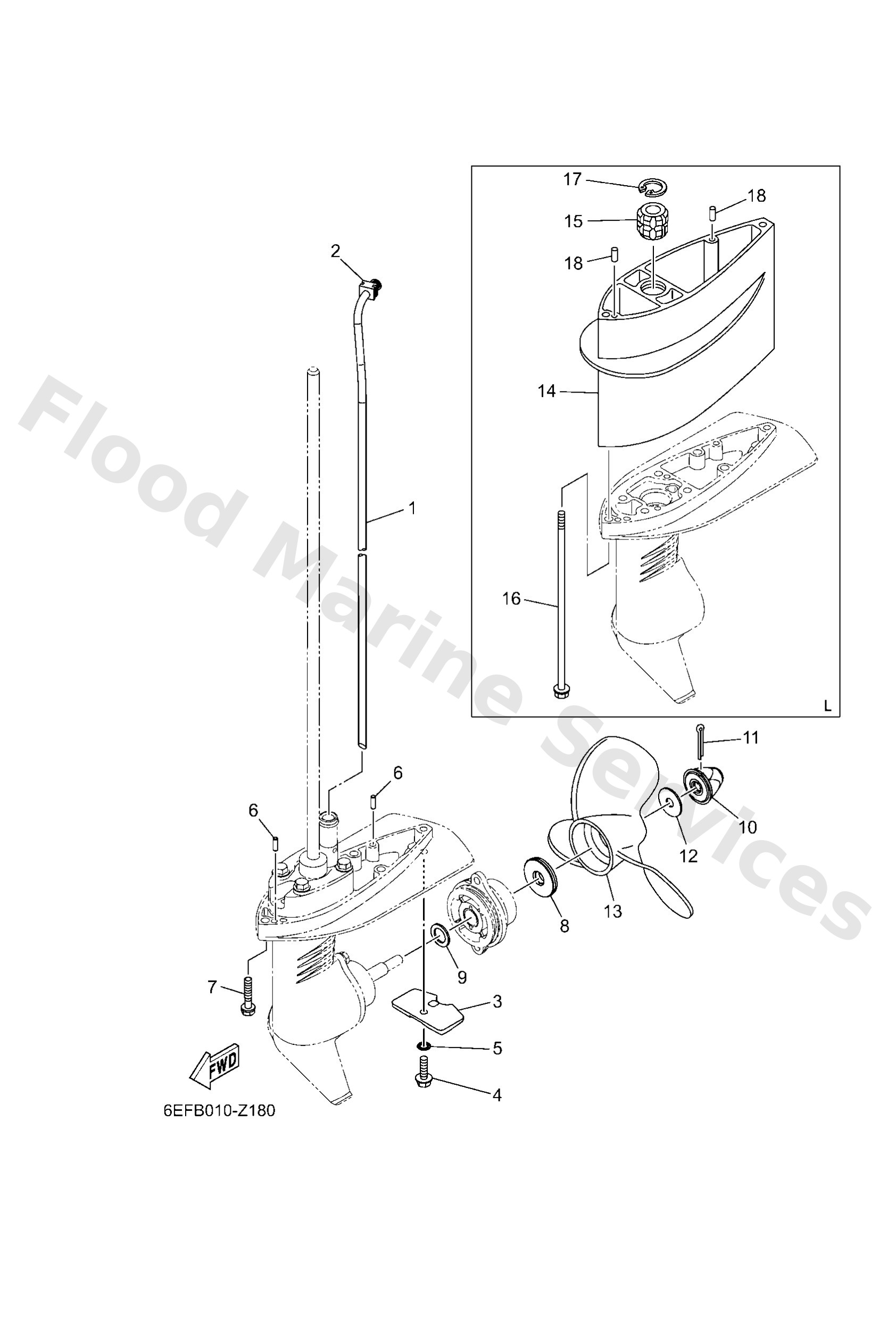

Diagram: LOWER CASING & DRIVE 2

Diagram

Parts List

6EG4436110 (L(22.0"))

Tube, water 1

Diagram Reference: 1

6EG4436100 (S(17.0"))

Tube, water 1

Diagram Reference: 1

6464436501

Damper, water seal 1

Diagram Reference: 2

6L54525103

Anode

Diagram Reference: 3

95D9506012

Bolt, flange deep recess

Diagram Reference: 4

9299006300

Washer, tooth

Diagram Reference: 5

9360412M07 (L(22.0"))

Pin, dowel (688)

Diagram Reference: 18

9011906324 (S(17.0"))

Bolt, with washer

Diagram Reference: 7

6L54598701

Spacer 1

Diagram Reference: 8

9020113198

Washer 6474556600

Diagram Reference: 9

6L54561600

Nut, propeller

Diagram Reference: 10

9149025030

Pin, cotter(6l5)

Diagram Reference: 11

9020108M54

Washer, plate (6e5)

Diagram Reference: 12

6L54594900 (UR)

Propeller (3x7-1/4 x5 -bs)

Diagram Reference: 13

6L54595200 (UR)

Propeller (3x7-1/4"x5-1/2"-bs)

Diagram Reference: 13

6L54594300 (UR)

Propeller (3x7-1/4 x6 -bs)

Diagram Reference: 13

6L54594500 (UR)

Propeller (3x7-1/4"x7-1/4"-bs)

Diagram Reference: 13

6L54594700 (UR)

Propeller (3x7-1/4"x8-1/4"-bs)

Diagram Reference: 13

6L545211108D (L(22.0"))

Extension

Diagram Reference: 14

6L54531800 (L(22.0"))

Bushing, drive shaft

Diagram Reference: 15

9011906325 (L(22.0"))

Bolt, with washer

Diagram Reference: 16

9342022M03 (L(22.0"))

Cir clip (6e0)

Diagram Reference: 17
