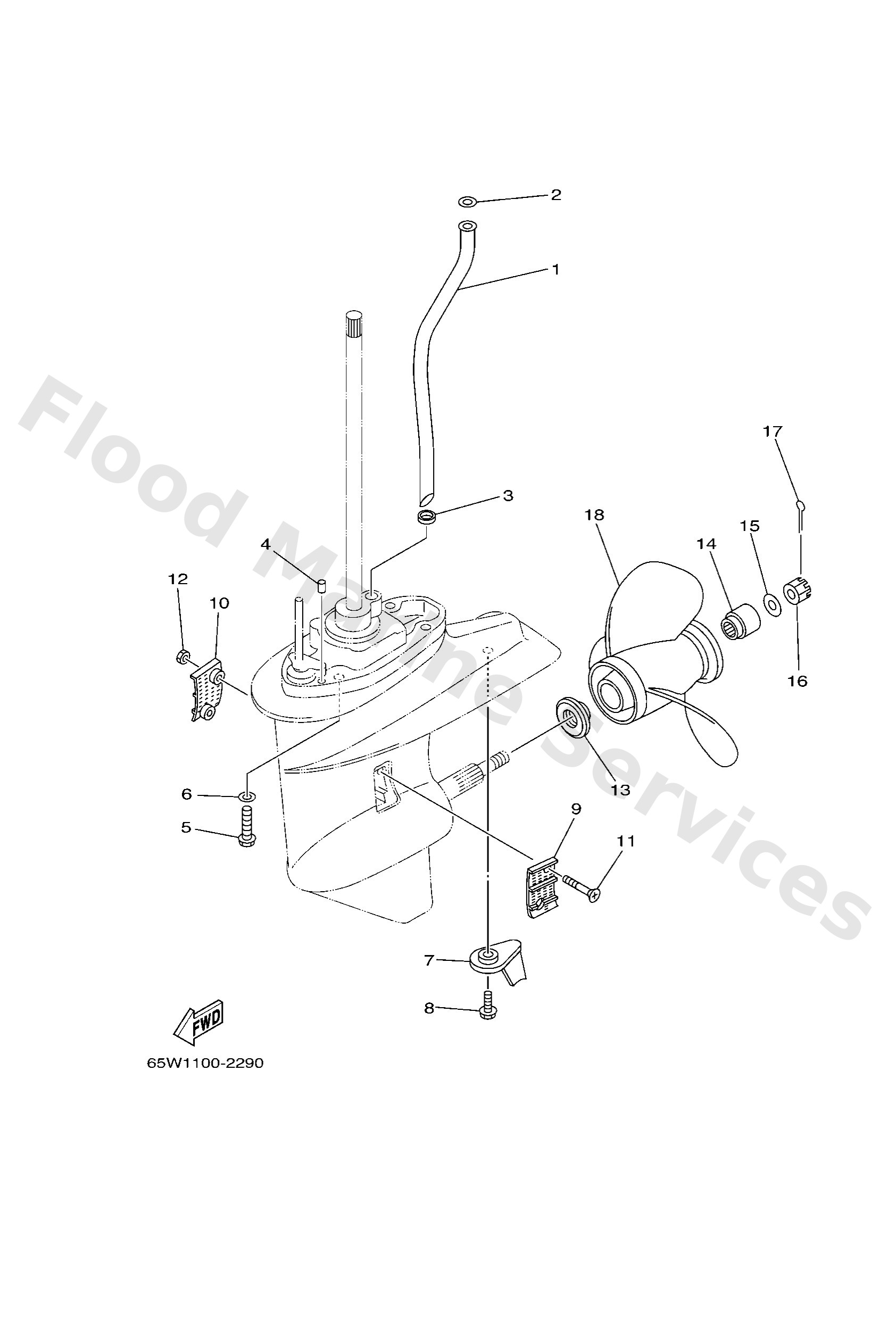

Parts List
Tube, water
Diagram Reference: 1
Washer, plate(663)
Diagram Reference: 2
Gasket
Diagram Reference: 3
Pin, dowel
Diagram Reference: 4
Bolt (689)
Diagram Reference: 5
Washer, plate
Diagram Reference: 6
Tab-trim
Diagram Reference: 7
Bolt, with washer(61n)
Diagram Reference: 8
Cover, water inlet
Diagram Reference: 9
Cover, water inlet
Diagram Reference: 10
Screw, countersunk
Diagram Reference: 11
Nut nylon (sus)(ex4)
Diagram Reference: 12
Spacer
Diagram Reference: 13
Spacer
Diagram Reference: 14
Washer, plain
Diagram Reference: 15
Nut(664)
Diagram Reference: 16
Pin, cotter
Diagram Reference: 17
Propeller (3x9-7/8 x8 -f)
Diagram Reference: 18
Propeller (3x9-7/8"x9"-f)
Diagram Reference: 18
Propeller (3x9-7/8 x10-1/2 -f)
Diagram Reference: 18
Propeller (3x9-7/8 x11-1/4 -f)
Diagram Reference: 18
Propeller (3x9-7/8 x12 -f)
Diagram Reference: 18
Propeller (3x9-1/8 x12 -f)
Diagram Reference: 18
Propeller (3x9-7/8 x13 -f)
Diagram Reference: 18
Propeller (3x9-1/8 x13 -f)
Diagram Reference: 18
Propeller (3x9-7/8 x14 -f)
Diagram Reference: 18
