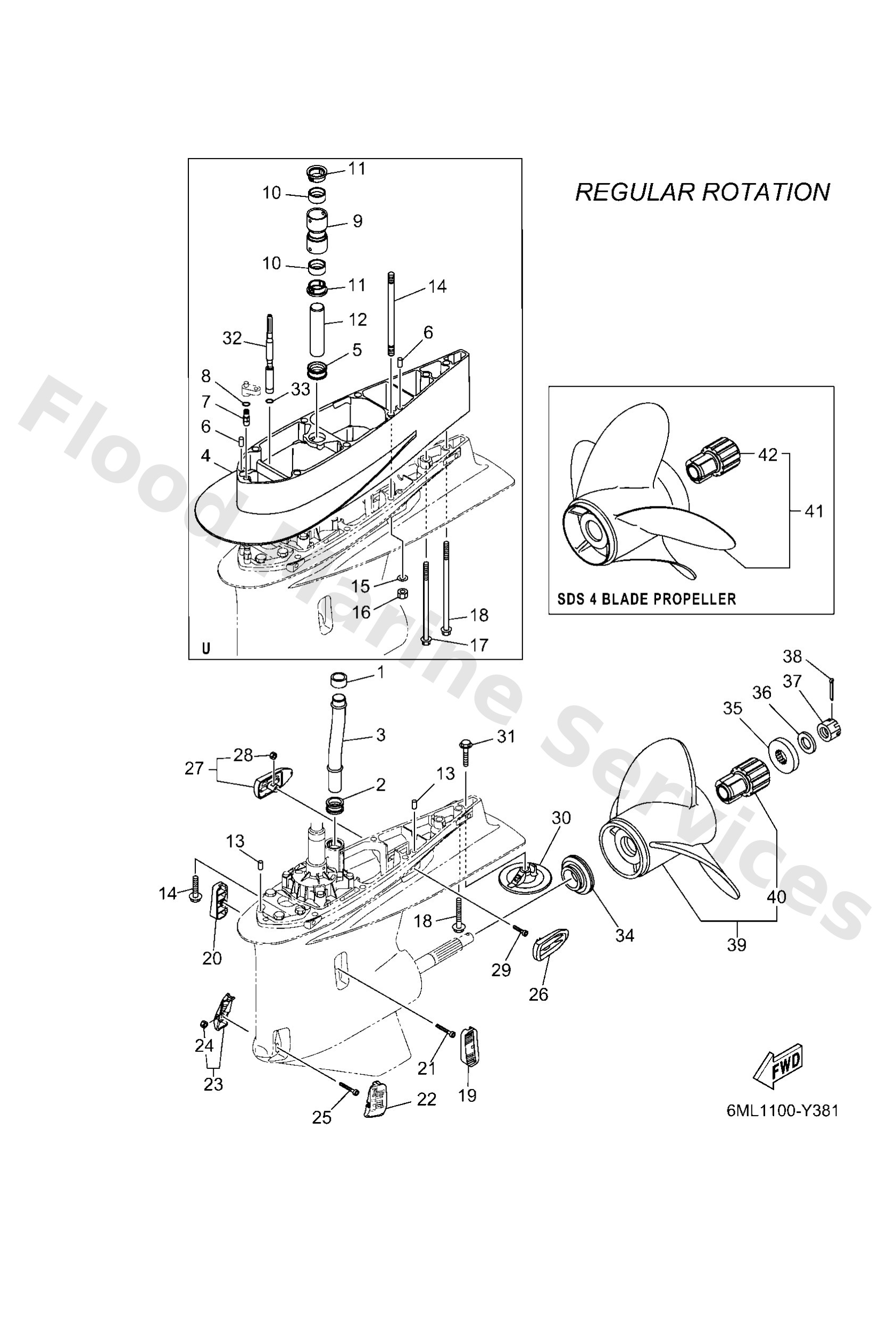

Diagram: LOWER CASING & DRIVE 2

Diagram

Parts List

6AW4436501 (U(30.2"))
Damper, water seal 1
Diagram Reference: 10
Get Part
6AW4436601 (U(30.2"))
Damper, water seal 2
Diagram Reference: 5
Get Part
6CE4436100
Tube, water 1
Diagram Reference: 3
Get Part
6KA4521100CE (WHITE, U(30.2"))
Extension
Diagram Reference: 4
Get Part
9360816M16 (U(30.2"))
Pin, dowel(6t4)
Diagram Reference: 6
Get Part
63P4537800 (U(30.2"))
Nipple, hose
Diagram Reference: 7
Get Part
9321007003 (U(30.2"))
O-ring (11m)
Diagram Reference: 8
Get Part
6CE4436200 (U(30.2"))
Tube, water 2
Diagram Reference: 9
Get Part
6AW4431200 (U(30.2"))
Cover, water pump housing
Diagram Reference: 11
Get Part
6AW4436300 (U(30.2"))
Tube, water 3
Diagram Reference: 12
Get Part
9011910024 (UR X(25.2"))
Bolt, with washer
Diagram Reference: 14
Get Part
9011610067 (UR U(30.2"))
Bolt, stud
Diagram Reference: 14
Get Part
9299510600 (U(30.2"))
Washer, plate
Diagram Reference: 15
Get Part
9538010600 (U(30.2"))
Nut(624)
Diagram Reference: 16
Get Part
9011910009 (U(30.2"))
Bolt, with washer
Diagram Reference: 17
Get Part
97E7510570 (UR X(25.2"))
Bolt, hexagon w/w deep recess
Diagram Reference: 18
Get Part
9011910008 (UR U(30.2"))
Bolt, with washer
Diagram Reference: 18
Get Part
6KA4521400
Cover, water inlet 1
Diagram Reference: 19
Get Part
6KA4521500
Cover, water inlet 2
Diagram Reference: 20
Get Part
9011005039
Bolt, hexagon socket head
Diagram Reference: 21
Get Part
6CE4522400
Cover, water inlet 3
Diagram Reference: 22
Get Part
6CE4522500
Cover, water inlet 4
Diagram Reference: 23
Get Part
9018505002
Nut nylon (sus)(ex4)
Diagram Reference: 24
Get Part
6KA4525400
Cover, outlet 1
Diagram Reference: 26
Get Part
6KA4525500
Cover, outlet 2
Diagram Reference: 27
Get Part
9138005020
Bolt,socket
Diagram Reference: 29
Get Part
6CE4537300
Anode
Diagram Reference: 30
Get Part
9010510M00
Bolt, hexagon (663)
Diagram Reference: 31
Get Part
6KA4419000 (U(30.2"))
Jt. shift rod comp.
Diagram Reference: 32
Get Part
9321009165 (U(30.2"))
O-ring
Diagram Reference: 33
Get Part
69J4598700
Spacer 1
Diagram Reference: 34
Get Part
6884599701
Spacer 2
Diagram Reference: 35
Get Part
9299018200
Washer (6e5)
Diagram Reference: 36
Get Part
9017118M04
Nut, castle (6e5)
Diagram Reference: 37
Get Part
9149040030
Pin, cotter (663)
Diagram Reference: 38
Get Part
6CE4593020 (UR SDS 3 BLADE)
Sws2 w/sds (3x15-3/4 x13-t)
Diagram Reference: 39
Get Part
6CE45D7020 (UR SDS 3 BLADE)
Propeller (3X15-3/4"X14"-T)
Diagram Reference: 39
Get Part
6CE4597620 (UR SDS 3 BLADE)
Sws2 w/sds (3x15-3/4 x15-t)
Diagram Reference: 39
Get Part
6CE4593820 (UR SDS 3 BLADE)
Sws2 w/sds (3x15-1/2 x16 -t)
Diagram Reference: 39
Get Part
6CE4597820 (UR SDS 3 BLADE)
Sws2 w/sds (3x15-1/2 x 17-t)
Diagram Reference: 39
Get Part
6CE4593420 (UR SDS 3 BLADE)
Sws2 w/sds (3x15-1/4 x18 -t)
Diagram Reference: 39
Get Part
6CE4597020 (UR SDS 3 BLADE)
Sws2 w/sds (3x15-1/4 x19-t)
Diagram Reference: 39
Get Part
6CE4593220 (UR SDS 3 BLADE)
Sws2 w/sds (3x15 x20-t)
Diagram Reference: 39
Get Part
6CE4597220 (UR SDS 3 BLADE)
Sws2 w/sds (3x15 x21-t)
Diagram Reference: 39
Get Part
6CE4593620 (UR SDS 3 BLADE)
Sws2 w/sds (3x14-3/4 x22 -t)
Diagram Reference: 39
Get Part
6CE4597420 (UR SDS 3 BLADE)
Sws2 w/sds (3x14-3/4 x23-t)
Diagram Reference: 39
Get Part
6CE45D7220 (UR SDS 3 BLADE)
Propeller (3X13-3/4"X24"-T)
Diagram Reference: 39
Get Part
6CE45D7420 (UR SDS 3 BLADE)
Propeller (3X13-3/4"X25"-T)
Diagram Reference: 39
Get Part
6KA4597000 (UR SDS 3 BLADE HP)
Propeller (3X15-1/4"X18"-T)
Diagram Reference: 39
Get Part
6KA4597200 (UR SDS 3 BLADE HP)
Propeller (ss 3x15-1/4 x19 -t)
Diagram Reference: 39
Get Part
6KA4597400 (UR SDS 3 BLADE HP)
Propeller (ss 3x15 x20 -t)
Diagram Reference: 39
Get Part
6KA4597600 (UR SDS 3 BLADE HP)
Propeller (ss 3x15 x21 -t)
Diagram Reference: 39
Get Part
6CE45C8110
Damper rubber, propeller 1
Diagram Reference: 40
Get Part
6CE45B7020 (UR SDS 4 BLADE HS)
Sws hs4 sds (ss 4x15"x21"-t)
Diagram Reference: 41
Get Part
6CE45B7220 (UR SDS 4 BLADE HS)
Sws hs4 sds (ss 4x15"x22"-t)
Diagram Reference: 41
Get Part
6CE45B7420 (UR SDS 4 BLADE HS)
Sws hs4 sds (ss 4x15"x23"-t)
Diagram Reference: 41
Get Part
6ML45B7600 (UR SDS 4 BLADE)
-
Diagram Reference: 41
Get Part
6ML45B7800 (UR SDS 4 BLADE)
-
Diagram Reference: 41
Get Part
6ML45B8000 (UR SDS 4 BLADE)
-
Diagram Reference: 41
Get Part
6ML45B8200 (UR SDS 4 BLADE)
-
Diagram Reference: 41
Get Part
6ML45B8400 (UR SDS 4 BLADE)
-
Diagram Reference: 41
Get Part
6ML45B8600 (UR SDS 4 BLADE)
-
Diagram Reference: 41
Get Part
