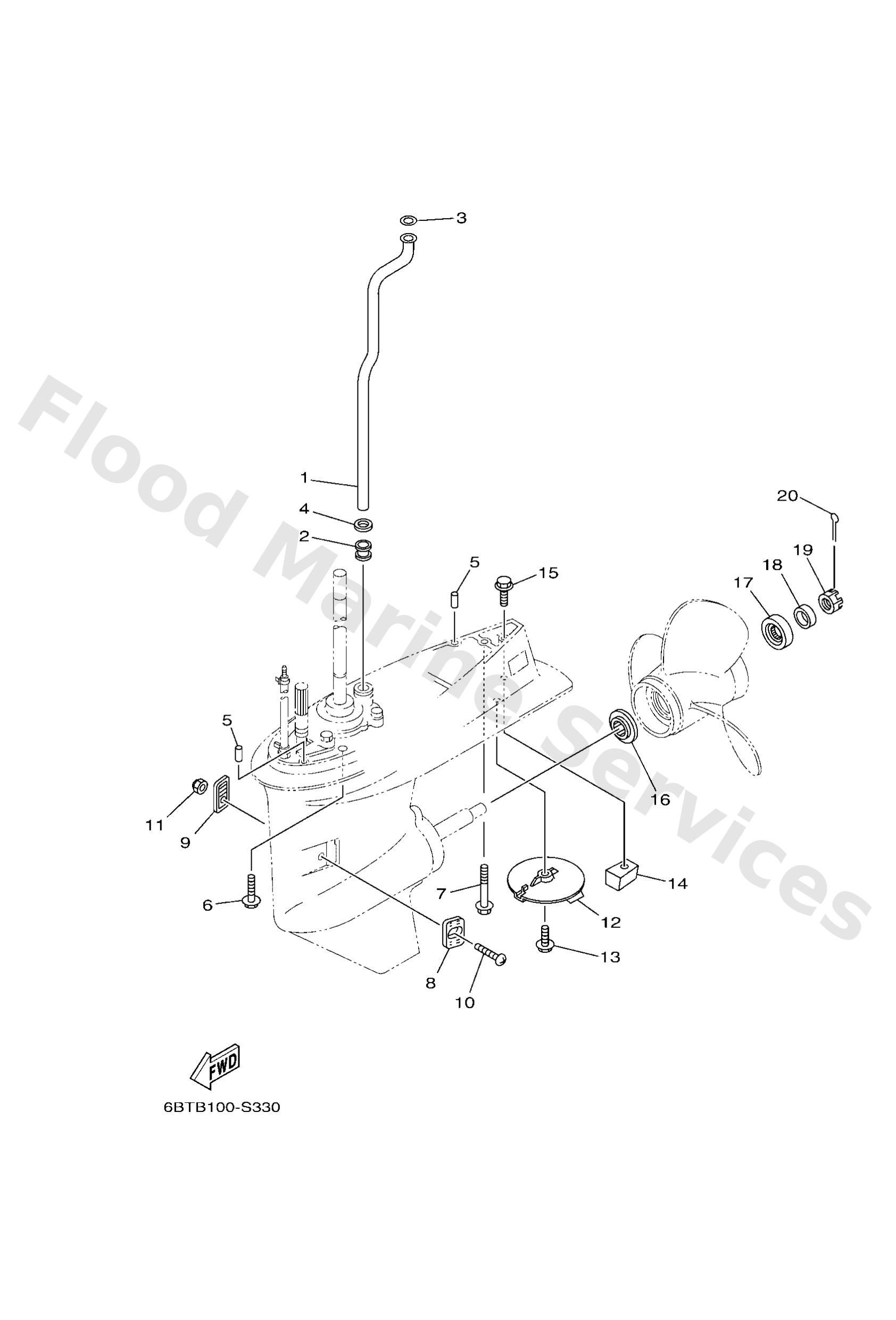

Parts List
Tube, water
Diagram Reference: 1
Tube, water 1
Diagram Reference: 1
Damper, water seal 3
Diagram Reference: 2
Washer, plate(663)
Diagram Reference: 3
Gasket
Diagram Reference: 4
Pin, dowel (614)
Diagram Reference: 5
Bolt, with washer
Diagram Reference: 6
Bolt, hexagon w/w deep recess
Diagram Reference: 7
Cover, water inlet
Diagram Reference: 8
Cover, water inlet
Diagram Reference: 9
Screw, countersunk
Diagram Reference: 10
Nut, hexagon (663)
Diagram Reference: 11
Tab-trim
Diagram Reference: 12
Bolt, hexagon w/w deep recess
Diagram Reference: 13
Anode
Diagram Reference: 14
Bolt, hexagon w/w deep recess
Diagram Reference: 15
Spacer
Diagram Reference: 16
Spacer 2
Diagram Reference: 17
Bush
Diagram Reference: 18
Nut, castle (663)
Diagram Reference: 19
Pin cotter
Diagram Reference: 20
