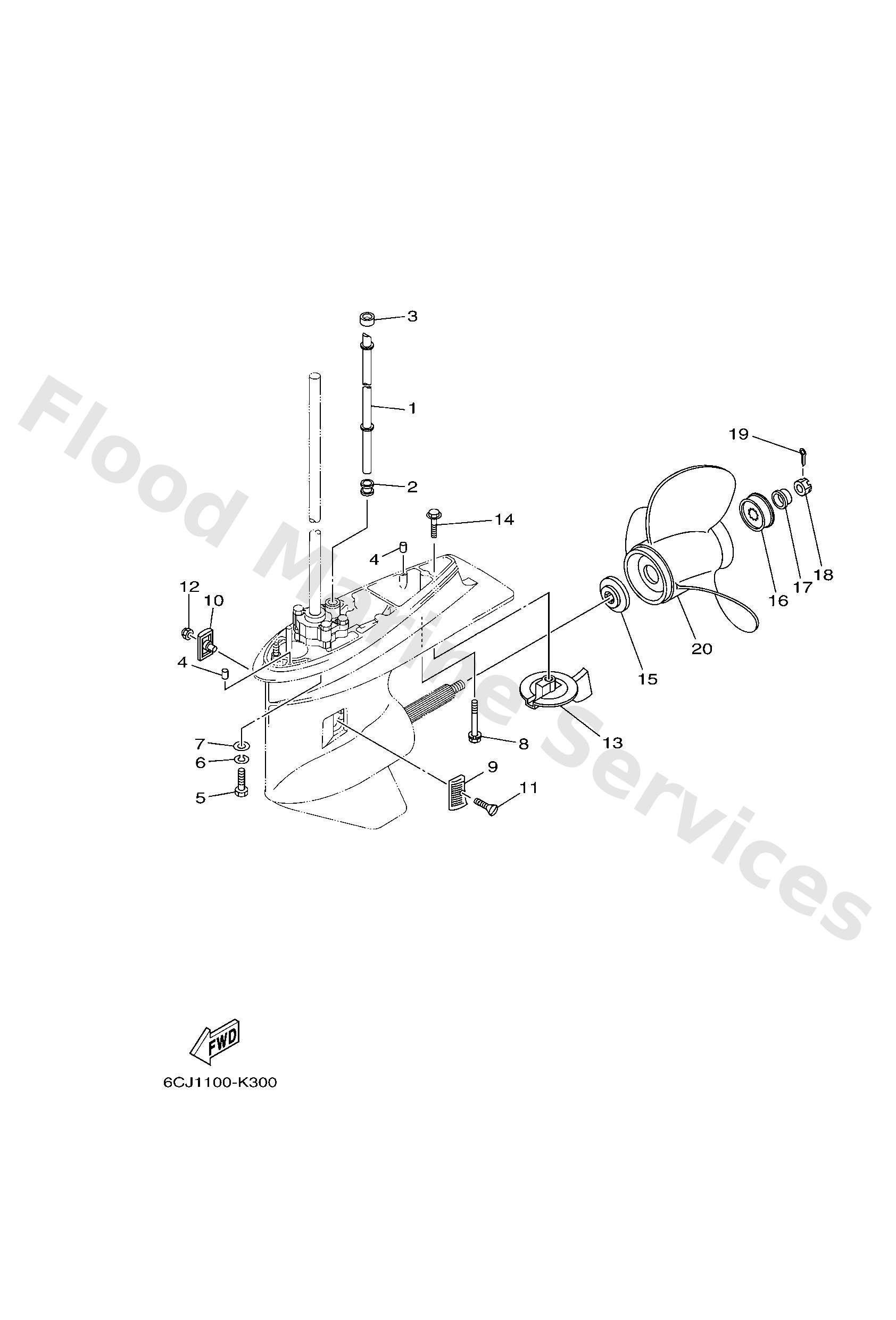

Parts List
Tube, water 1
Diagram Reference: 1
Damper, water seal 3
Diagram Reference: 2
Damper, water seal 2
Diagram Reference: 3
Pin, dowel (614)
Diagram Reference: 4
Bolt, hexagon deep recess
Diagram Reference: 5
Ybs67-10 washer, spring
Diagram Reference: 6
Washer, plate
Diagram Reference: 7
Bolt, with washer
Diagram Reference: 8
Cover, water inlet
Diagram Reference: 9
Cover, water inlet
Diagram Reference: 10
Screw, countersunk(692)
Diagram Reference: 11
Nut nylon (sus)(ex4)
Diagram Reference: 12
Tab-trim
Diagram Reference: 13
Bolt, hexagon (663)
Diagram Reference: 14
Spacer
Diagram Reference: 15
Spacer 2
Diagram Reference: 16
Bush
Diagram Reference: 17
Nut, castle (663)
Diagram Reference: 18
Pin, cotter (663)
Diagram Reference: 19
Propeller (3x12-5/8"x21"-k)
Diagram Reference: 20
Propeller (3x13-1/4x17-k)
Diagram Reference: 20
Propeller (3x13-1/2x15-k)
Diagram Reference: 20
Propeller (3x13-5/8"x13"-k)
Diagram Reference: 20
Propeller (3x13"x23"-k)
Diagram Reference: 20
Propeller (3x14"x11"-k)
Diagram Reference: 20
Propeller (3x13"x25"-k)
Diagram Reference: 20
Propeller (3x13x19-k)
Diagram Reference: 20
Propeller (3X13-1/2"X19"-K)
Diagram Reference: 20
Propeller (3X13-1/2"X17"-K)
Diagram Reference: 20
Propeller (3x13-1/2"x14"-k)
Diagram Reference: 20
Propeller (3x13x17)
Diagram Reference: 20
Propeller (3x13-1/2"x16"-k)
Diagram Reference: 20
Propeller (ss 3x13"x25"-k)
Diagram Reference: 20
Propeller (3x13"x23"-k)
Diagram Reference: 20
Propeller (3x13"x21"-k)
Diagram Reference: 20
Propeller (3x13"x19"-k)
Diagram Reference: 20
Propeller (3x13-5/8"x14"-k)
Diagram Reference: 20
