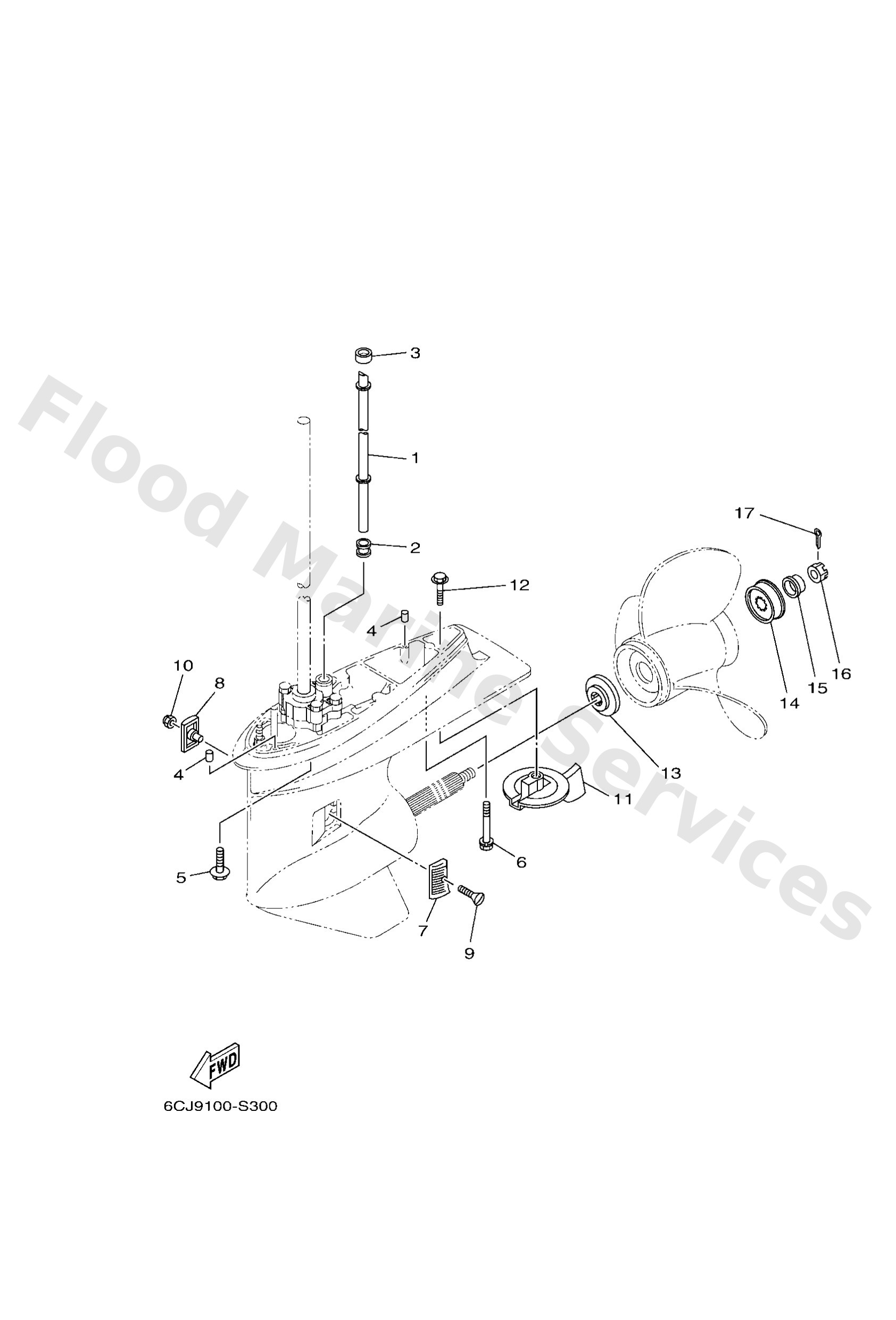

Diagram: LOWER CASING & DRIVE 2
Parts List
Tube, water 1
Diagram Reference: 1
Tube, water 1
Diagram Reference: 1
Damper, water seal 3
Diagram Reference: 2
Damper, water seal 2
Diagram Reference: 3
Pin, dowel (614)
Diagram Reference: 4
Bolt, with washer
Diagram Reference: 5
Bolt, with washer
Diagram Reference: 6
Cover, water inlet
Diagram Reference: 7
Cover, water inlet
Diagram Reference: 8
Screw, countersunk(692)
Diagram Reference: 9
Nut nylon (sus)(ex4)
Diagram Reference: 10
Tab-trim
Diagram Reference: 11
Bolt, hexagon (663)
Diagram Reference: 12
Spacer
Diagram Reference: 13
Spacer 2
Diagram Reference: 14
Bush
Diagram Reference: 15
Nut, castle (663)
Diagram Reference: 16
Pin cotter
Diagram Reference: 17
