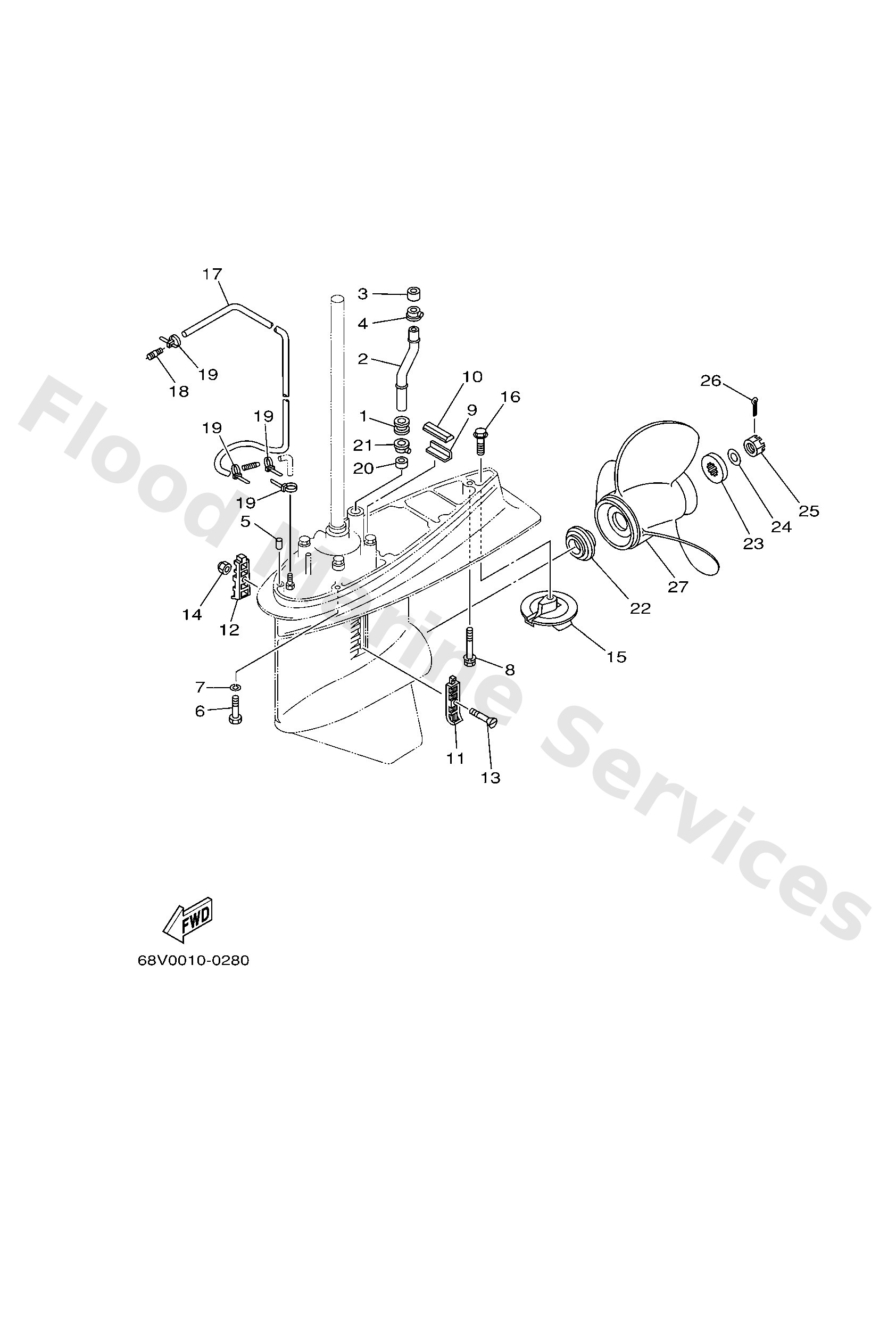

Parts List
Damper, water seal 2
Diagram Reference: 1
Tube, water 1
Diagram Reference: 2
Tube, water 1
Diagram Reference: 2
Damper, water seal 1
Diagram Reference: 3
Cover, water pump housing
Diagram Reference: 4
Pin, dowel b (6e5)
Diagram Reference: 5
Bolt(64d)
Diagram Reference: 6
Ybs67-10 washer, spring
Diagram Reference: 7
Bolt, with washer
Diagram Reference: 8
Guide, seal damper
Diagram Reference: 9
Damper, seal 2
Diagram Reference: 10
Cover, water inlet
Diagram Reference: 11
Cover, water inlet
Diagram Reference: 12
Screw, countersunk
Diagram Reference: 13
Nut nylon (sus)(ex4)
Diagram Reference: 14
Trim tab
Diagram Reference: 15
Bolt, hexagon (663)
Diagram Reference: 16
Hose (l1700)
Diagram Reference: 17
End, nipple
Diagram Reference: 18
Clamp
Diagram Reference: 19
Spacer 1
Diagram Reference: 22
Spacer 2
Diagram Reference: 23
Washer (6e5)
Diagram Reference: 24
Nut, castle (6e5)
Diagram Reference: 25
Pin, cotter (663)
Diagram Reference: 26
Propeller (3x12-5/8"x21"-k)
Diagram Reference: 27
Propeller (3x13-1/4x17-k)
Diagram Reference: 27
Propeller (3x13-1/2x15-k)
Diagram Reference: 27
Propeller (3x13-5/8"x13"-k)
Diagram Reference: 27
Propeller (3x13"x23"-k)
Diagram Reference: 27
Propeller (3x14"x11"-k)
Diagram Reference: 27
Propeller (3x13"x25"-k)
Diagram Reference: 27
Propeller (3x13x17)
Diagram Reference: 27
Propeller (3x13-1/2"x14"-k)
Diagram Reference: 27
Propeller (3x13"x19"-k)
Diagram Reference: 27
Propeller (3x13"x21"-k)
Diagram Reference: 27
Propeller (3x13"x23"-k)
Diagram Reference: 27
Propeller (ss 3x13"x25"-k)
Diagram Reference: 27
Propeller (3x13-1/2"x16"-k)
Diagram Reference: 27
Propeller (3x13x19-k)
Diagram Reference: 27
