Parts List
Damper, Water Seal 1

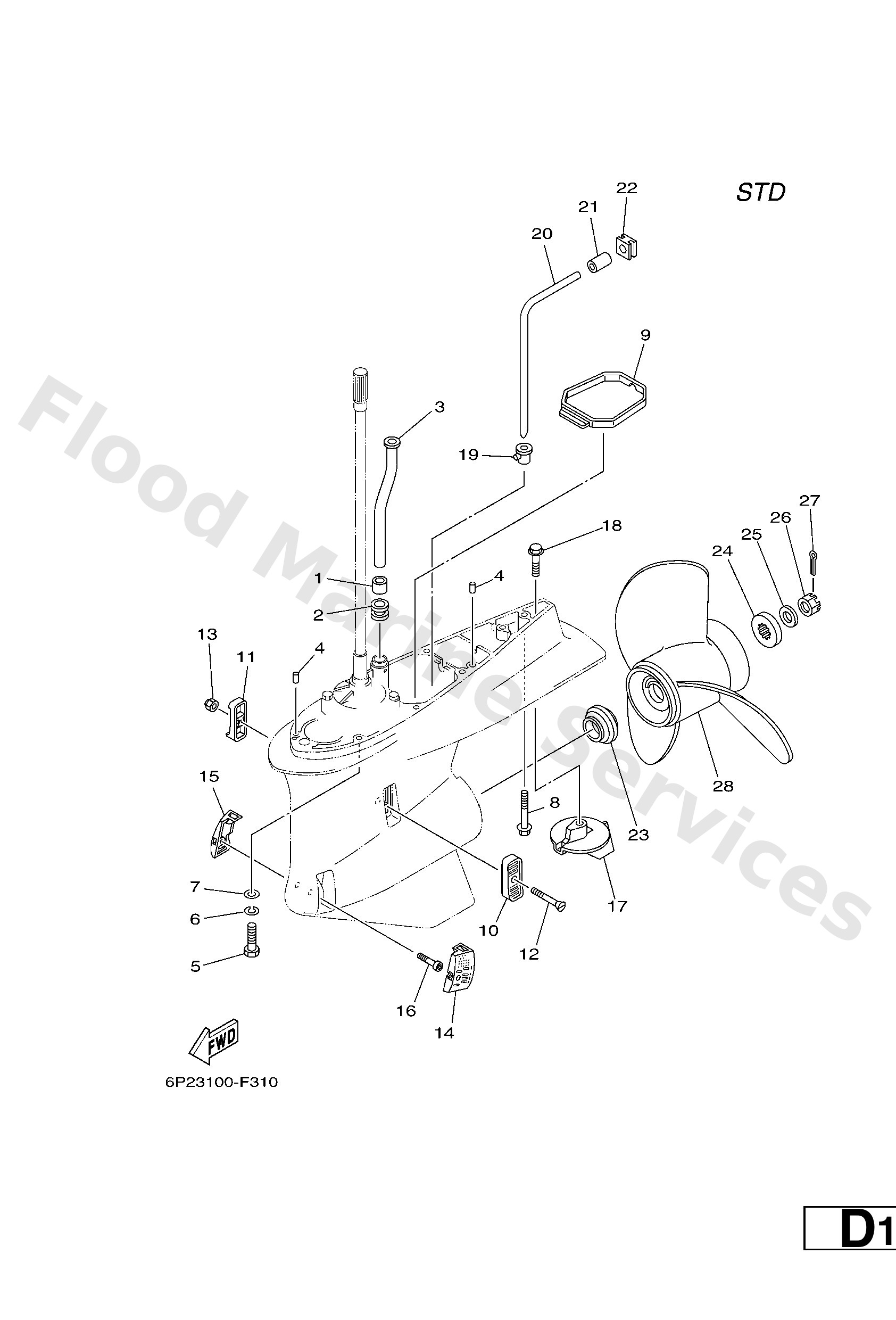

Diagram Reference: 1
Damper, Water Seal 2
Diagram Reference: 2
Tube, water 1
Diagram Reference: 3
Tube, Water
Diagram Reference: 3
Pin, Dowel
Diagram Reference: 4
Bolt
Diagram Reference: 5
Bolt, With Washer
Diagram Reference: 8
Bolt, With Washer
Diagram Reference: 8
Damper, seal
Diagram Reference: 9
Cover, water inlet 1
Diagram Reference: 10
Cover, water inlet 2
Diagram Reference: 11
Screw, Countersunk
Diagram Reference: 12
Nut, Nylon
Diagram Reference: 13
Cover, water inlet 3
Diagram Reference: 14
Cover, water inlet 4
Diagram Reference: 15
Bolt, hexagon socket head
Diagram Reference: 16
Bolt, Flange
Diagram Reference: 18
Damper, water seal 3
Diagram Reference: 19
Tube, water 2
Diagram Reference: 20
Damper, water seal 1
Diagram Reference: 21
Damper, water seal 2
Diagram Reference: 22
Spacer
Diagram Reference: 23
Washer
Diagram Reference: 25
Nut, Castle
Diagram Reference: 26
Pin. Cotter
Diagram Reference: 27
Propeller (3X15-1/2"X17"-T)
Diagram Reference: 28
Propeller (3X15"X21"-T)
Diagram Reference: 28
Propeller (3X15-1/4"X19"-T)
Diagram Reference: 28
Propeller (3X15–1/4”X17”–M)
Diagram Reference: 28
Propeller (3X14–1/2”X15”–M)
Diagram Reference: 28
Propeller (3X14–1/2”X23”–M)
Diagram Reference: 28
Propeller (3X14–7/8”X21”–M)
Diagram Reference: 28
Propeller (3X15-1/4"X19"-M)
Diagram Reference: 28
Propeller (3X15”X17”–T)
Diagram Reference: 28
Propeller (3X14–1/2”X19”–T)
Diagram Reference: 28
Propeller (3X14–1/2”X21”–T)
Diagram Reference: 28
Propeller (3X13–3/4”X17”–M2)
Diagram Reference: 28
Propeller (3X13–3/4”X19”–M2)
Diagram Reference: 28
Propeller (3X13–3/4”X21”–M)
Diagram Reference: 28
Propeller (3X15–1/4”X15”–M)
Diagram Reference: 28
