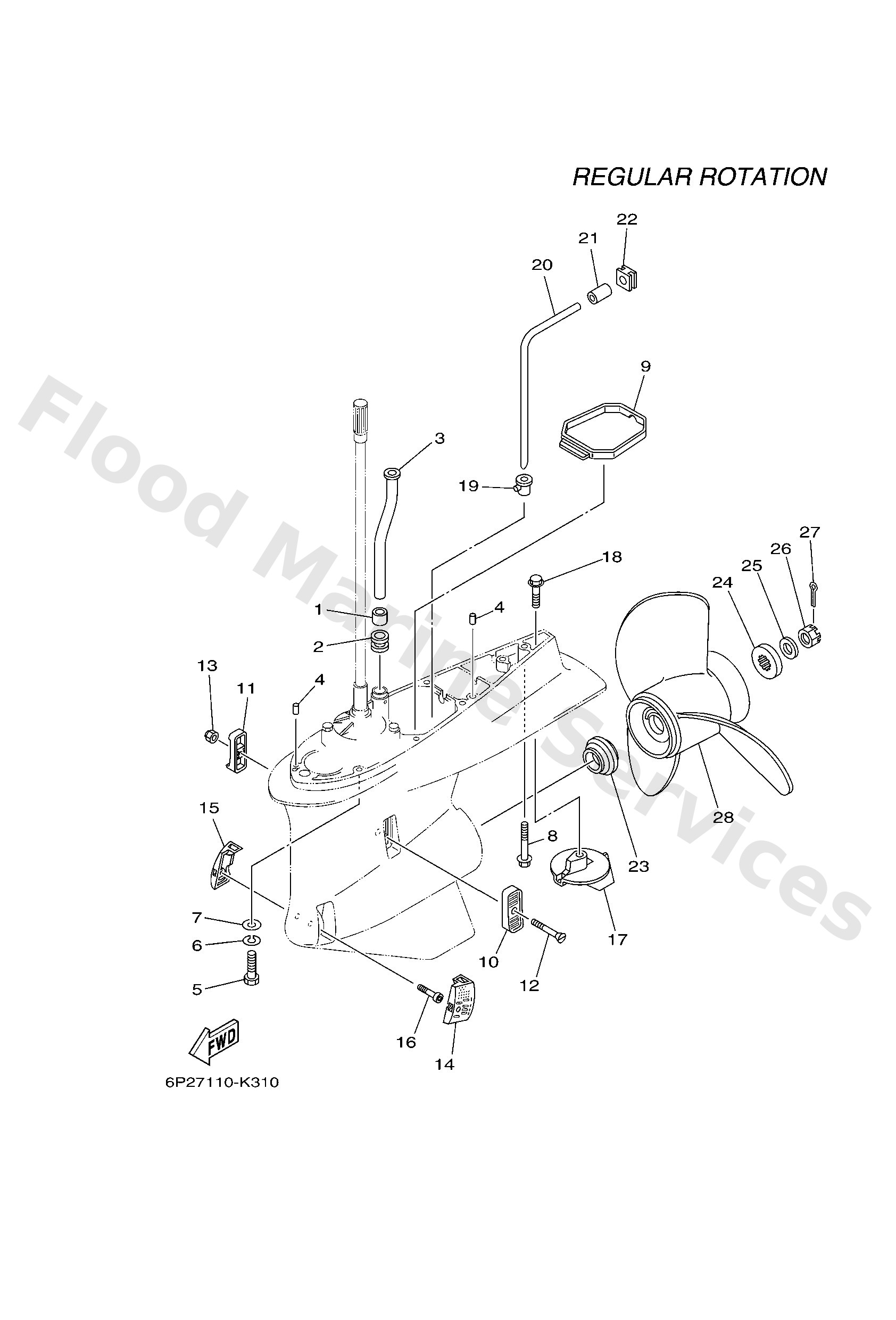

Parts List
Damper, water seal 1
Diagram Reference: 1
Damper, water seal 2
Diagram Reference: 2
Tube, water 1
Diagram Reference: 3
Tube, water 1
Diagram Reference: 3
Pin, dowel b (6e5)
Diagram Reference: 4
Bolt(64d)
Diagram Reference: 5
Ybs67-10 washer, spring
Diagram Reference: 6
Washer, plate
Diagram Reference: 7
Bolt, with washer
Diagram Reference: 8
Bolt, with washer
Diagram Reference: 8
Damper, seal
Diagram Reference: 9
Cover, water inlet 1
Diagram Reference: 10
Cover, water inlet 2
Diagram Reference: 11
Screw, countersunk
Diagram Reference: 12
Nut nylon (sus)(ex4)
Diagram Reference: 13
Cover, water inlet 3
Diagram Reference: 14
Cover, water inlet 4
Diagram Reference: 15
Bolt, hexagon socket head
Diagram Reference: 16
Anode
Diagram Reference: 17
Bolt, hexagon (663)
Diagram Reference: 18
Damper, water seal 3
Diagram Reference: 19
Tube, water 2
Diagram Reference: 20
Damper, water seal 1
Diagram Reference: 21
Damper, water seal 2
Diagram Reference: 22
Spacer 1
Diagram Reference: 23
Spacer 2
Diagram Reference: 24
Washer (6e5)
Diagram Reference: 25
Nut, castle (6e5)
Diagram Reference: 26
Pin, cotter (663)
Diagram Reference: 27
Propeller (4X15"X23"-T)
Diagram Reference: 28
Propeller (4X15"X22"-T)
Diagram Reference: 28
Propeller (4X15"X21"-T)
Diagram Reference: 28
Propeller (3X15-1/2"X17"-T)
Diagram Reference: 28
Propeller (3X15"X21"-T)
Diagram Reference: 28
Propeller (3X15-1/4"X19"-T)
Diagram Reference: 28
Propeller (3X15–1/4”X17”–M)
Diagram Reference: 28
Propeller (3X14–1/2”X15”–M)
Diagram Reference: 28
Propeller (3X14–1/2”X23”–M)
Diagram Reference: 28
Propeller (3X14–7/8”X21”–M)
Diagram Reference: 28
Propeller (3X15-1/4"X19"-M)
Diagram Reference: 28
Propeller (3x15"x17"-t)
Diagram Reference: 28
Propeller (3x14-1/2"x19"-t)
Diagram Reference: 28
Propeller (3x14-1/2"x21"-t)
Diagram Reference: 28
Propeller (3x13-3/4"x17"-m2)
Diagram Reference: 28
Propeller (3x13-3/4"x19"-m2)
Diagram Reference: 28
Propeller (3x13-3/4 x21 -m)
Diagram Reference: 28
Propeller (3x15-1/4 x15 -m)
Diagram Reference: 28
