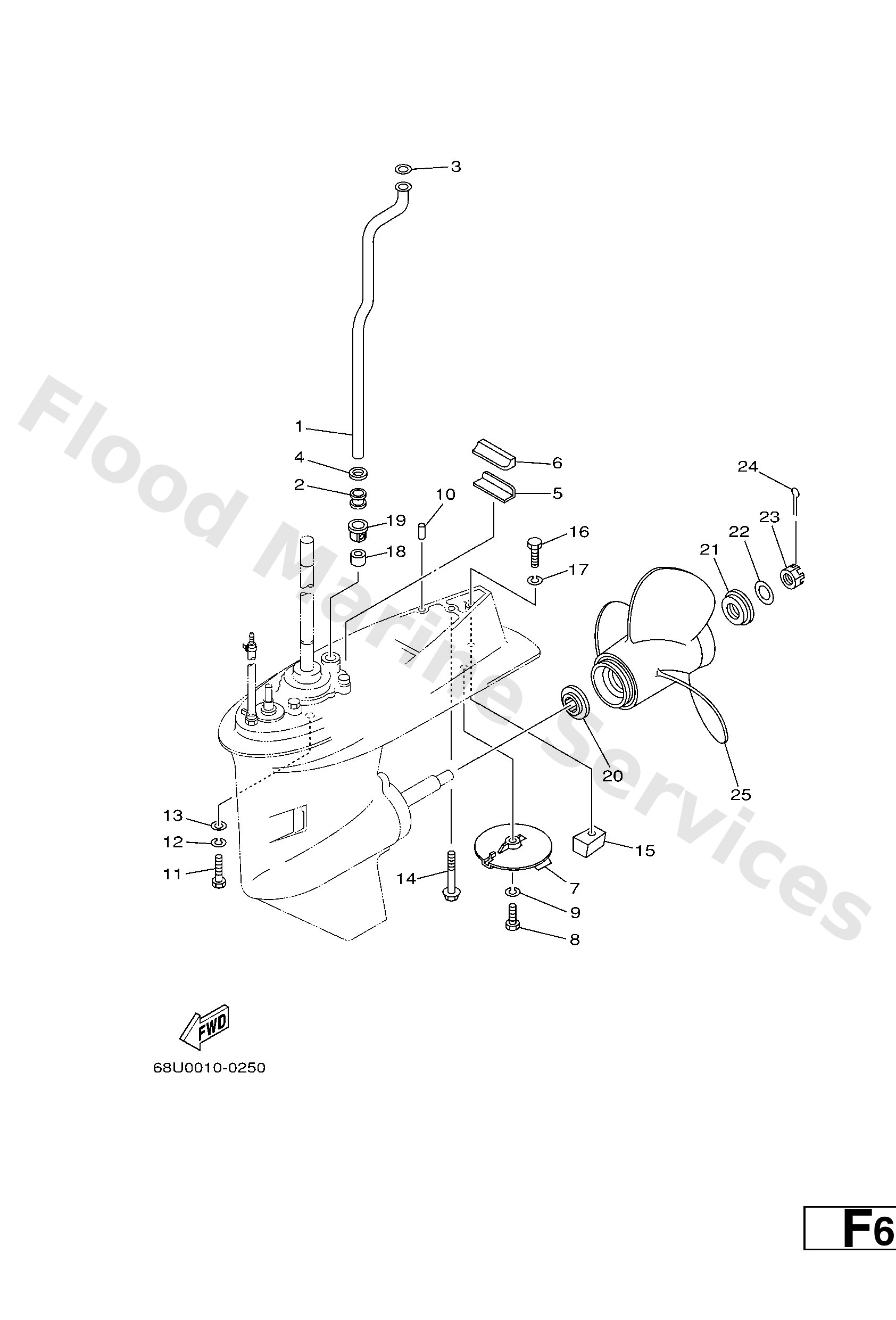

Parts List
Tube, water
Diagram Reference: 1
Damper, water seal 3
Diagram Reference: 2
Washer, plate(663)
Diagram Reference: 3
Gasket
Diagram Reference: 4
Guide, seal damper
Diagram Reference: 5
Damper, seal
Diagram Reference: 6
Tab-trim
Diagram Reference: 7
Bolt (62g)
Diagram Reference: 8
Ybs67-8 washer, spring
Diagram Reference: 9
Pin, dowel (614)
Diagram Reference: 10
Bolt, hexagon deep recess
Diagram Reference: 11
Ybs67-10 washer, spring
Diagram Reference: 12
Washer, plate
Diagram Reference: 13
Bolt, with washer
Diagram Reference: 14
Anode
Diagram Reference: 15
Bolt(70w)
Diagram Reference: 16
Damper, water seal 2
Diagram Reference: 18
Cover, water pump housing
Diagram Reference: 19
Spacer
Diagram Reference: 20
Spacer 2
Diagram Reference: 21
958-58204-00 washer,plain
Diagram Reference: 22
Nut, castle (663)
Diagram Reference: 23
Pin cotter
Diagram Reference: 24
Propeller (3x12-1/4 x9 -g)
Diagram Reference: 25
