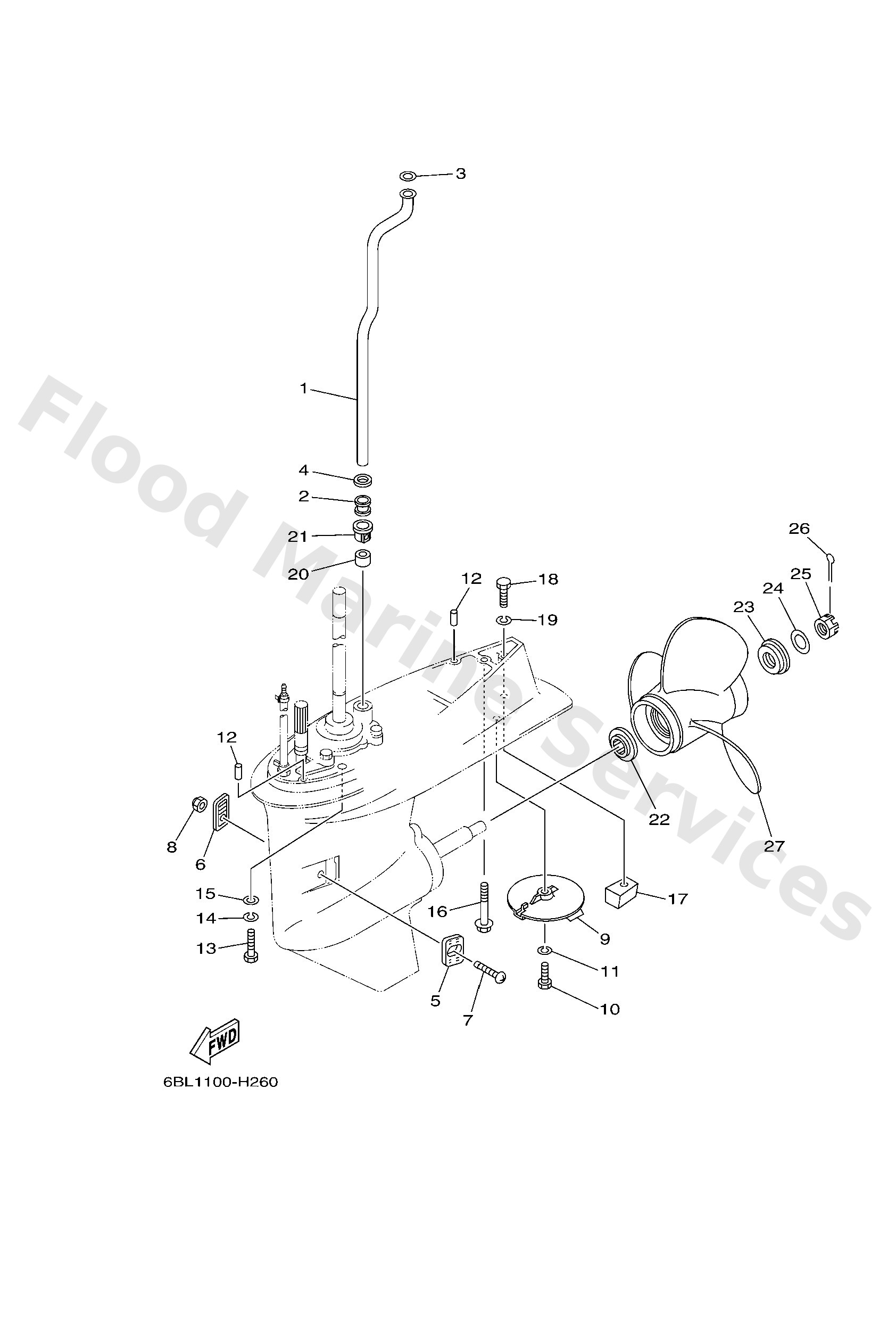

Parts List
Tube, water
Diagram Reference: 1
Damper, water seal 3
Diagram Reference: 2
Washer, plate(663)
Diagram Reference: 3
Gasket
Diagram Reference: 4
Cover, water inlet
Diagram Reference: 5
Cover, water inlet
Diagram Reference: 6
Screw, countersunk
Diagram Reference: 7
Nut, hexagon (663)
Diagram Reference: 8
Tab-trim
Diagram Reference: 9
Bolt (62g)
Diagram Reference: 10
Ybs67-8 washer, spring
Diagram Reference: 11
Pin, dowel (614)
Diagram Reference: 12
Bolt, hexagon deep recess
Diagram Reference: 13
Ybs67-10 washer, spring
Diagram Reference: 14
Washer, plate
Diagram Reference: 15
Bolt, with washer
Diagram Reference: 16
Anode
Diagram Reference: 17
Bolt(70w)
Diagram Reference: 18
Damper, water seal 2
Diagram Reference: 20
Cover, water pump housing
Diagram Reference: 21
Spacer
Diagram Reference: 22
Spacer 2
Diagram Reference: 23
958-58204-00 washer,plain
Diagram Reference: 24
Nut, castle (663)
Diagram Reference: 25
Pin cotter
Diagram Reference: 26
Propeller (3x12-1/4 x9 -g)
Diagram Reference: 27
