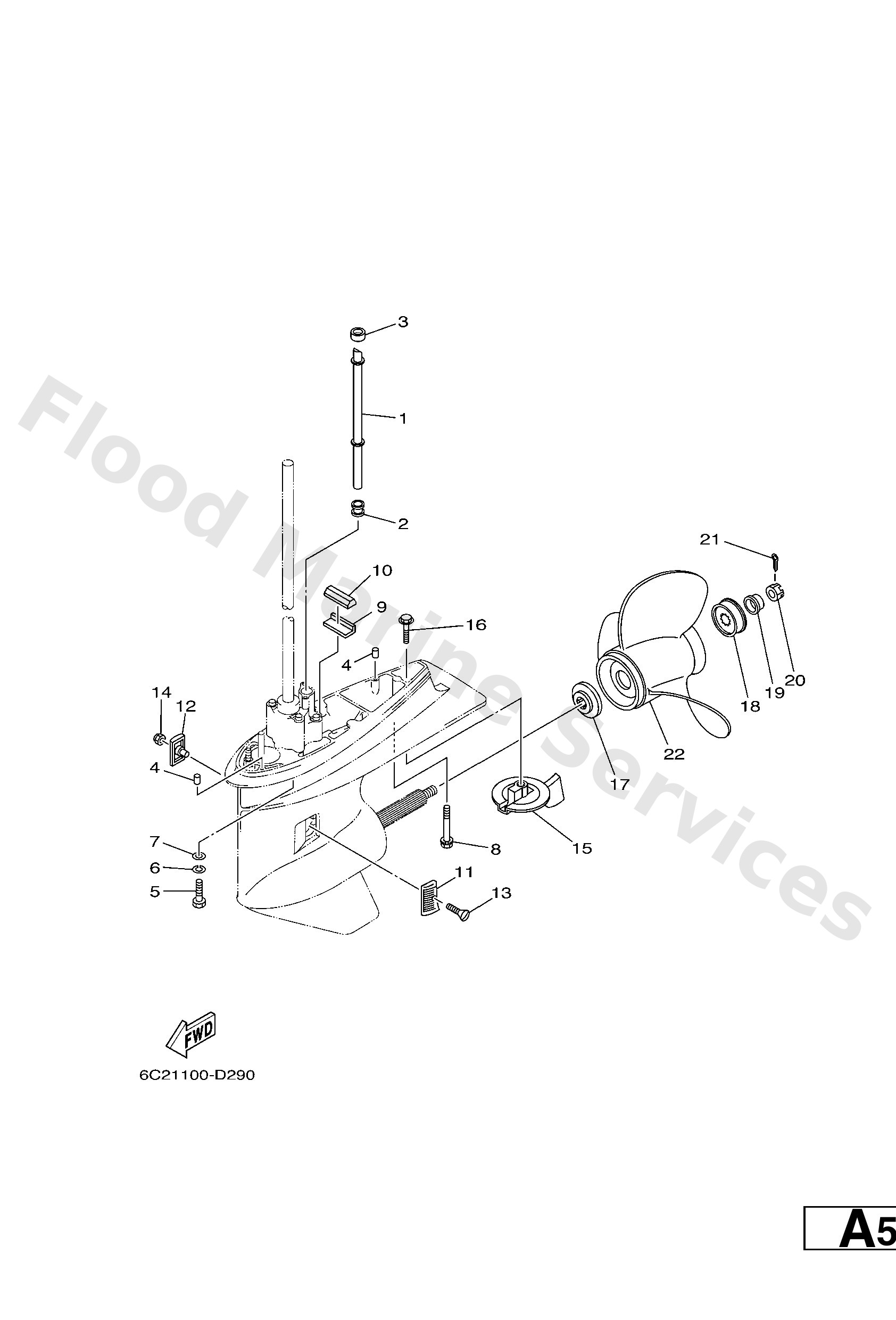

Diagram: LOWER CASING & DRIVE 2

Diagram

Parts List

6C54436100 (L(20.7"))
Tube, water 1
Diagram Reference: 1
Get Part
6634436700
Damper, water seal 3
Diagram Reference: 2
Get Part
6634436600
Damper, water seal 2
Diagram Reference: 3
Get Part
9360612019
Pin, dowel (614)
Diagram Reference: 4
Get Part
9707510040 (L(20.7"))
Bolt, hexagon deep recess
Diagram Reference: 5
Get Part
9299510100 (L(20.7"))
Ybs67-10 washer, spring
Diagram Reference: 6
Get Part
9299510600 (L(20.7"))
Washer, plate
Diagram Reference: 7
Get Part
9011908M84 (L(20.7"))
Bolt, with washer
Diagram Reference: 8
Get Part
663453760094
Guide, seal damper
Diagram Reference: 9
Get Part
6884537500
Damper, seal 2
Diagram Reference: 10
Get Part
6H14521400
Cover, water inlet
Diagram Reference: 11
Get Part
6H14521500
Cover, water inlet
Diagram Reference: 12
Get Part
9015105M00
Screw, countersunk(692)
Diagram Reference: 13
Get Part
9018505002
Nut nylon (sus)(ex4)
Diagram Reference: 14
Get Part
67F4537100
Tab-trim
Diagram Reference: 15
Get Part
9010510M67
Bolt, hexagon (663)
Diagram Reference: 16
Get Part
6884598701
Spacer
Diagram Reference: 17
Get Part
67F4599700
Spacer 2
Diagram Reference: 18
Get Part
9038925M00
Bush
Diagram Reference: 19
Get Part
9017116011
Nut, castle (663)
Diagram Reference: 20
Get Part
9149040025
Pin, cotter (663)
Diagram Reference: 21
Get Part
68S4594100EL (UR)
Propeller (3x14 x11 -k)
Diagram Reference: 22
Get Part
6E54595400EL (UR)
Propeller (3x14"x11"-k)
Diagram Reference: 22
Get Part
