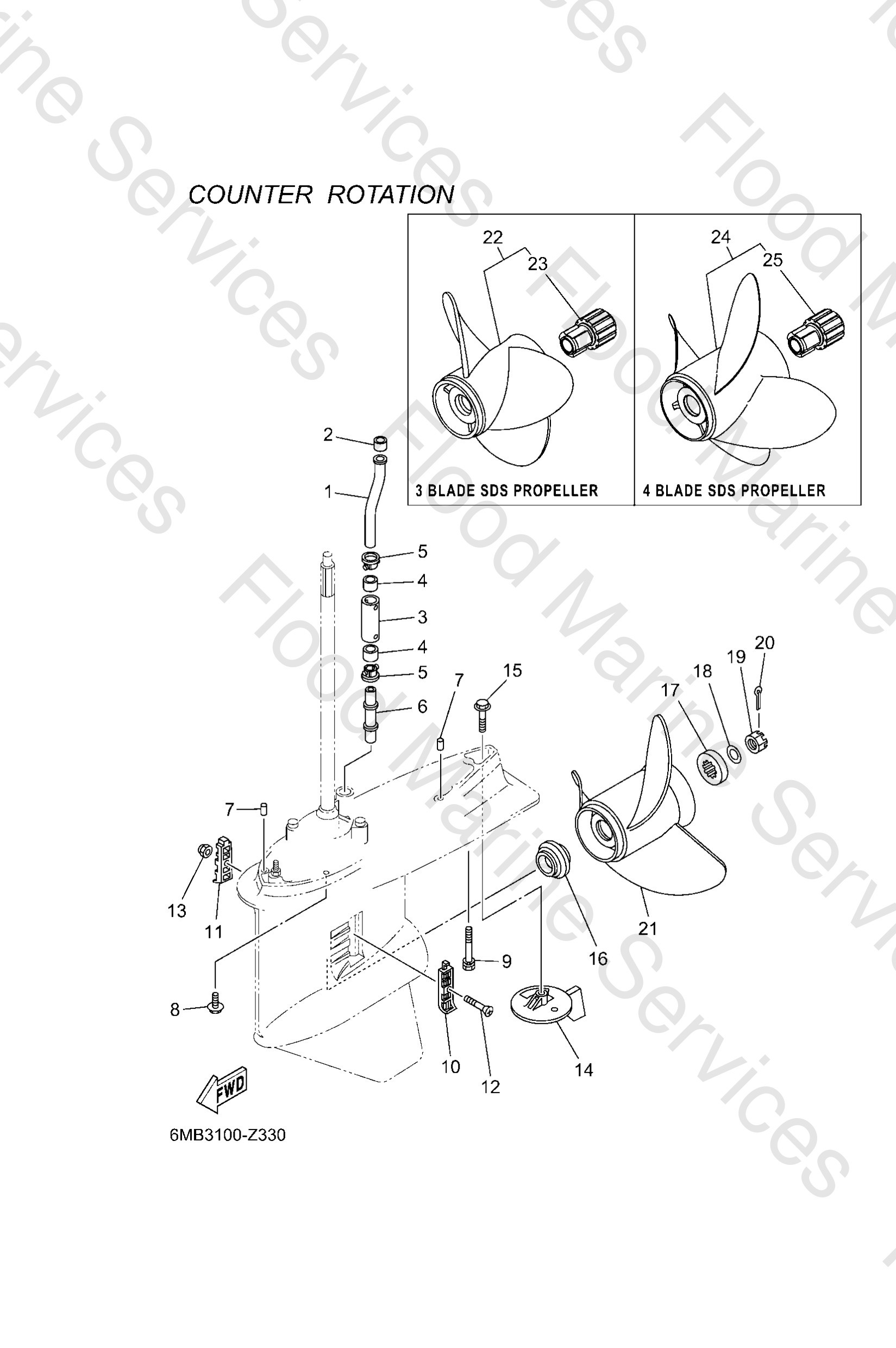

Diagram: LOWER CASING & DRIVE 2

Diagram

Parts List

63P4436100
Tube, water
Diagram Reference: 1
Get Part
6E54436501 (X(25.2"))
Damper, water seal 1
Diagram Reference: 4
Get Part
63P4436200 (X(25.2"))
Tube, water 2
Diagram Reference: 3
Get Part
6E54431200 (X(25.2"))
Cover, water pump housing
Diagram Reference: 5
Get Part
63P4436300 (X(25.2"))
Tube, water 3
Diagram Reference: 6
Get Part
9360816M16
Pin, dowel(6t4)
Diagram Reference: 7
Get Part
97E9510645
Bolt, hexagon w/w deep recess
Diagram Reference: 8
Get Part
9011910008 (X(25.2"))
Bolt, with washer
Diagram Reference: 9
Get Part
9011910072 (L(20.3"))
Bolt, with washer
Diagram Reference: 9
Get Part
6J94521400
Cover, water inlet
Diagram Reference: 10
Get Part
6J94521500
Cover, water inlet
Diagram Reference: 11
Get Part
9015205M08
Screw, countersunk
Diagram Reference: 12
Get Part
9018505002
Nut nylon (sus)(ex4)
Diagram Reference: 13
Get Part
6K14537102
Tab-trim
Diagram Reference: 14
Get Part
9010510M00
Bolt, hexagon (663)
Diagram Reference: 15
Get Part
6E54598701
Spacer 1
Diagram Reference: 16
Get Part
6884599701
Spacer 2
Diagram Reference: 17
Get Part
9299018200
Washer (6e5)
Diagram Reference: 18
Get Part
9017118M04
Nut, castle (6e5)
Diagram Reference: 19
Get Part
9149040030
Pin, cotter (663)
Diagram Reference: 20
Get Part
6K14597600 (UR)
Propeller (3x13-3/8"x23"-ml)
Diagram Reference: 21
Get Part
6K14597201 (UR)
Propeller (3x13-3/4"x21"-ml)
Diagram Reference: 21
Get Part
6K14597402 (UR)
Propeller (3x13-3/4"x19"-ml1)
Diagram Reference: 21
Get Part
6K14594500 (UR)
Propeller (3x14 x19 -ml)
Diagram Reference: 21
Get Part
6K14594700 (UR)
Propeller (3x14-1/2 x17 -ml)
Diagram Reference: 21
Get Part
6K14597802 (UR)
Propeller (3x13-3/4"x17"-ml1)
Diagram Reference: 21
Get Part
60J4597800 (UR SDS 3 BLADE)
Propeller (3X14-1/4"X22"-Ml)
Diagram Reference: 22
Get Part
6CF45D7420 (UR SDS 3 BLADE)
Propeller (3X14-3/4"X25"-Tl)
Diagram Reference: 22
Get Part
6CF45D7220 (UR SDS 3 BLADE)
Propeller (3X14-3/4"X24"-Tl)
Diagram Reference: 22
Get Part
6CF4597420 (UR SDS 3 BLADE)
Sws2 w/sds (3x14-3/4 x23-tl)
Diagram Reference: 22
Get Part
6CF4593620 (UR SDS 3 BLADE)
Sws2 w/sds (3x14-3/4 x22 -tl)
Diagram Reference: 22
Get Part
6CF4597220 (UR SDS 3 BLADE)
Sws2 w/sds (3x15 x21-tl)
Diagram Reference: 22
Get Part
6CF4593220 (UR SDS 3 BLADE)
Sws2 w/sds (3x15 x20-tl)
Diagram Reference: 22
Get Part
6CF4597020 (UR SDS 3 BLADE)
Sws2 w/sds (3x15-1/4 x19-tl)
Diagram Reference: 22
Get Part
6CF4593420 (UR SDS 3 BLADE)
Sws2 w/sds (3x15-1/4 x18 -tl)
Diagram Reference: 22
Get Part
60J4597600 (UR SDS 3 BLADE)
Propeller (3X14-1/4"X20"-Ml)
Diagram Reference: 22
Get Part
60J4597400 (UR SDS 3 BLADE)
Propeller (3X14-1/4"X18"-Ml)
Diagram Reference: 22
Get Part
60J4597200 (UR SDS 3 BLADE)
Propeller (3x14-1/4 x16 -ml)
Diagram Reference: 22
Get Part
60J4597000 (UR SDS 3 BLADE)
Propeller (3X14-1/4"X14"-Ml)
Diagram Reference: 22
Get Part
68G4597620 (UR SDS 3 BLADE)
Reliance sds (3x13-3/4"x21"-ml
Diagram Reference: 22
Get Part
68G4597420 (UR SDS 3 BLADE)
Reliance sds (3x13-3/4"x19"-ml
Diagram Reference: 22
Get Part
68G4597820 (UR SDS 3 BLADE)
Reliance sds (3x14-1/4"x18"-ml
Diagram Reference: 22
Get Part
68G4597220 (UR SDS 3 BLADE)
Reliance sds (3x14-1/4"x17"-ml
Diagram Reference: 22
Get Part
68G4597020 (UR SDS 3 BLADE)
Reliance sds (3x14-1/2"x15" ml
Diagram Reference: 22
Get Part
68G4593020 (UR SDS 3 BLADE)
Reliance sds (3x14-1/2"x14"-ml
Diagram Reference: 22
Get Part
6CE45C8110
Damper rubber, propeller 1
Diagram Reference: 23
Get Part
6CF45B7020 (UR SDS 4 BLADE)
Sws hs4 sds (ss 4x15"x21"-tl)
Diagram Reference: 24
Get Part
6CF45B7220 (UR SDS 4 BLADE)
Sws hs4 sds (ss 4x15"x22"-tl)
Diagram Reference: 24
Get Part
6CF45B7420 (UR SDS 4 BLADE)
Sws hs4 sds (ss 4x15"x23"-tl)
Diagram Reference: 24
Get Part
