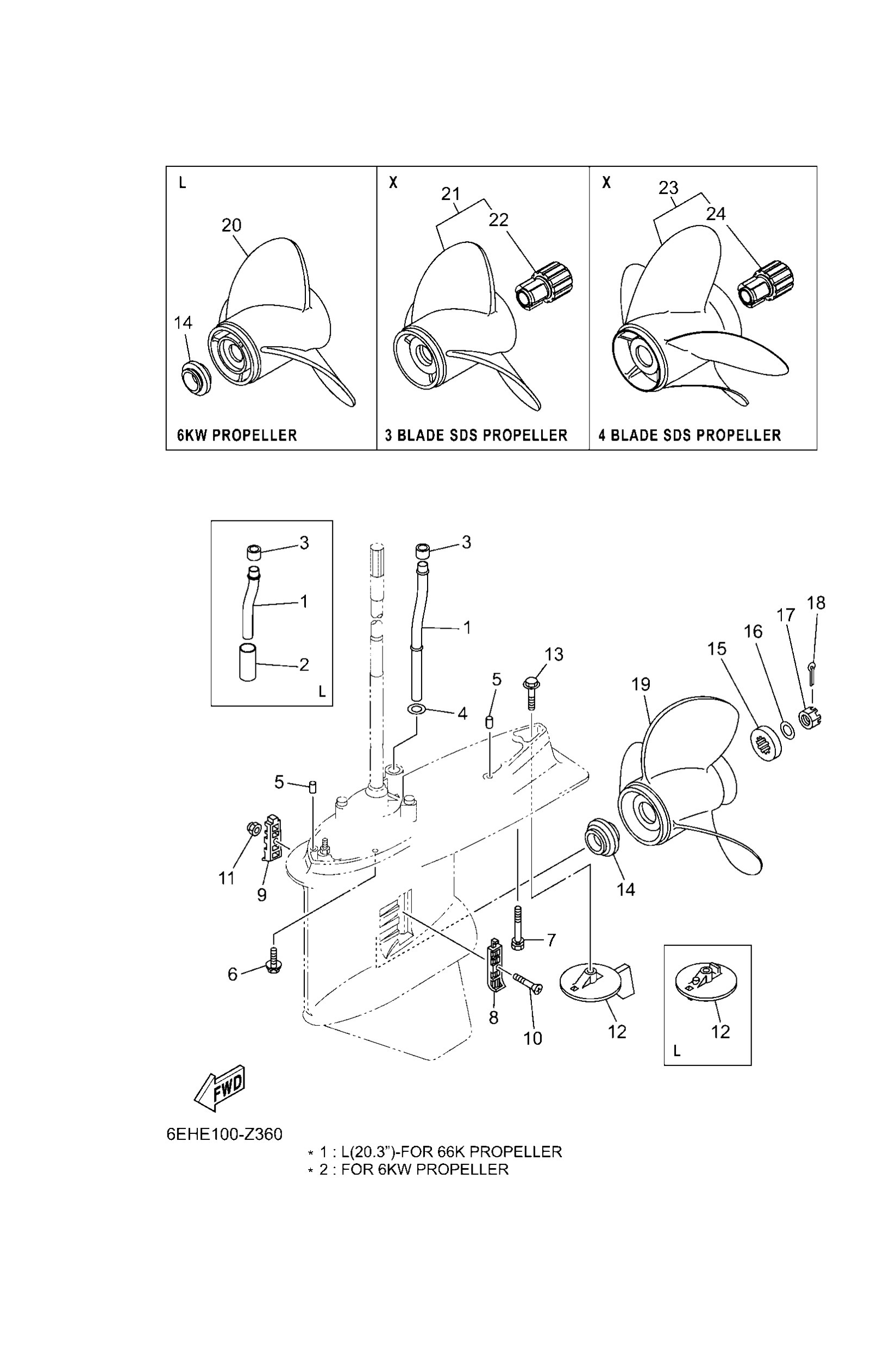

Diagram: LOWER CASING & DRIVE 2

Diagram

Parts List

6DA4436110 (L(20.3"))
Tube, water 1
Diagram Reference: 1
Get Part
6DA4436100 (X(25.3"))
Tube, water 1
Diagram Reference: 1
Get Part
9044523002 (L(20.3"))
Hose
Diagram Reference: 2
Get Part
6E54436501
Damper, water seal 1
Diagram Reference: 3
Get Part
9020216061 (X(25.3"))
Washer, plate(663)
Diagram Reference: 4
Get Part
9360816M16
Pin, dowel(6t4)
Diagram Reference: 5
Get Part
97E9510645
Bolt, hexagon w/w deep recess
Diagram Reference: 6
Get Part
9011910072
Bolt, with washer
Diagram Reference: 7
Get Part
6J94521400
Cover, water inlet
Diagram Reference: 8
Get Part
6J94521500
Cover, water inlet
Diagram Reference: 9
Get Part
9015205M08
Screw, countersunk
Diagram Reference: 10
Get Part
9018505002
Nut nylon (sus)(ex4)
Diagram Reference: 11
Get Part
6J94537101 (X(25.3"))
Tab-trim
Diagram Reference: 12
Get Part
6CE4537300 (L(20.3"))
Anode
Diagram Reference: 12
Get Part
9010510M00
Bolt, hexagon (663)
Diagram Reference: 13
Get Part
6E54598701 (X(25.3"),*1)
Spacer 1
Diagram Reference: 14
Get Part
6KW4598700 (L(20.3"),*2)
Spacer 1
Diagram Reference: 14
Get Part
6884599701
Spacer 2
Diagram Reference: 15
Get Part
9299018200
Washer (6e5)
Diagram Reference: 16
Get Part
9017118M04
Nut, castle (6e5)
Diagram Reference: 17
Get Part
9149040030
Pin, cotter (663)
Diagram Reference: 18
Get Part
66K45976B0 (UR)
Propeller (Ss 3X14-1/2"X21"-M)
Diagram Reference: 19
Get Part
66K45974B0 (UR)
Propeller (3X14-1/2"X23"-M2)
Diagram Reference: 19
Get Part
66K45972B0 (UR)
Propeller (3X14-1/2"X25"-M2)
Diagram Reference: 19
Get Part
66K45970B0 (UR)
Propeller (3X14-1/2"X27"-M1)
Diagram Reference: 19
Get Part
6G54594100 (UR)
Propeller (3x15-1/4x15-m)
Diagram Reference: 19
Get Part
6G54595200 (UR)
Propeller (3x14-5/8"x16"-m)
Diagram Reference: 19
Get Part
6G54593000 (UR)
Propeller (ss 3x13-3/8"x25"-m)
Diagram Reference: 19
Get Part
6G54597601 (UR)
Propeller (3x13-3/8"x23"-m)
Diagram Reference: 19
Get Part
6G54597202 (UR)
Propeller (3x13-3/4 x21 -m)
Diagram Reference: 19
Get Part
6G54597403 (UR)
Propeller (3x13-3/4"x19"-m2)
Diagram Reference: 19
Get Part
6G54594900 (UR)
Propeller (3x13-1/2"x23"-m)
Diagram Reference: 19
Get Part
6G54594301 (UR)
Propeller (3x13-3/4"x21"-m)
Diagram Reference: 19
Get Part
6G54594501 (UR)
Propeller (3x14"x19"-m)
Diagram Reference: 19
Get Part
6G54594701 (UR)
Propeller (3x14-1/2"x17"-m)
Diagram Reference: 19
Get Part
6G54597803 (UR)
Propeller (3x13-3/4"x17"-m2)
Diagram Reference: 19
Get Part
6KW4597200 (UR)
Propeller (3X15-1/8"X25"-T3)
Diagram Reference: 20
Get Part
6KW4597000 (UR)
Propeller (ss 3x15-1/8 x27 -t3
Diagram Reference: 20
Get Part
6KW4597800 (UR)
Propeller (3X15-1/8"X26"-T3)
Diagram Reference: 20
Get Part
6KW4593000 (UR)
Propeller (3X15-1/8"X24"-T3)
Diagram Reference: 20
Get Part
6KW4597400 (UR)
Propeller (3X15-1/8"X23"-T3)
Diagram Reference: 20
Get Part
6KW4593200 (UR)
Propeller (3X15-1/8"X22"-T3)
Diagram Reference: 20
Get Part
60H4597000 (UR SDS 3 BLADE)
Propeller (3x14-1/4 x14 -m)
Diagram Reference: 21
Get Part
60H4597800 (UR SDS 3 BLADE)
Propeller (3x14-1/4 x22 -m)
Diagram Reference: 21
Get Part
60H4597600 (UR SDS 3 BLADE)
Propeller (3x14-1/4 x20 -m)
Diagram Reference: 21
Get Part
60H4597400 (UR SDS 3 BLADE)
Propeller (3x14-1/4 x18 -m)
Diagram Reference: 21
Get Part
60H4597200 (UR SDS 3 BLADE)
Propeller (3x14-1/4 x16 -m)
Diagram Reference: 21
Get Part
68F4597620 (UR SDS 3 BLADE)
Reliance sds (3x13-3/4"x21"-m)
Diagram Reference: 21
Get Part
68F4597820 (UR SDS 3 BLADE)
Reliance sds (3x14-1/4"x18"-m)
Diagram Reference: 21
Get Part
68F4597220 (UR SDS 3 BLADE)
Reliance sds (3x14-1/4"x17"-m)
Diagram Reference: 21
Get Part
68F4597020 (UR SDS 3 BLADE)
Reliance sds (3x14-1/2"x15" m)
Diagram Reference: 21
Get Part
68F4593020 (UR SDS 3 BLADE)
Reliance sds (3x14-1/2"x14"-m)
Diagram Reference: 21
Get Part
68F4593220 (UR SDS 3 BLADE)
Reliance sds (3x14-1/2"x13"-m)
Diagram Reference: 21
Get Part
68F4597420 (UR SDS 3 BLADE)
Reliance sds (3x13-3/4"x19"-m)
Diagram Reference: 21
Get Part
6CE4597220 (UR SDS 3 BLADE)
Sws2 w/sds (3x15 x21-t)
Diagram Reference: 21
Get Part
6CE45D7420 (UR SDS 3 BLADE)
Propeller (3X14-3/4X25-T)
Diagram Reference: 21
Get Part
6CE45D7220 (UR SDS 3 BLADE)
Propeller (3X14-3/4X24-T)
Diagram Reference: 21
Get Part
6CE4597420 (UR SDS 3 BLADE)
Sws2 w/sds (3x14-3/4 x23-t)
Diagram Reference: 21
Get Part
6CE4593620 (UR SDS 3 BLADE)
Sws2 w/sds (3x14-3/4 x22 -t)
Diagram Reference: 21
Get Part
6CE4593220 (UR SDS 3 BLADE)
Sws2 w/sds (3x15 x20-t)
Diagram Reference: 21
Get Part
6CE4597020 (UR SDS 3 BLADE)
Sws2 w/sds (3x15-1/4 x19-t)
Diagram Reference: 21
Get Part
6CE4593420 (UR SDS 3 BLADE)
Sws2 w/sds (3x15-1/4 x18 -t)
Diagram Reference: 21
Get Part
6CE45C8110
Damper rubber, propeller 1
Diagram Reference: 22
Get Part
6CE45B7020 (UR SDS 4 BLADE)
Sws hs4 sds (ss 4x15"x21"-t)
Diagram Reference: 23
Get Part
6CE45B7220 (UR SDS 4 BLADE)
Sws hs4 sds (ss 4x15"x22"-t)
Diagram Reference: 23
Get Part
6CE45B7420 (UR SDS 4 BLADE)
Sws hs4 sds (ss 4x15"x23"-t)
Diagram Reference: 23
Get Part
