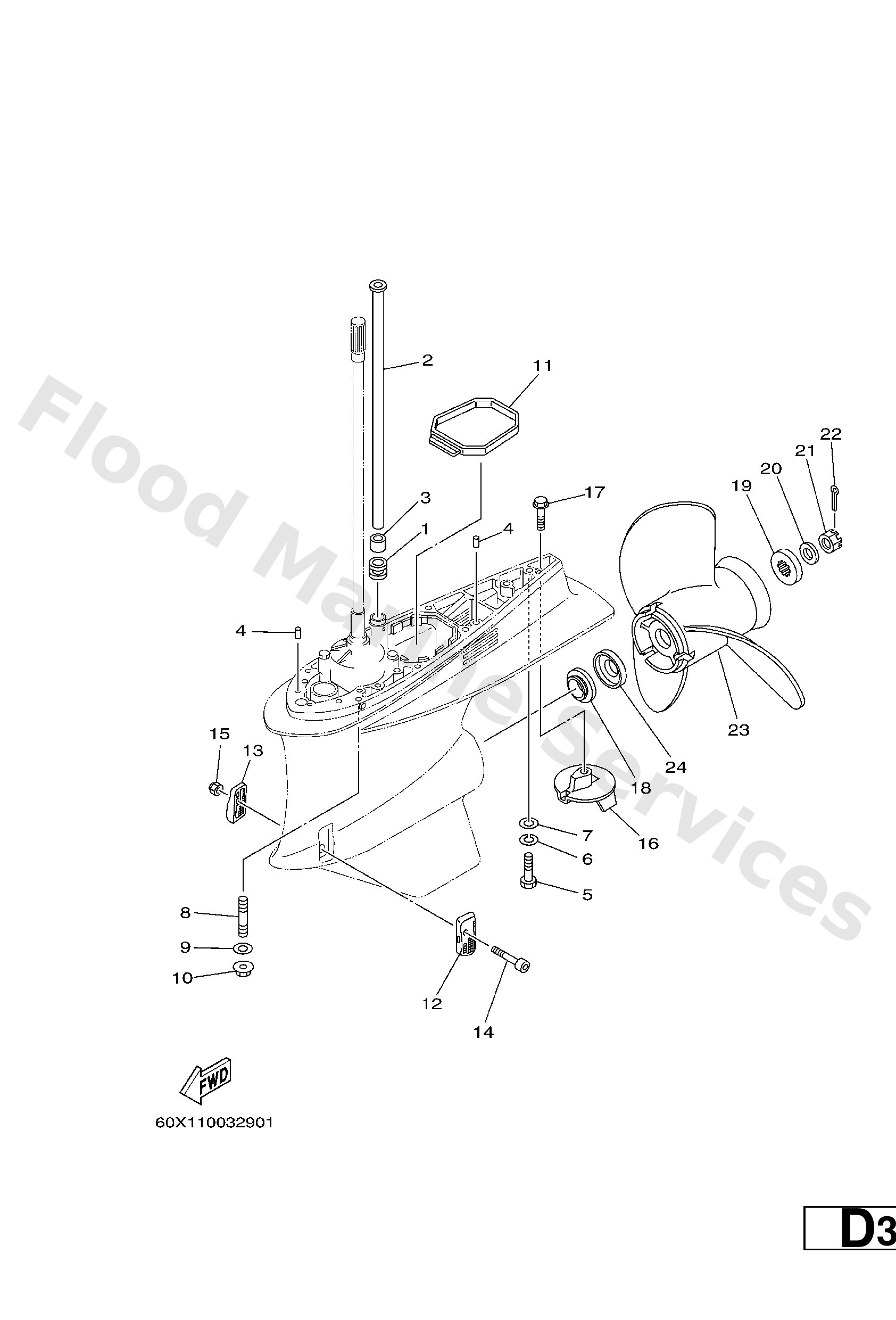

Diagram: LOWER CASING & DRIVE 2

Diagram

Parts List

6E54436600
Damper, water seal 2
Diagram Reference: 1
Get Part
66K4436100
Tube, water
Diagram Reference: 2
Get Part
6E54436500
Damper, water seal 1
Diagram Reference: 3
Get Part
9360812M05
Pin, dowel b (6e5)
Diagram Reference: 4
Get Part
9709510045
Bolt(64d)
Diagram Reference: 5
Get Part
9299510100
Ybs67-10 washer, spring
Diagram Reference: 6
Get Part
9299510600
Washer, plate
Diagram Reference: 7
Get Part
9011610021
Bolt, stud
Diagram Reference: 8
Get Part
9578010300
Nut, nylon (6e5)
Diagram Reference: 10
Get Part
60X4537500
Damper, seal
Diagram Reference: 11
Get Part
60X4521400
Cover set, water inlet
Diagram Reference: 12
Get Part
60X4521500
Cover set, water inlet
Diagram Reference: 13
Get Part
9011005017
Bolt, Hexagon Socket Head
Diagram Reference: 14
Get Part
9018505002
Nut nylon (sus)(ex4)
Diagram Reference: 15
Get Part
69L4537100
Tab-trim
Diagram Reference: 16
Get Part
9010510M00
Bolt, hexagon (663)
Diagram Reference: 17
Get Part
60X4598710 (Go to P/N)PE0-OM-080083)
Spacer 1
Diagram Reference: 18
Get Part
6884599701
Spacer 2
Diagram Reference: 19
Get Part
9299018200
Washer (6e5)
Diagram Reference: 20
Get Part
9017118M04
Nut, castle (6e5)
Diagram Reference: 21
Get Part
9149040030
Pin, cotter (663)
Diagram Reference: 22
Get Part
*
item_description
Diagram Reference: 23
Get Part
60X4599500 (Go to P/N)PE0-OM-080083)
Spacer 3
Diagram Reference: 24
Get Part
