Parts List

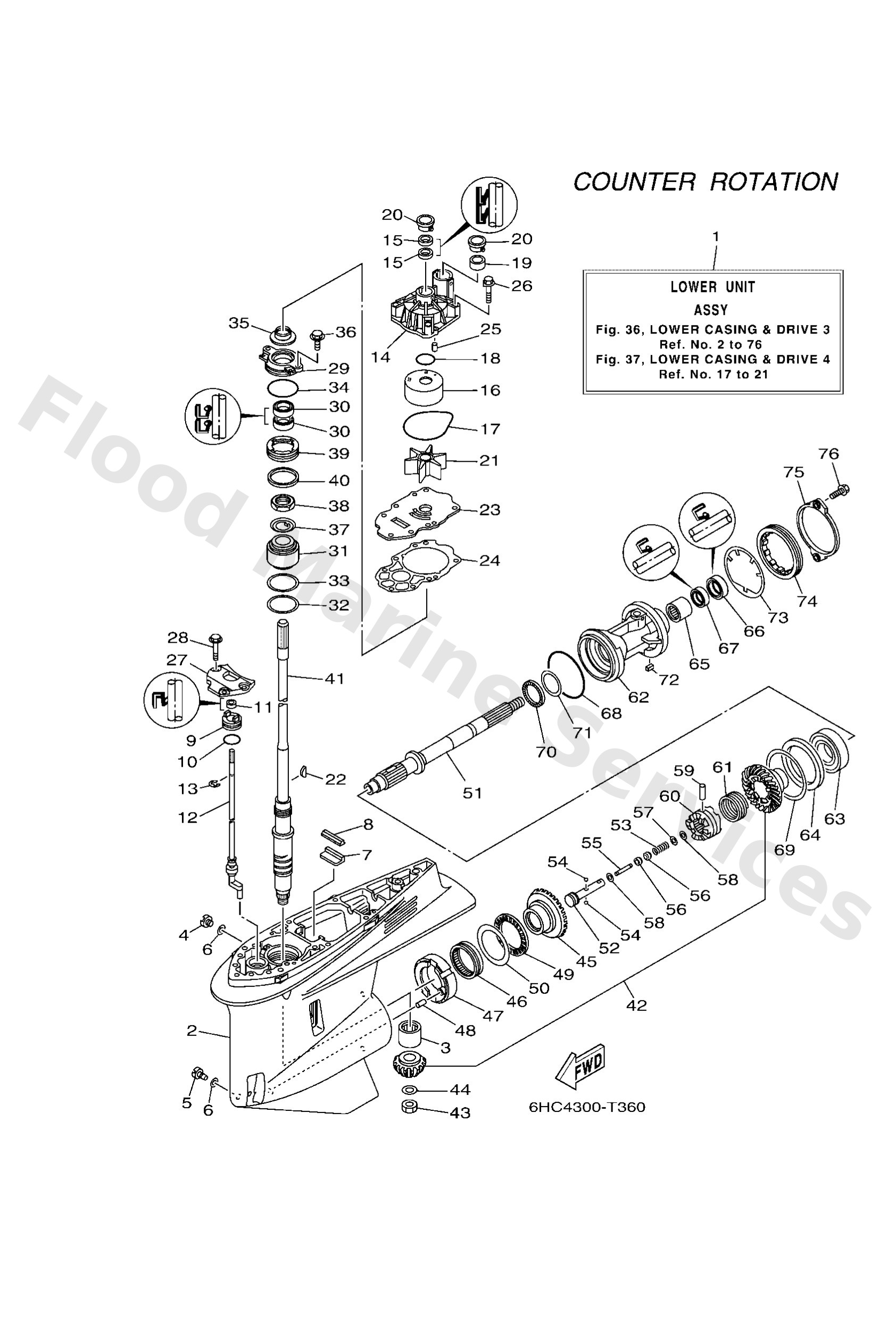

Lower unit assembly
Diagram Reference: 1
Casing, lower
Diagram Reference: 2
Ball bearing
Diagram Reference: 3
Plug, straight screw
Diagram Reference: 4
Plug, drain
Diagram Reference: 5
Gasket
Diagram Reference: 6
Guide, seal damper
Diagram Reference: 7
Damper, seal
Diagram Reference: 8
Plate
Diagram Reference: 9
O-ring(6l5)
Diagram Reference: 10
Oil seal
Diagram Reference: 11
Shift cam assembly
Diagram Reference: 12
Circlip(2r6)
Diagram Reference: 13
Housing, water pump
Diagram Reference: 14
Oil seal(61a)
Diagram Reference: 15
Insert, cartridge
Diagram Reference: 16
O-ring
Diagram Reference: 17
O-ring (6g8)
Diagram Reference: 18
Damper, water seal 1
Diagram Reference: 19
Cover, water pump housing
Diagram Reference: 20
Impeller
Diagram Reference: 21
Key, woodruff
Diagram Reference: 22
Outer plate, cartridge
Diagram Reference: 23
Gasket, water pump
Diagram Reference: 24
Pin, dowel (614)
Diagram Reference: 25
Bolt, with washer
Diagram Reference: 26
Cover, water pump housing
Diagram Reference: 27
Bolt, with washer
Diagram Reference: 28
Housing, oil seal
Diagram Reference: 29
Oil seal (6e5)
Diagram Reference: 30
Bearing
Diagram Reference: 31
Washer, plate
Diagram Reference: 32
Shim (t:0.10mm)
Diagram Reference: 33
Shim (t:0.12mm)
Diagram Reference: 33
Shim (t:0.15mm)
Diagram Reference: 33
Shim (t:0.18mm)
Diagram Reference: 33
Shim (t:0.30mm)
Diagram Reference: 33
Shim (t:0.40mm)
Diagram Reference: 33
Shim (t:0.50mm)
Diagram Reference: 33
93210-64488
Diagram Reference: 34
Cover, oil seal
Diagram Reference: 35
Bolt, hexagon w/w deep recess
Diagram Reference: 36
Washer, claw
Diagram Reference: 37
Nut(6t5)
Diagram Reference: 38
Nut
Diagram Reference: 39
Spacer 2
Diagram Reference: 40
Drive shaft comp.
Diagram Reference: 41
Gear set
Diagram Reference: 42
Nut(6t5)
Diagram Reference: 43
Washer, plate(6t5)
Diagram Reference: 44
Gear (21t)
Diagram Reference: 45
Bearing
Diagram Reference: 46
Adapter
Diagram Reference: 47
Pin, dowel(6t4)
Diagram Reference: 48
Bearing
Diagram Reference: 49
Shim (t:2.00mm)
Diagram Reference: 50
Shim (t:2.03mm)
Diagram Reference: 50
Shim (t:2.06mm)
Diagram Reference: 50
Shim (t:2.09mm)
Diagram Reference: 50
Shim (t:2.12mm)
Diagram Reference: 50
Shim (t:2.15mm)
Diagram Reference: 50
Shaft, propeller
Diagram Reference: 51
Slide, shift
Diagram Reference: 52
Spring, compression(61a)
Diagram Reference: 53
Ball
Diagram Reference: 54
Shaft, free 1
Diagram Reference: 55
Plunger, shift
Diagram Reference: 56
Washer, plate(61a)
Diagram Reference: 57
Nut, spring (6h1)
Diagram Reference: 58
Pin, straight (6g5)
Diagram Reference: 59
Clutch, dog
Diagram Reference: 60
Ring, cross pin
Diagram Reference: 61
Housing, bearing
Diagram Reference: 62
Bearing(6k0)
Diagram Reference: 63
Washer, thrust 2
Diagram Reference: 64
Bearing
Diagram Reference: 65
Oil seal
Diagram Reference: 66
Oil seal
Diagram Reference: 67
O-ring
Diagram Reference: 68
Shim (t:0.10mm)
Diagram Reference: 69
Shim (t:0.12mm)
Diagram Reference: 69
Shim (t:0.15mm)
Diagram Reference: 69
Shim (t:0.18mm)
Diagram Reference: 69
Shim (t:0.30mm)
Diagram Reference: 69
Shim (t:0.40mm)
Diagram Reference: 69
Shim (t:0.50mm)
Diagram Reference: 69
Bearing, thrust (6k0)
Diagram Reference: 70
Shim (t:0.10mm)
Diagram Reference: 71
Shim (t:0.12mm)
Diagram Reference: 71
Shim (t:0.15mm)
Diagram Reference: 71
Shim (t:0.18mm)
Diagram Reference: 71
Shim (t:0.30mm)
Diagram Reference: 71
Shim (t:0.40mm)
Diagram Reference: 71
Shim (t:0.50mm)
Diagram Reference: 71
Key, straight
Diagram Reference: 72
Washer, claw
Diagram Reference: 73
Nut
Diagram Reference: 74
Cap, lower casing
Diagram Reference: 75
Bolt, washer based(62x)
Diagram Reference: 76
