Parts List

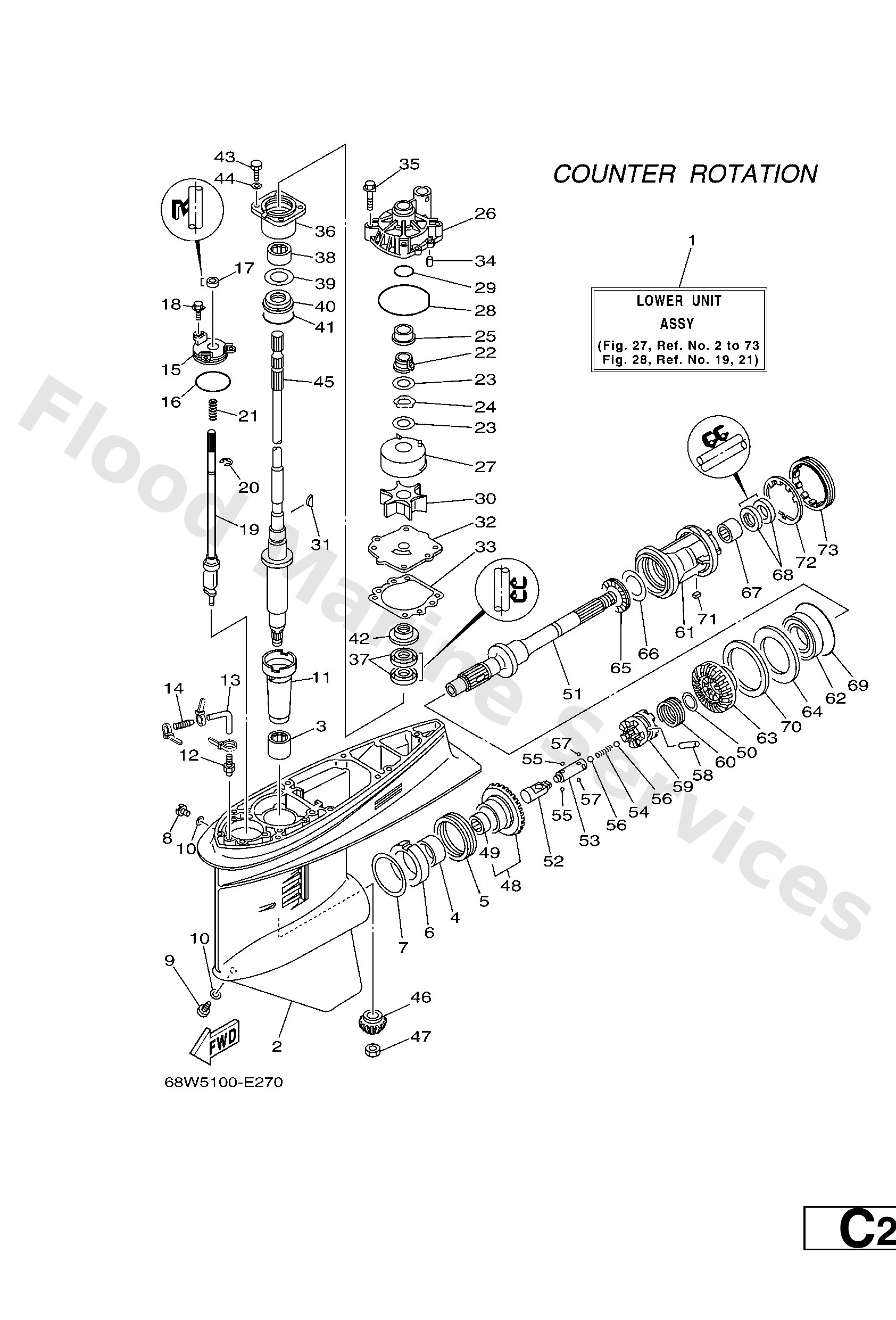

Lower unit assembly
Diagram Reference: 1
Casing, lower
Diagram Reference: 2
Brg,cyl-cal roller (6e5)
Diagram Reference: 3
Bearing, cylindrical(6l6)
Diagram Reference: 4
Bearing, thrust (6l6)
Diagram Reference: 5
Spacer, 1
Diagram Reference: 6
Shim (t:0.10mm)
Diagram Reference: 7
Shim (t:0.12mm)
Diagram Reference: 7
Shim (t:0.15mm)
Diagram Reference: 7
Shim (t:0.18mm)
Diagram Reference: 7
Shim (t:0.30mm)
Diagram Reference: 7
Shim (t:0.40mm)
Diagram Reference: 7
Shim (t:0.50mm)
Diagram Reference: 7
Plug, straight screw
Diagram Reference: 8
Plug, drain
Diagram Reference: 9
Gasket
Diagram Reference: 10
Sleeve, drive shaft
Diagram Reference: 11
Nipple, hose
Diagram Reference: 12
Hose (l250)
Diagram Reference: 13
End, nipple
Diagram Reference: 14
Plate
Diagram Reference: 15
O-ring(47x)
Diagram Reference: 16
Oil seal
Diagram Reference: 17
Bolt, with washer
Diagram Reference: 18
Shift cam assembly
Diagram Reference: 19
Circlip(2r6)
Diagram Reference: 20
Spring, compression (663)
Diagram Reference: 21
Spacer, 1
Diagram Reference: 22
Washer, plate(61a)
Diagram Reference: 23
Washer, wave(61a)
Diagram Reference: 24
Collar, drive shaft
Diagram Reference: 25
Housing, water pump
Diagram Reference: 26
Insert, cartridge
Diagram Reference: 27
O-ring (6e5)
Diagram Reference: 28
O-ring (6g8)
Diagram Reference: 29
Impeller
Diagram Reference: 30
Key, woodruff (6e5)
Diagram Reference: 31
Outer plate, cartridge
Diagram Reference: 32
Gasket,water pump
Diagram Reference: 33
Pin, dowel (614)
Diagram Reference: 34
Bolt, with washer
Diagram Reference: 35
Housing, bearing
Diagram Reference: 36
Oil seal (6e5)
Diagram Reference: 37
Bearing, cylindrical(6k0)
Diagram Reference: 38
Shim (t:0.50mm)
Diagram Reference: 39
Shim (t:0.40mm)
Diagram Reference: 39
Shim (t:0.30mm)
Diagram Reference: 39
Shim (t:0.15mm)
Diagram Reference: 39
Shim (t:0.18mm)
Diagram Reference: 39
Shim (t:0.10mm)
Diagram Reference: 39
Shim (t:0.12mm)
Diagram Reference: 39
Bearing, thrust(64d)
Diagram Reference: 40
O-ring (70e)
Diagram Reference: 41
Cover, oil seal
Diagram Reference: 42
Bolt (62g)
Diagram Reference: 43
Washer, plain (663)
Diagram Reference: 44
Drive shaft comp.
Diagram Reference: 45
Pinion
Diagram Reference: 46
Nut, hexagon (688)
Diagram Reference: 47
Gear
Diagram Reference: 48
Brg,cyl-cal roller (6e5)
Diagram Reference: 49
Washer, plate(6k0)
Diagram Reference: 50
Shaft, propeller
Diagram Reference: 51
Shifter
Diagram Reference: 52
Slide, shift
Diagram Reference: 53
Spring (6g5)
Diagram Reference: 54
Ball (12r)
Diagram Reference: 55
Ball (498)
Diagram Reference: 56
Ball
Diagram Reference: 57
Pin, straight (6g5)
Diagram Reference: 58
Clutch, dog
Diagram Reference: 59
Ring, cross pin
Diagram Reference: 60
Housing, bearing
Diagram Reference: 61
Bearing(6l6)
Diagram Reference: 62
Gear
Diagram Reference: 63
Washer, thrust
Diagram Reference: 64
Bearing, thrust (6k0)
Diagram Reference: 65
Shim (t:0.10mm)
Diagram Reference: 66
Shim (t:0.12mm)
Diagram Reference: 66
Shim (t:0.15mm)
Diagram Reference: 66
Shim (t:0.18mm)
Diagram Reference: 66
Shim (t:0.30mm)
Diagram Reference: 66
Shim (t:0.40mm)
Diagram Reference: 66
Shim (t:0.50mm)
Diagram Reference: 66
Bearing
Diagram Reference: 67
Oil seal (6e5)
Diagram Reference: 68
O-ring (6e5)
Diagram Reference: 69
Shim (t:0.10mm)
Diagram Reference: 70
Shim (t:0.12mm)
Diagram Reference: 70
Shim (t:0.15mm)
Diagram Reference: 70
Shim (t:0.18mm)
Diagram Reference: 70
Shim (t:0.30mm)
Diagram Reference: 70
Shim (t:0.40mm)
Diagram Reference: 70
Shim (t:0.50mm)
Diagram Reference: 70
Key, strait(663)
Diagram Reference: 71
Washer, claw
Diagram Reference: 72
Nut
Diagram Reference: 73
