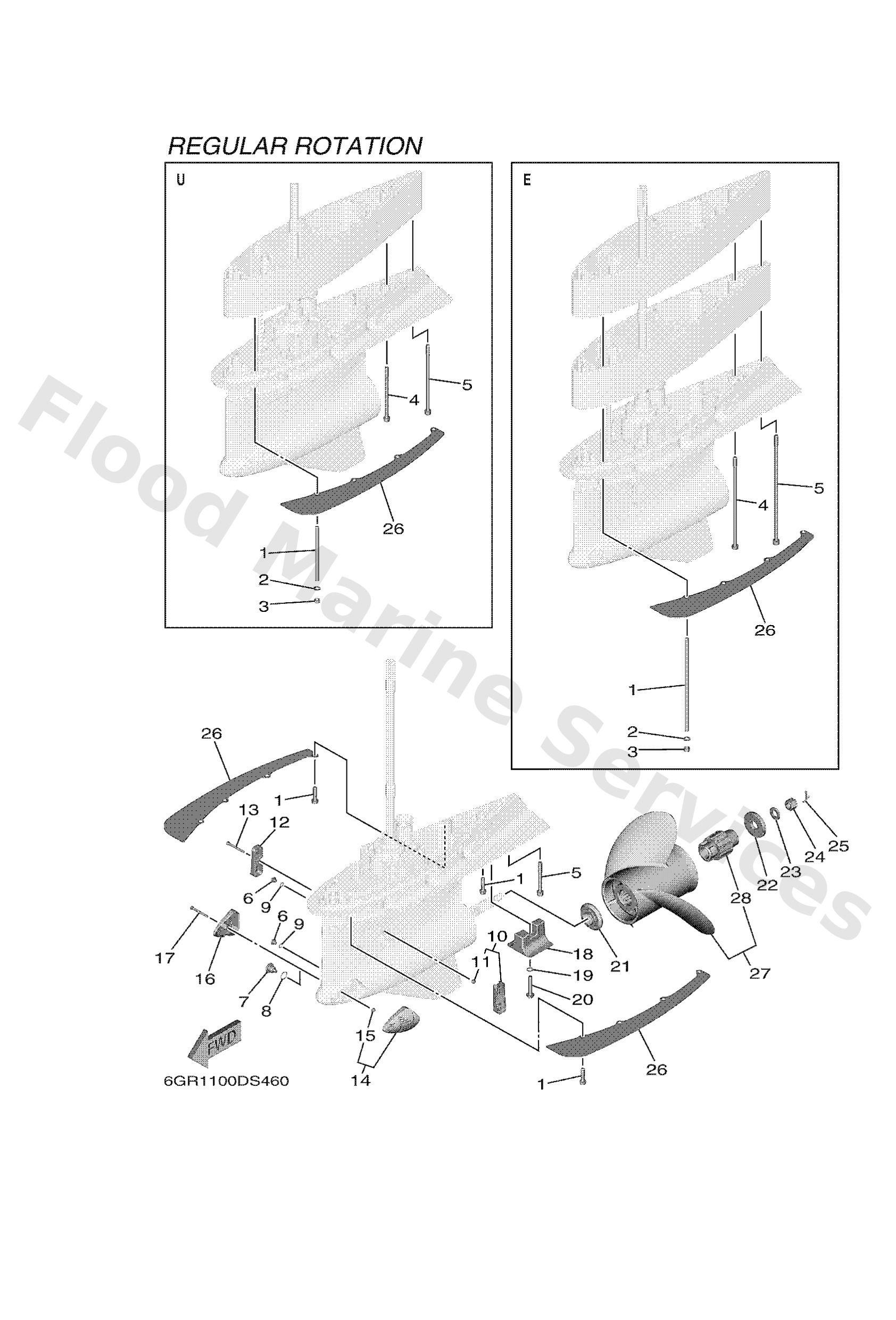

Diagram: LOWER CASING & DRIVE 3

Diagram

Parts List

9011910024 (UR X(25.2"))

Bolt, with washer

Diagram Reference: 1

9011610067 (UR U(30.2"))

Bolt, stud

Diagram Reference: 1

9011610066 (UR E(35.2"))

Bolt, stud

Diagram Reference: 1

9299510600 (U(30.2"),E(35.2"))

Washer, plate

Diagram Reference: 2

9538010600 (U(30.2"),E(35.2"))

Nut(624)

Diagram Reference: 3

9011910009 (UR U(30.2"))

Bolt, with washer

Diagram Reference: 4

9011910060 (UR E(35.2"))

Bolt, with washer

Diagram Reference: 4

9011010048 (UR X(25.2"))

Bolt, hexagon socket head

Diagram Reference: 5

9011010049 (UR U(30.2"))

Bolt, hexagon socket head

Diagram Reference: 5

9011010050 (UR E(35.2"))

Bolt, hexagon socket head

Diagram Reference: 5

9034008003

Plug, straight screw

Diagram Reference: 6

6GR4534100

Plug, drain

Diagram Reference: 7

9321019123

O-ring (646)

Diagram Reference: 8

9321009165

O-ring

Diagram Reference: 9

6GR4521400

Cover, water inlet 1

Diagram Reference: 10

9018506M07

Nut, self-locking(6e5)

Diagram Reference: 11

6GR4521500

Cover, water inlet 2

Diagram Reference: 12

9011006425

Bolt, hexagon socket head

Diagram Reference: 13

6GR4522400

Cover, water inlet 3

Diagram Reference: 14

6GR4522500

Cover, water inlet 4

Diagram Reference: 16

6AW4537300

Anode

Diagram Reference: 18

9299010300

Washer

Diagram Reference: 19

9010510257

Bolt, flange

Diagram Reference: 20

6GR4598700

Spacer 1

Diagram Reference: 21

6GR4599700

Spacer 2

Diagram Reference: 22

9020119M01

Washer, plate(6u1)

Diagram Reference: 23

9017118M04

Nut, castle (6e5)

Diagram Reference: 24

9149040030

Pin, cotter (663)

Diagram Reference: 25

6GR45158008D

Plate, splash

Diagram Reference: 26

6GR4597010 (UR)

Xto prop (ss 3x17-1/8 x15 -y)

Diagram Reference: 27

6GR4597210 (UR)

Xto prop (ss 3x16-7/8 x17"-y)

Diagram Reference: 27

6GR4597410 (UR)

Xto prop (ss 3x 16-5/8 x19-y)

Diagram Reference: 27

6GR4597610 (UR)

Xto prop (ss 3x 16-3/8 x21-y)

Diagram Reference: 27

6GR4597810 (UR)

Xto prop (ss 3x 16-1/8 x23-y)

Diagram Reference: 27

6GR4593010 (UR)

Xto prop (ss 3 x 16 x 25-y)

Diagram Reference: 27

6GR4593810 (UR)

Xto prop (ss 3x 16-5/8 x18-y)

Diagram Reference: 27

6GR4593610 (UR)

Xto prop (ss 3x16-3/8 x20"-y)

Diagram Reference: 27

6GR4593410 (UR)

Xto prop (ss 3x16-1/8 x22"-y)

Diagram Reference: 27

6GR45C8110

Damper rubber, propeller 1

Diagram Reference: 28
