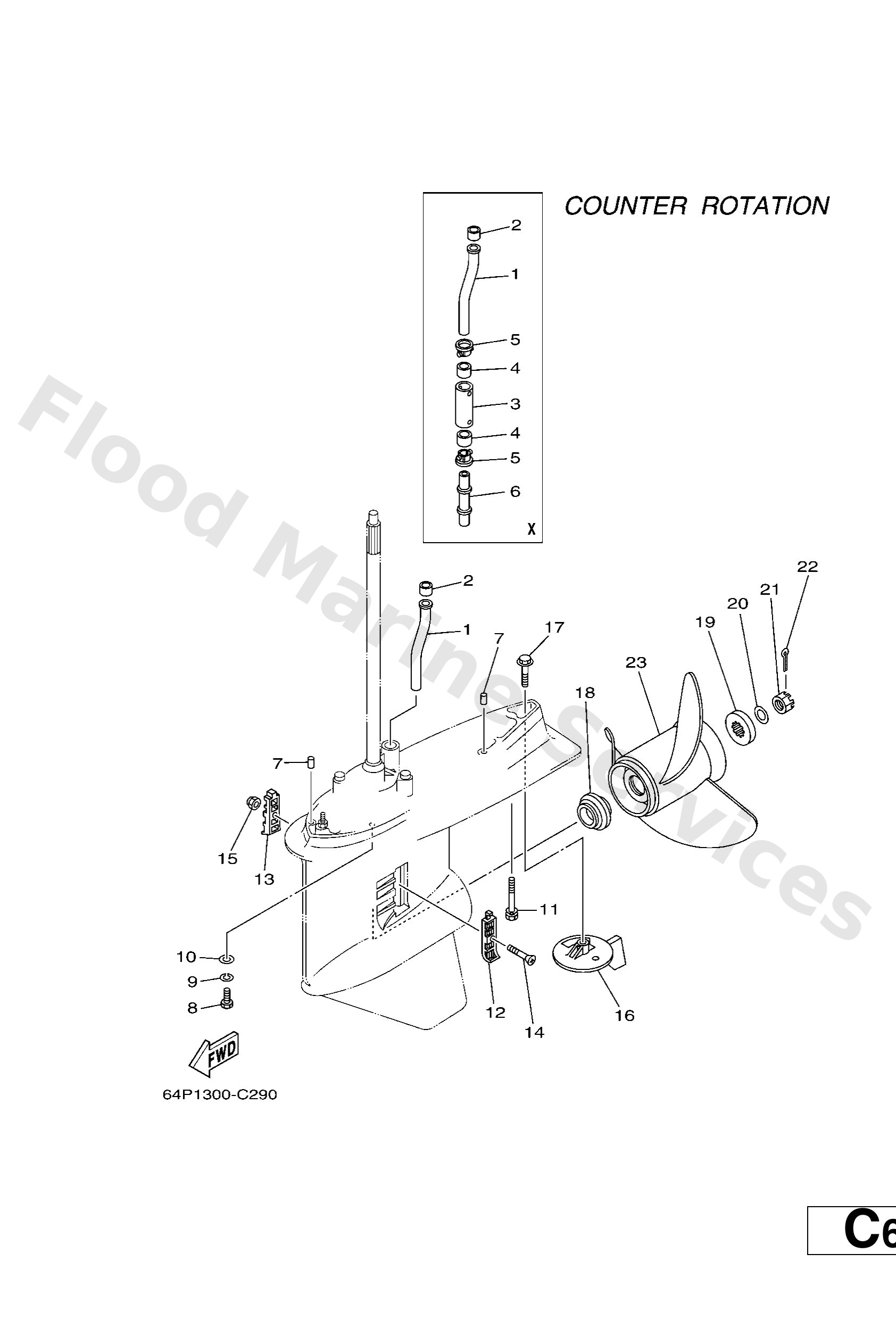

Parts List
Tube, water
Diagram Reference: 1
Damper, water seal 1
Diagram Reference: 4
Tube, water 2
Diagram Reference: 3
Cover, water pump housing
Diagram Reference: 5
Tube, water 3
Diagram Reference: 6
Pin, dowel(6t4)
Diagram Reference: 7
Bolt(64d)
Diagram Reference: 8
Ybs67-10 washer, spring
Diagram Reference: 9
Washer, plate
Diagram Reference: 10
Bolt, with washer
Diagram Reference: 11
Bolt, with washer
Diagram Reference: 11
Cover, water inlet
Diagram Reference: 12
Cover, water inlet
Diagram Reference: 13
Screw, countersunk
Diagram Reference: 14
Nut nylon (sus)(ex4)
Diagram Reference: 15
Tab-trim
Diagram Reference: 16
Bolt, hexagon (663)
Diagram Reference: 17
Spacer 1
Diagram Reference: 18
Spacer 2
Diagram Reference: 19
Washer (6e5)
Diagram Reference: 20
Nut, castle (6e5)
Diagram Reference: 21
Pin, cotter (663)
Diagram Reference: 22
Propeller (3x13-3/8"x23"-ml)
Diagram Reference: 23
Propeller (3x13-3/4"x19"-ml1)
Diagram Reference: 23
Propeller (3x13-3/4"x21"-ml)
Diagram Reference: 23
Propeller (3x15-1/4"x15"-ml)
Diagram Reference: 23
Propeller (3x13-3/4"x17"-ml1)
Diagram Reference: 23
Propeller (3x14 x19 -ml)
Diagram Reference: 23
Propeller (3x14-1/2 x17 -ml)
Diagram Reference: 23
Propeller (3X15-1/4"X19"-Ml)
Diagram Reference: 23
Propeller (3X14–7/8”X21”–Ml)
Diagram Reference: 23
Propeller (3X14–1/2”X23”–Ml)
Diagram Reference: 23
Propeller (3X15–1/4”X15”–Ml)
Diagram Reference: 23
Propeller (3X15–1/4”X17”–Ml)
Diagram Reference: 23
