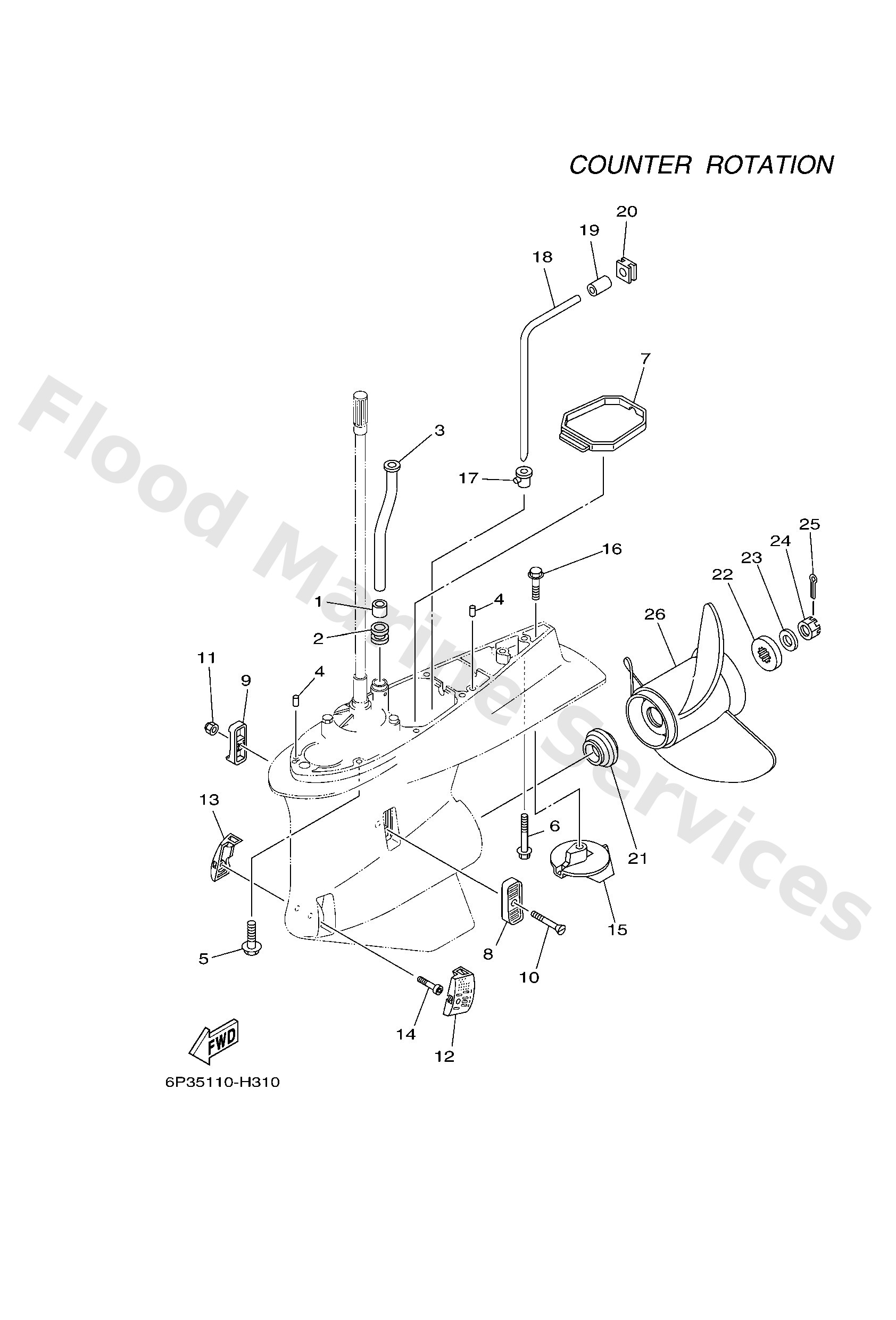

Parts List
Damper, Water Seal 1
Diagram Reference: 1
Damper, Water Seal 2
Diagram Reference: 2
Tube, water 1
Diagram Reference: 3
Tube, Water
Diagram Reference: 3
Pin, Dowel
Diagram Reference: 4
Bolt, with washer
Diagram Reference: 5
Bolt, With Washer
Diagram Reference: 6
Bolt, With Washer
Diagram Reference: 6
Damper, seal
Diagram Reference: 7
Cover, water inlet 1
Diagram Reference: 8
Cover, water inlet 2
Diagram Reference: 9
Screw, Countersunk
Diagram Reference: 10
Nut, Nylon
Diagram Reference: 11
Cover, water inlet 3
Diagram Reference: 12
Cover, water inlet 4
Diagram Reference: 13
Bolt, hexagon socket head
Diagram Reference: 14
Bolt, Flange
Diagram Reference: 16
Damper, water seal 3
Diagram Reference: 17
Tube, water 2
Diagram Reference: 18
Damper, water seal 1
Diagram Reference: 19
Damper, water seal 2
Diagram Reference: 20
Spacer
Diagram Reference: 21
Washer
Diagram Reference: 23
Nut, Castle
Diagram Reference: 24
Pin. Cotter
Diagram Reference: 25
Propeller (4X15"X23"-Tl)
Diagram Reference: 26
Propeller (4X15"X22"-Tl)
Diagram Reference: 26
Propeller (4X15"X21"-Tl)
Diagram Reference: 26
Propeller (3X15-1/2"X17"-Tl)
Diagram Reference: 26
Propeller (3X15"X21"-Tl)
Diagram Reference: 26
Propeller (3X15-1/4"X19"-Tl)
Diagram Reference: 26
Propeller (3X15–1/4”X17”–Ml)
Diagram Reference: 26
Propeller (3X15–1/4”X15”–Ml)
Diagram Reference: 26
Propeller (3X14–1/2”X23”–Ml)
Diagram Reference: 26
Propeller (3X14–7/8”X21”–Ml)
Diagram Reference: 26
Propeller (3X15-1/4"X19"-Ml)
Diagram Reference: 26
Propeller (3X15”X17”–Tl)
Diagram Reference: 26
Propeller (3X14–1/2”X19”–Tl)
Diagram Reference: 26
Propeller (3X14–1/2”X21”–Tl)
Diagram Reference: 26
Propeller (3X13–3/4”X17”–Ml1)
Diagram Reference: 26
Propeller (3X13–3/4”X19”–Ml1)
Diagram Reference: 26
Propeller (3X13–3/4”X21”–Ml)
Diagram Reference: 26
Propeller (3X15–1/4”X15”–Ml)
Diagram Reference: 26
