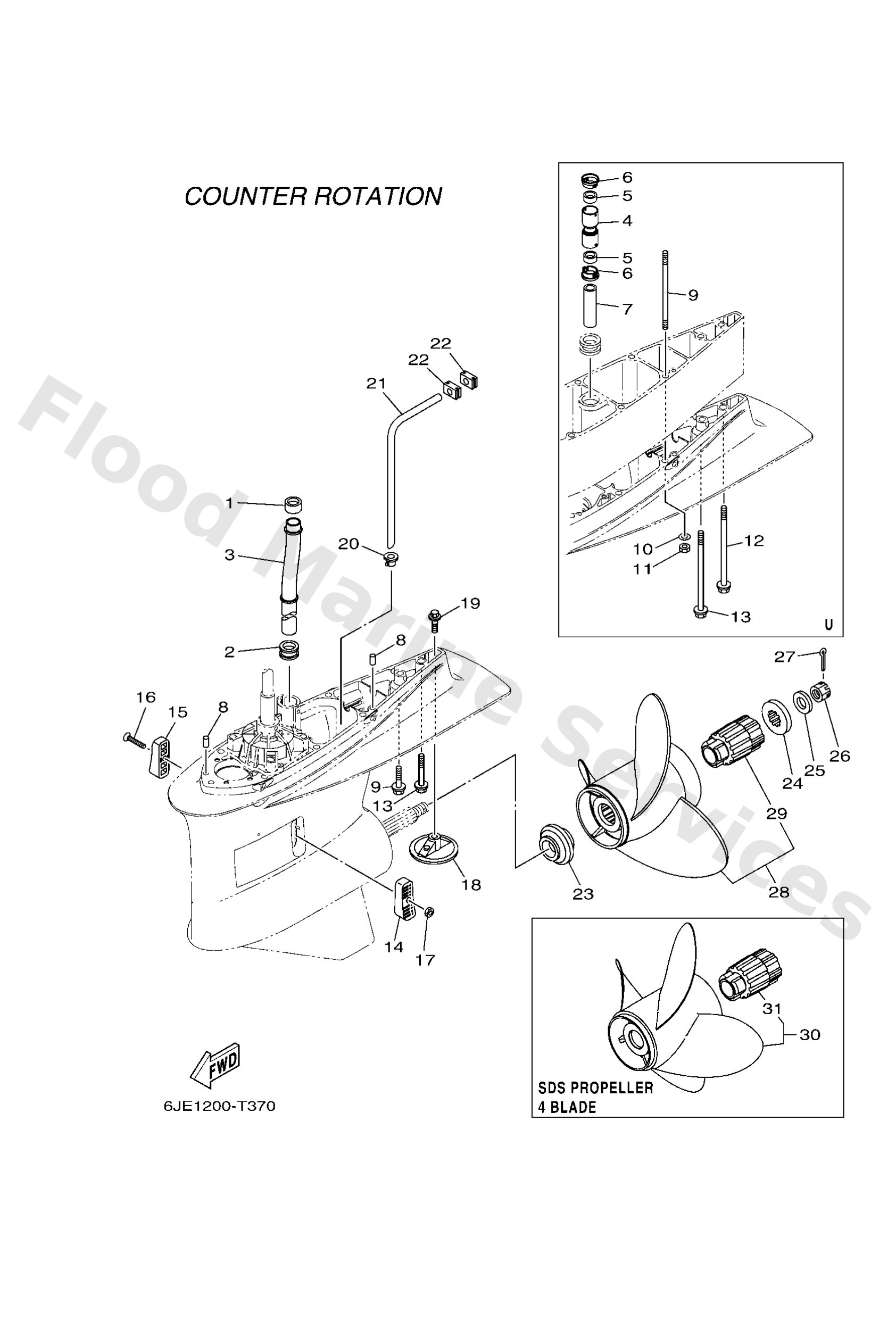

Diagram: LOWER CASING & DRIVE 4

Diagram

Parts List

6AW4436500 (U(30.3"))

Damper, water seal 1

Diagram Reference: 5

6AW4436600

Damper, water seal 2

Diagram Reference: 2

6CE4436100

Tube, water 1

Diagram Reference: 3

6CE4436200 (U(30.3"))

Tube, water 2

Diagram Reference: 4

6AW4431200 (U(30.3"))

Cover, water pump housing

Diagram Reference: 6

6AW4436300 (U(30.3"))

Tube, water 3

Diagram Reference: 7

9360816M16

Pin, dowel(6t4)

Diagram Reference: 8

9011610067 (U(30.3"))

Bolt, stud

Diagram Reference: 9

9011910024 (X(25.3"))

Bolt, with washer

Diagram Reference: 9

9299510600 (U(30.3"))

Washer, plate

Diagram Reference: 10

9538010600 (U(30.3"))

Nut(624)

Diagram Reference: 11

9011910008 (U(30.3"))

Bolt, with washer

Diagram Reference: 12

97E7510570 (X(25.3"))

Bolt, hexagon w/w deep recess

Diagram Reference: 13

9011910009 (U(30.3"))

Bolt, with washer

Diagram Reference: 13

6AW4521400

Cover, water inlet 1

Diagram Reference: 14

6AW4521500

Cover, water inlet 2

Diagram Reference: 15

9015205003

Screw, countersunk

Diagram Reference: 16

9018505002

Nut nylon (sus)(ex4)

Diagram Reference: 17

6CE4537300

Anode

Diagram Reference: 18

9010510M00

Bolt, hexagon (663)

Diagram Reference: 19

6AW4436700

Damper, water seal 3

Diagram Reference: 20

6JD4436200

Tube, water 2

Diagram Reference: 21

6AW4437600

Grommet, water tube 2

Diagram Reference: 22

6AW4598700

Spacer 1

Diagram Reference: 23

6AW4599700

Spacer 2

Diagram Reference: 24

9020119M01

Washer, plate(6u1)

Diagram Reference: 25

9017118M04

Nut, castle (6e5)

Diagram Reference: 26

9149040030

Pin, cotter (663)

Diagram Reference: 27

6AX4593020 (UR SDS 3 BLADE)

Sws xl sds (3x16-1/4 x13 -xl)

Diagram Reference: 28

6AX4597020 (UR SDS 3 BLADE)

Sws xl sds (3x16-1/4x15"-xl)

Diagram Reference: 28

6AX4597220 (UR SDS 3 BLADE)

Sws xl sds (3x16-1/4x17"-xl)

Diagram Reference: 28

6AX4597420 (UR SDS 3 BLADE)

Sws xl sds (3x15-1/2x19"-xl)

Diagram Reference: 28

6AX4597620 (UR SDS 3 BLADE)

Sws xl sds (3x15-1/4x21"-xl)

Diagram Reference: 28

6AX4597820 (UR SDS 3 BLADE)

Sws xl sds (3x15-1/4x23"-xl)

Diagram Reference: 28

6AW45C8110

Propeller damper rubber assembly

Diagram Reference: 29

6AX45B7420 (UR SDS 4 BLADE)

Sws xl4-hp sds(4x15-3/8x24"-xl

Diagram Reference: 30

6AX45B7620 (UR SDS 4 BLADE)

Sws xl4-hp sds(4x15-3/8x22"-xl

Diagram Reference: 30

6AX45B7220 (UR SDS 4 BLADE)

Sws xl4 sds (4x16-1/8x17"-xl)

Diagram Reference: 30

6AX45B7020 (UR SDS 4 BLADE)

Sws xl4 sds (4x16-1/8x15"-xl)

Diagram Reference: 30
