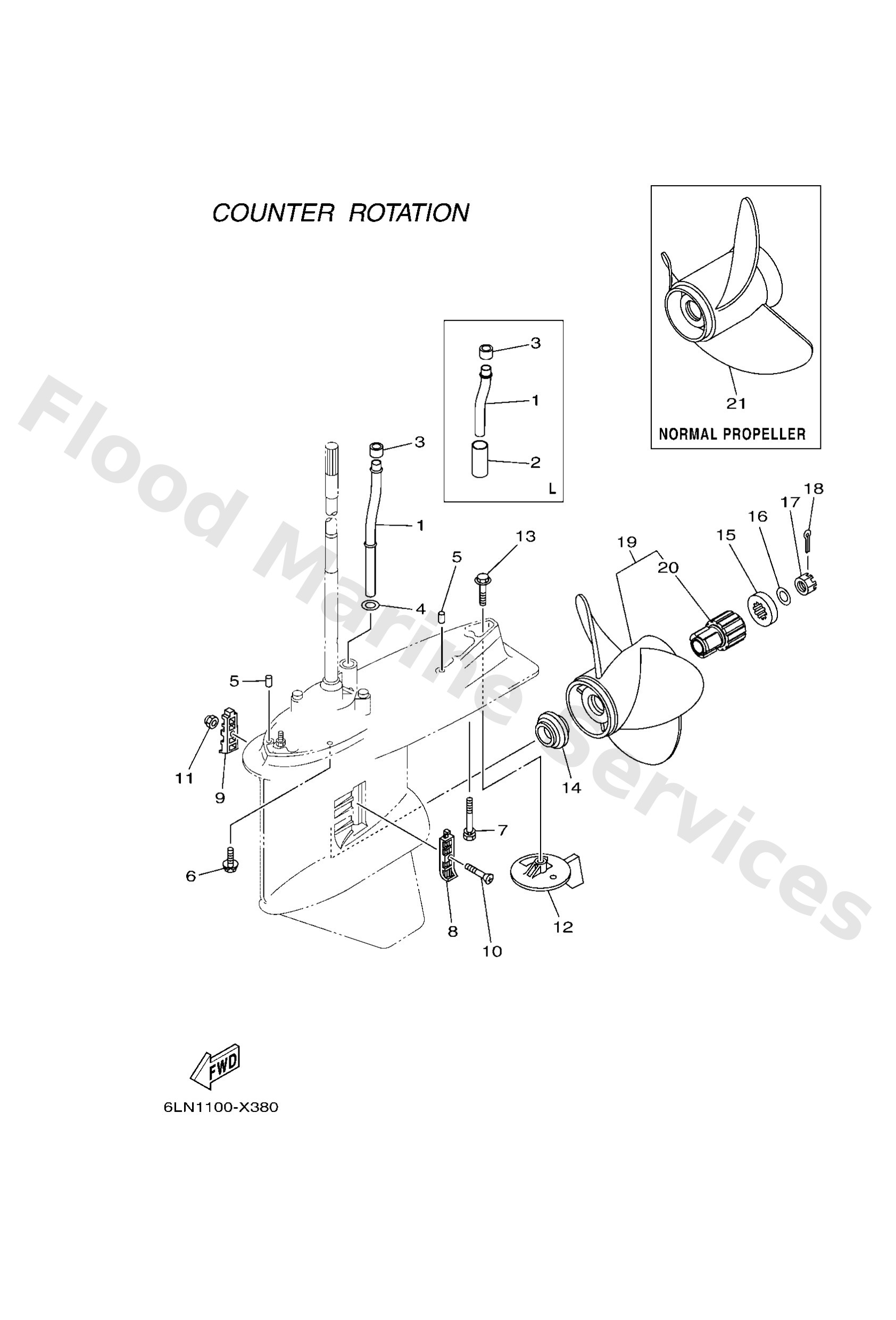

Diagram: LOWER CASING & DRIVE 4

Diagram

Parts List

6DA4436110 (L(20.3"))

Tube, water 1

Diagram Reference: 1

6DA4436100 (X(25.2"))

Tube, water 1

Diagram Reference: 1

9044523002 (L(20.3"))

Hose

Diagram Reference: 2

6E54436501

Damper, water seal 1

Diagram Reference: 3

9020216061 (X(25.2"))

Washer, plate(663)

Diagram Reference: 4

9360816M16

Pin, dowel(6t4)

Diagram Reference: 5

97E9510645

Bolt, hexagon w/w deep recess

Diagram Reference: 6

9011910072

Bolt, with washer

Diagram Reference: 7

6J94521400

Cover, water inlet

Diagram Reference: 8

6J94521500

Cover, water inlet

Diagram Reference: 9

9015205M08

Screw, countersunk

Diagram Reference: 10

9018505002

Nut nylon (sus)(ex4)

Diagram Reference: 11

6K14537102

Tab-trim

Diagram Reference: 12

9010510M00

Bolt, hexagon (663)

Diagram Reference: 13

63P4598700

Spacer 1

Diagram Reference: 14

6884599701

Spacer 2

Diagram Reference: 15

9299018200

Washer (6e5)

Diagram Reference: 16

9017118M04

Nut, castle (6e5)

Diagram Reference: 17

9149040030

Pin, cotter (663)

Diagram Reference: 18

60J4597000 (UR SDS PROP.)

Propeller (3X14-1/4"X14"-Ml)

Diagram Reference: 19

60J4597200 (UR SDS PROP.)

Propeller (3x14-1/4 x16 -ml)

Diagram Reference: 19

60J4597400 (UR SDS PROP.)

Propeller (3X14-1/4"X18"-Ml)

Diagram Reference: 19

60J4597600 (UR SDS PROP.)

Propeller (3X14-1/4"X20"-Ml)

Diagram Reference: 19

60J4597800 (UR SDS PROP.)

Propeller (3X14-1/4"X22"-Ml)

Diagram Reference: 19

68G4593020 (UR SDS PROP.)

Reliance sds (3x14-1/2"x14"-ml

Diagram Reference: 19

68G4597020 (UR SDS PROP.)

Reliance sds (3x14-1/2"x15" ml

Diagram Reference: 19

68G4597220 (UR SDS PROP.)

Reliance sds (3x14-1/4"x17"-ml

Diagram Reference: 19

6CF4597420 (UR SDS PROP.)

Sws2 w/sds (3x14-3/4 x23-tl)

Diagram Reference: 19

6CF4593620 (UR SDS PROP.)

Sws2 w/sds (3x14-3/4 x22 -tl)

Diagram Reference: 19

6CF4597220 (UR SDS PROP.)

Sws2 w/sds (3x15 x21-tl)

Diagram Reference: 19

6CF4593220 (UR SDS PROP.)

Sws2 w/sds (3x15 x20-tl)

Diagram Reference: 19

6CF4597020 (UR SDS PROP.)

Sws2 w/sds (3x15-1/4 x19-tl)

Diagram Reference: 19

6CF4593420 (UR SDS PROP.)

Sws2 w/sds (3x15-1/4 x18 -tl)

Diagram Reference: 19

68G4597620 (UR SDS PROP.)

Reliance sds (3x13-3/4"x21"-ml

Diagram Reference: 19

68G4597420 (UR SDS PROP.)

Reliance sds (3x13-3/4"x19"-ml

Diagram Reference: 19

68G4597820 (UR SDS PROP.)

Reliance sds (3x14-1/4"x18"-ml

Diagram Reference: 19

6CE45C8110

Damper rubber, propeller 1

Diagram Reference: 20

6K14597600 (UR NORMAL PROP.)

Propeller (3x13-3/8"x23"-ml)

Diagram Reference: 21

6K14597201 (UR NORMAL PROP.)

Propeller (3x13-3/4"x21"-ml)

Diagram Reference: 21

6K14597402 (UR NORMAL PROP.)

Propeller (3x13-3/4"x19"-ml1)

Diagram Reference: 21

6K14594500 (UR NORMAL PROP.)

Propeller (3x14 x19 -ml)

Diagram Reference: 21

6K14597802 (UR NORMAL PROP.)

Propeller (3x13-3/4"x17"-ml1)

Diagram Reference: 21

6K14594700 (UR NORMAL PROP.)

Propeller (3x14-1/2 x17 -ml)

Diagram Reference: 21
