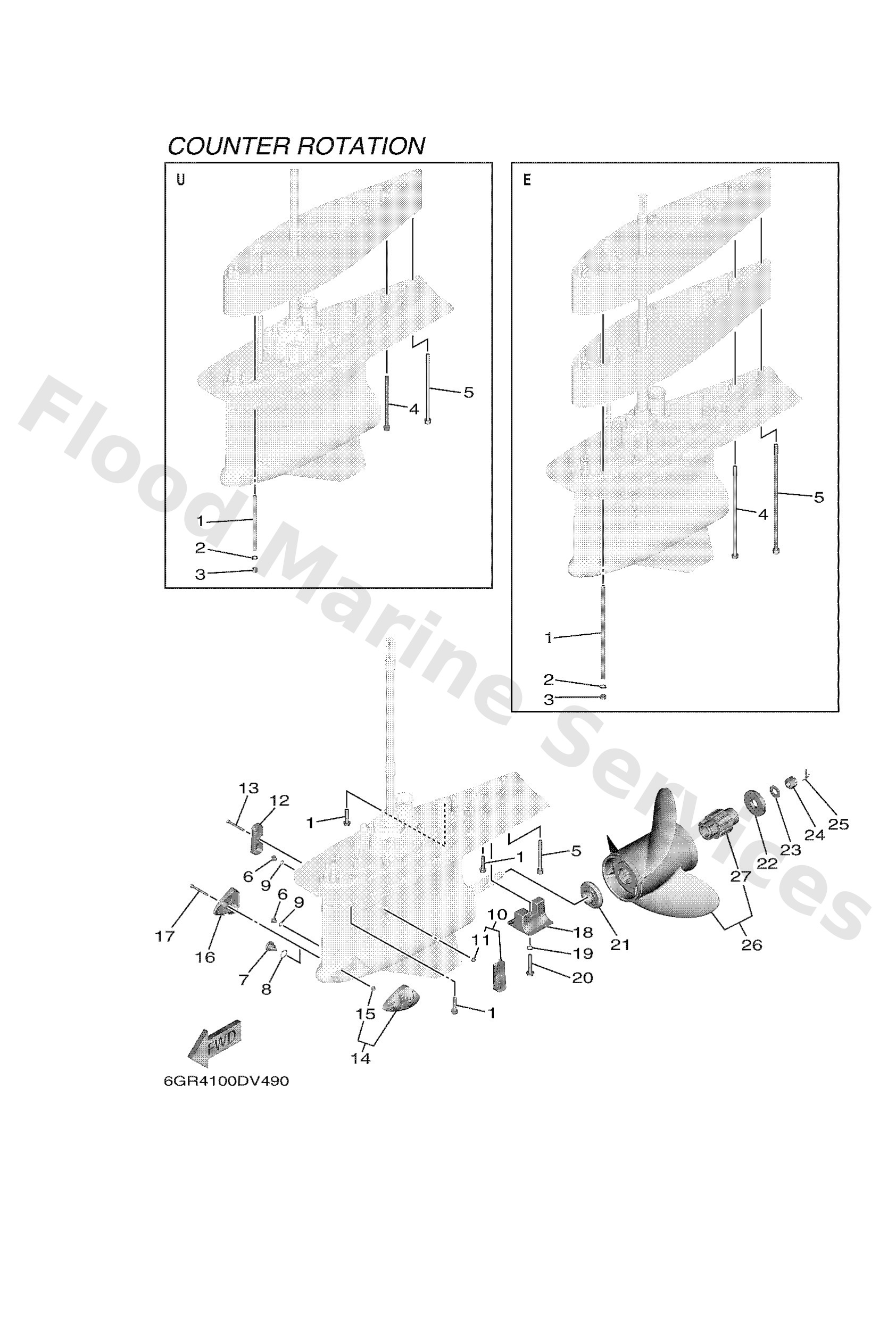

Diagram: LOWER CASING & DRIVE 6

Diagram

Parts List

9011610067 (UR U(30.2"))

Bolt, stud

Diagram Reference: 1

9011610066 (UR E(35.2"))

Bolt, stud

Diagram Reference: 1

9011910024 (UR X(25.2"))

Bolt, with washer

Diagram Reference: 1

9299510600 (U(30.2"),E(35.2"))

Washer, plate

Diagram Reference: 2

9538010600 (U(30.2"),E(35.2"))

Nut(624)

Diagram Reference: 3

9011910009 (UR U(30.2"))

Bolt, with washer

Diagram Reference: 4

9011910060 (UR E(35.2"))

Bolt, with washer

Diagram Reference: 4

9011010055 (UR E(35.2"))

Bolt, hexagon socket head

Diagram Reference: 5

9011010054 (UR U(30.2"))

Bolt, hexagon socket head

Diagram Reference: 5

9011010053 (UR X(25.2"))

Bolt, hexagon socket head

Diagram Reference: 5

9034008003

Plug, straight screw

Diagram Reference: 6

6GR4534100

Plug, drain

Diagram Reference: 7

9321019123

O-ring (646)

Diagram Reference: 8

9321009165

O-ring

Diagram Reference: 9

6GR4521401

Cover, water inlet 1

Diagram Reference: 10

9018506M07

Nut, self-locking(6e5)

Diagram Reference: 11

6GR4521501

Cover, water inlet 2

Diagram Reference: 12

9011006425

Bolt, hexagon socket head

Diagram Reference: 13

6KN4522400

Cover, water inlet 3

Diagram Reference: 14

6KN4522500

Cover, water inlet 4

Diagram Reference: 16

6AW4537300

Anode

Diagram Reference: 18

9299010300

Washer

Diagram Reference: 19

9010510257

Bolt, flange

Diagram Reference: 20

6GR4598700

Spacer 1

Diagram Reference: 21

6GR4599700

Spacer 2

Diagram Reference: 22

9020119M01

Washer, plate(6u1)

Diagram Reference: 23

9017118M04

Nut, castle (6e5)

Diagram Reference: 24

9149040030

Pin, cotter (663)

Diagram Reference: 25

6GS4597010 (UR 3 BLADE)

Xto prop (ss 3x17-1/8 x15-yl)

Diagram Reference: 26

6GS4597210 (UR 3 BLADE)

Xto prop (ss 3x16-7/8 x17-yl)

Diagram Reference: 26

6GS4597410 (UR 3 BLADE)

Xto prop (ss 3x16-5/8 x19-yl)

Diagram Reference: 26

6GS4597610 (UR 3 BLADE)

Xto prop (ss 3x16-3/8 x21-yl)

Diagram Reference: 26

6GS4597810 (UR 3 BLADE)

Xto prop (ss 3x16-1/8 x23-yl)

Diagram Reference: 26

6GS4593010 (UR 3 BLADE)

Xto prop (ss 3x 16 x25-yl)

Diagram Reference: 26

6GS4593810 (UR 3 BLADE)

Xto prop (ss 3x16-5/8 x18-yl)

Diagram Reference: 26

6GS4593610 (UR 3 BLADE)

Xto prop (ss 3x16-3/8 x20-yl)

Diagram Reference: 26

6GS4593410 (UR 3 BLADE)

Xto prop (ss 3x16-1/8 x22-yl)

Diagram Reference: 26

6GS4593210 (UR 3 BLADE)

Xto prop (3x16" x 24"-yl)

Diagram Reference: 26

6GS45D7010 (UR 3 BLADE)

Xto prop (ss 3x16-7/8 x16-yl)

Diagram Reference: 26

6GS45D7210 (UR 3 BLADE)

Xto prop (ss 3 x16 x 26-yl)

Diagram Reference: 26

6GS45D7420 (UR 3 BLADE)

Propeller (3X16"X27"-Yl2)

Diagram Reference: 26

6GR45C8110

Damper rubber, propeller 1

Diagram Reference: 27
