Parts List

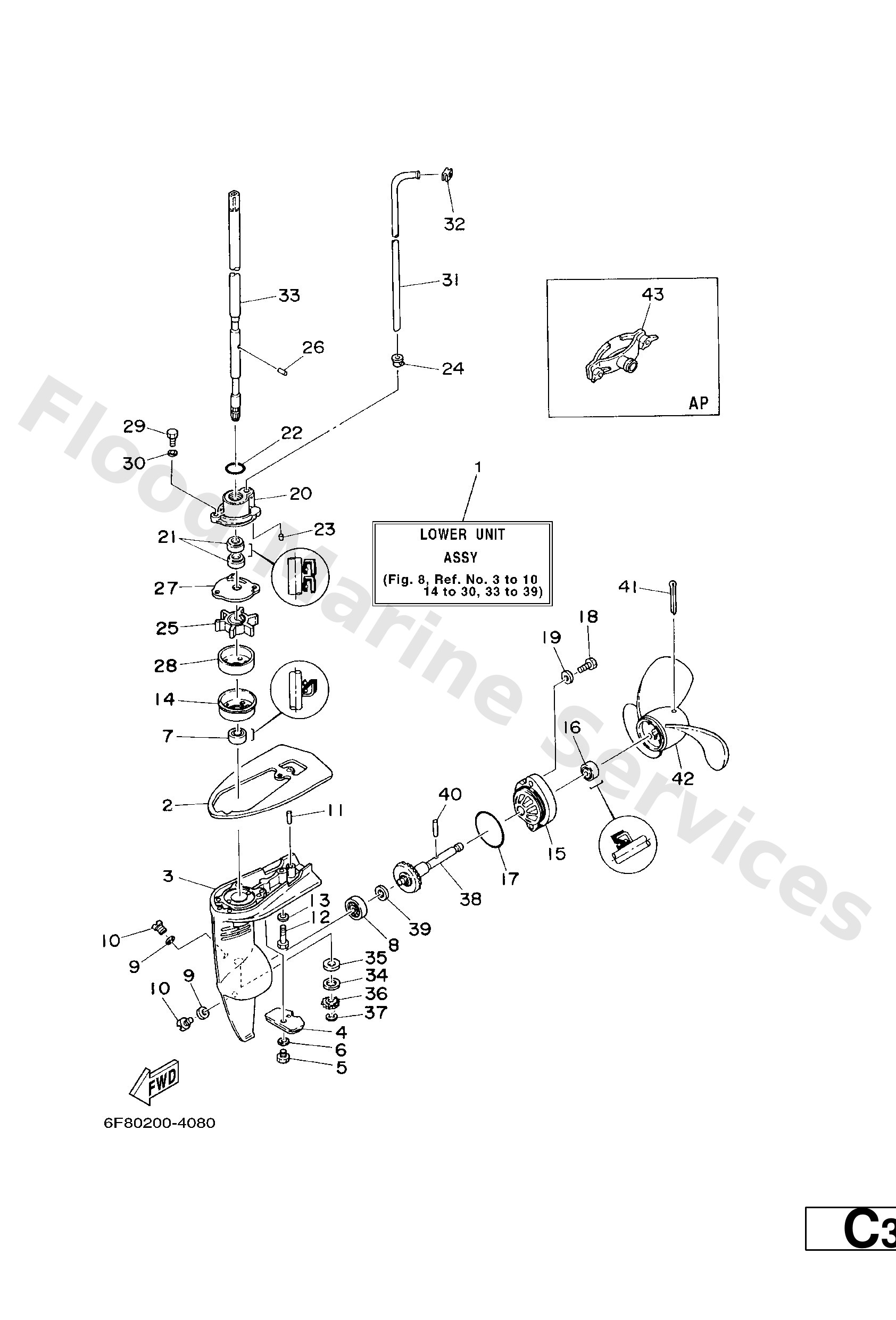

Lower unit assembly
Diagram Reference: 1
Plate
Diagram Reference: 2
Casing, Lower
Diagram Reference: 3
Anode
Diagram Reference: 4
Bolt, flange deep recess
Diagram Reference: 5
Washer, tooth
Diagram Reference: 6
Oil seal (11x21x8-646)
Diagram Reference: 7
Brg,r-b 6000 26mm 19g ky
Diagram Reference: 8
Gasket
Diagram Reference: 9
Plug, straight screw
Diagram Reference: 10
Pin, dowel b (6a1)
Diagram Reference: 11
Bolt(jf7)
Diagram Reference: 12
Washer, plain (646)
Diagram Reference: 13
Protector, oil seal
Diagram Reference: 14
Cap, lower casing
Diagram Reference: 15
Oil seal (10x21x10-646)
Diagram Reference: 16
O-ring (183)
Diagram Reference: 17
Bolt(gj3)
Diagram Reference: 18
Washer, plain (646)
Diagram Reference: 19
Cover,water pump housing
Diagram Reference: 20
Oil seal(6a1)
Diagram Reference: 21
O-ring (646)
Diagram Reference: 22
Pin,dowel (646)
Diagram Reference: 23
Damper, water seal 2
Diagram Reference: 24
Impeller
Diagram Reference: 25
Pin, dowel
Diagram Reference: 26
Outer plate,cartridge
Diagram Reference: 27
Insert, cartridge
Diagram Reference: 28
Bolt(6a1)
Diagram Reference: 29
Washer, plain (646)
Diagram Reference: 30
Tube, water
Diagram Reference: 31
Damper, water seal 1
Diagram Reference: 32
Drive shaft assembly
Diagram Reference: 33
Washer, plate (6e0)
Diagram Reference: 34
Shim (T)0.30Mm)
Diagram Reference: 35
Shim (T)0.40Mm)
Diagram Reference: 35
Shim (T)0.50Mm)
Diagram Reference: 35
Pinion
Diagram Reference: 36
Circlip(53l)
Diagram Reference: 37
Gear
Diagram Reference: 38
Shim (t:0.30mm)
Diagram Reference: 39
Shim (t:0.40mm)
Diagram Reference: 39
Shim (t:0.50mm)
Diagram Reference: 39
Pin, straight(6a1)
Diagram Reference: 40
Pin, cotter (am5)
Diagram Reference: 41
Propeller assembly (3x7-1/4"x4"-a)
Diagram Reference: 42
Propeller (3x7-1/4 x5-1/2 -a)
Diagram Reference: 42
Propeller (3x7-1/4 x4-1/2 -a)
Diagram Reference: 42
Plug, Water Check
Diagram Reference: 43
