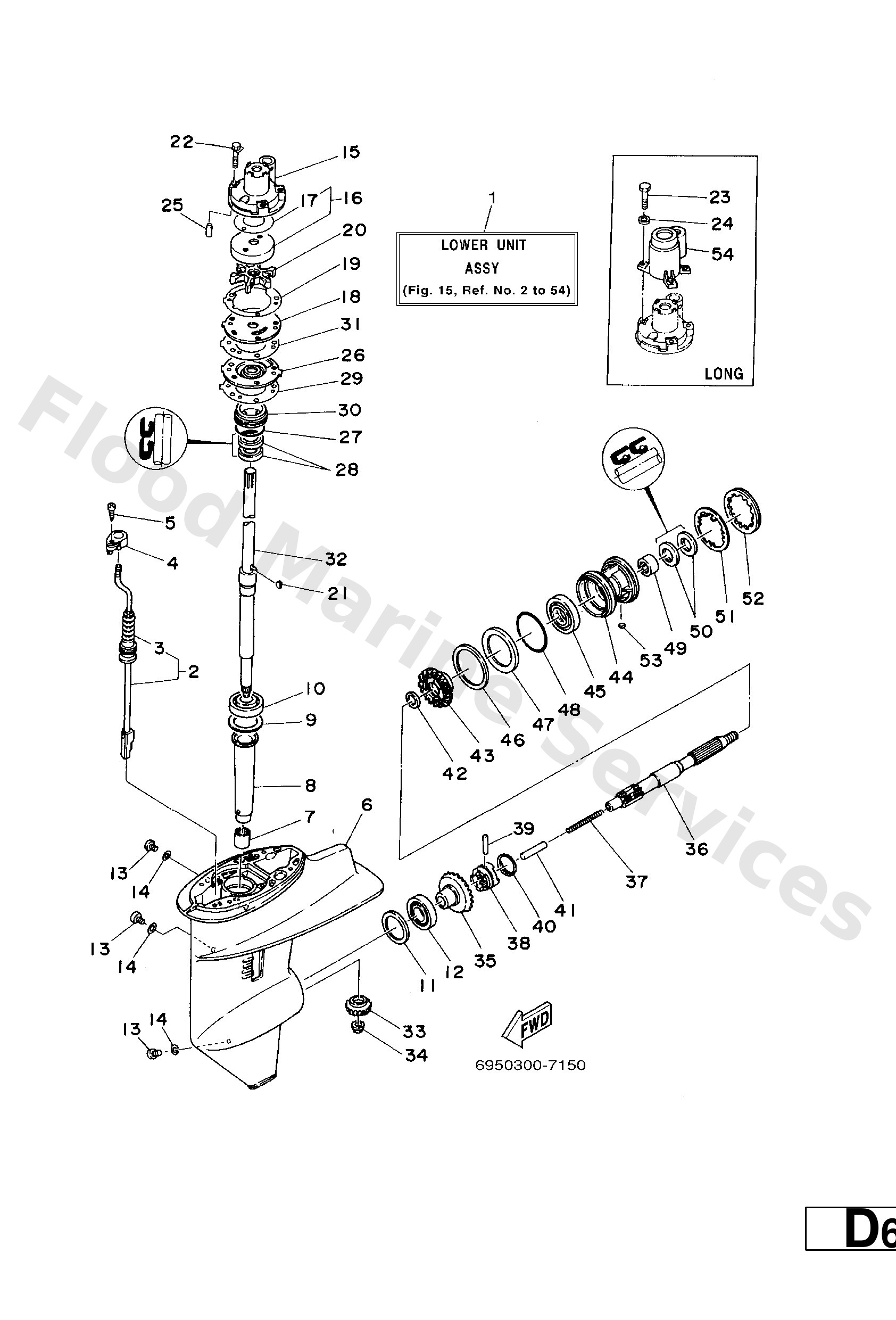

Parts List
Lower unit assembly
Diagram Reference: 1
Lower unit assembly
Diagram Reference: 1
Shift cam assembly
Diagram Reference: 2
Shift Cam assembly
Diagram Reference: 2
Boot, shift rod
Diagram Reference: 3
Bracket
Diagram Reference: 4
Screw, tapping(6u1)
Diagram Reference: 5
Casing, lower
Diagram Reference: 6
Brg,cyl-cal roller (689)
Diagram Reference: 7
Sleeve, Drive Shaft
Diagram Reference: 8
Shim (t:0.15mm)
Diagram Reference: 9
Shim (t:0.50mm)
Diagram Reference: 9
Shim (t:0.40mm)
Diagram Reference: 9
Shim (t:0.30mm)
Diagram Reference: 9
Shim (t:0.18mm)
Diagram Reference: 9
Shim (t:0.12mm)
Diagram Reference: 9
Shim (t:0.10mm)
Diagram Reference: 9
Brg,tapered roller 42mm (689)
Diagram Reference: 10
Shim (t:0.15mm)
Diagram Reference: 11
Shim (t:0.50mm)
Diagram Reference: 11
Shim (t:0.40mm)
Diagram Reference: 11
Shim (t:0.30mm)
Diagram Reference: 11
Shim (t:0.18mm)
Diagram Reference: 11
Shim (t:0.12mm)
Diagram Reference: 11
Shim (t:0.10mm)
Diagram Reference: 11
Brg,cyl-cal roller 0.19g nt
Diagram Reference: 12
Plug, straight screw
Diagram Reference: 13
Gasket
Diagram Reference: 14
Housing, water pump
Diagram Reference: 15
Insert cartridge comp.
Diagram Reference: 16
Rubber, water seal 3
Diagram Reference: 17
Outer plate, cartridge
Diagram Reference: 18
Gasket, cartridge
Diagram Reference: 19
Impeller
Diagram Reference: 20
Key, woodruff
Diagram Reference: 21
Bolt, With Washer
Diagram Reference: 22
Bolt(j52)
Diagram Reference: 23
Washer, plain (646)
Diagram Reference: 24
Pin, dowel (688)
Diagram Reference: 25
Protector, Oil Seal
Diagram Reference: 26
O-ring (682)
Diagram Reference: 27
Oil seal (22x36x6-663)
Diagram Reference: 28
Gasket, water pump
Diagram Reference: 29
Cover, oil seal
Diagram Reference: 30
Gasket, water pump
Diagram Reference: 31
Drive shaft comp
Diagram Reference: 32
Drive shaft comp
Diagram Reference: 32
Pinion
Diagram Reference: 33
Nut (689)
Diagram Reference: 34
Gear
Diagram Reference: 35
15 −
Diagram Reference: 36
Spring compression648456360000
Diagram Reference: 37
Clutch, dog
Diagram Reference: 38
Pin straight 648456320000
Diagram Reference: 39
Ring, cross pin
Diagram Reference: 40
Plunger,shift
Diagram Reference: 41
Washer, plate(663)
Diagram Reference: 42
Gear 2
Diagram Reference: 43
Housing, bearing
Diagram Reference: 44
Bearing(2hr)
Diagram Reference: 45
Shim (t:0.50mm)
Diagram Reference: 46
Shim (t:0.40mm)
Diagram Reference: 46
Shim (t:0.30mm)
Diagram Reference: 46
Shim (t:0.18mm)
Diagram Reference: 46
Shim (t:0.15mm)
Diagram Reference: 46
Shim (t:0.12mm)
Diagram Reference: 46
Shim (t:0.10mm)
Diagram Reference: 46
Washer, thrust 2
Diagram Reference: 47
O-ring(6j8)
Diagram Reference: 48
Brg,cyl-cal roller 21g nt
Diagram Reference: 49
Oil seal
Diagram Reference: 50
Washer, claw(6a9)
Diagram Reference: 51
Nut
Diagram Reference: 52
Key, strait(663)
Diagram Reference: 53
Cover, Water Pump Housing
Diagram Reference: 54
