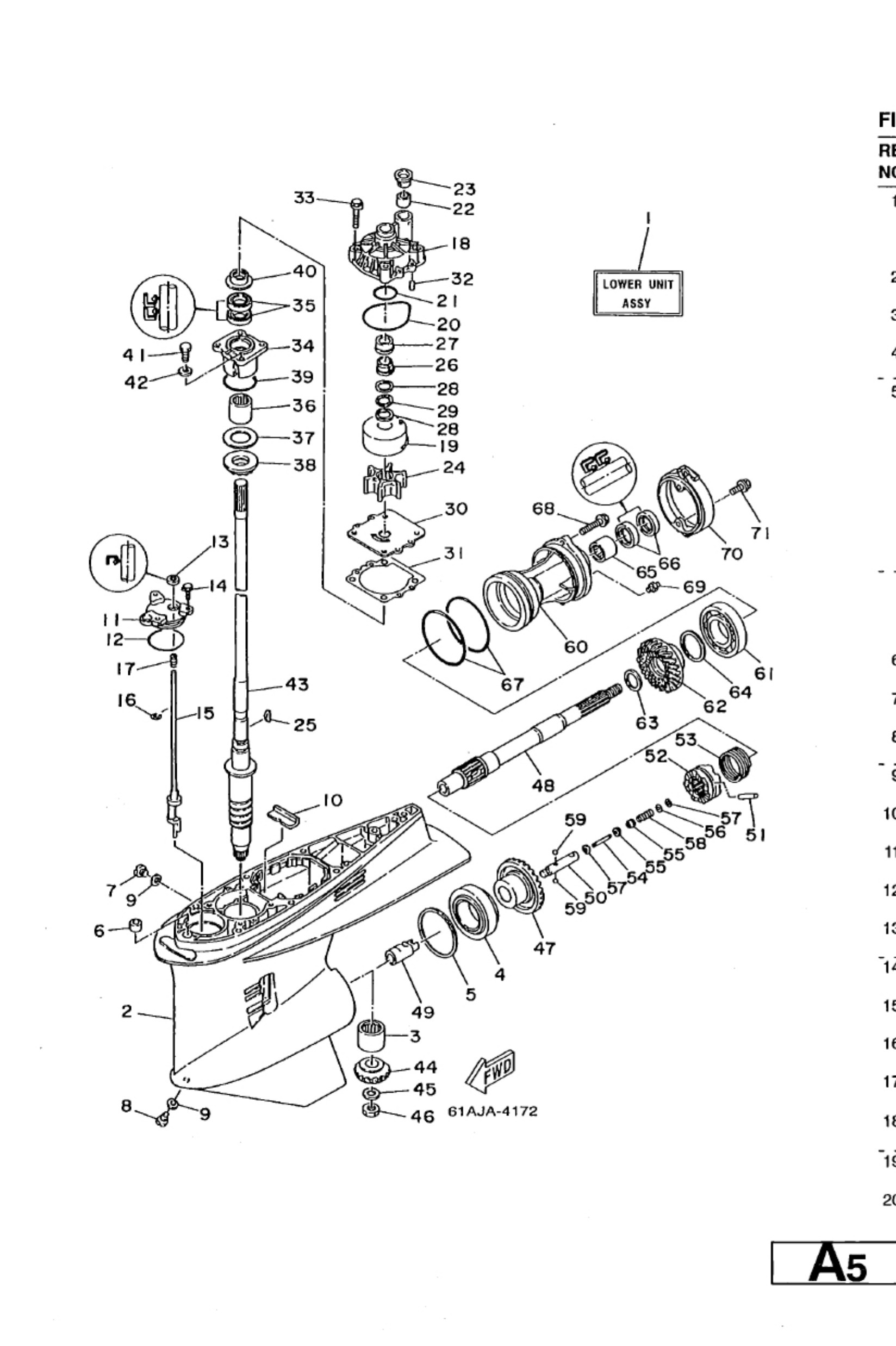

Diagram: LOWER CASING. DRIVE 1
Parts List
Bearing
Diagram Reference: 3
Bearing(61a)
Diagram Reference: 4
6Dv-82590-00
Diagram Reference: 5
Shim (t:0.12mm)
Diagram Reference: 5
Shim (t:0.15mm)
Diagram Reference: 5
Shim (t:0.18mm)
Diagram Reference: 5
Shim (t:0.30mm)
Diagram Reference: 5
Damper, water seal 2
Diagram Reference: 6
Plug, straight screw
Diagram Reference: 7
Plug, drain
Diagram Reference: 8
Plate
Diagram Reference: 11
93210-64488
Diagram Reference: 12
Oil seal
Diagram Reference: 13
Bolt, With Washer
Diagram Reference: 14
Shift cam assembly
Diagram Reference: 15
Circlip(2r6)
Diagram Reference: 16
O-ring (6e5)
Diagram Reference: 20
Washer, wave(61a)
Diagram Reference: 20
O-ring (6g8)
Diagram Reference: 21
Key, Woodruff
Diagram Reference: 25
Spacer, 1
Diagram Reference: 26
Collar, drive shaft
Diagram Reference: 27
Washer, Plate
Diagram Reference: 28
Outer plate, cartridge
Diagram Reference: 30
Gasket,water pump
Diagram Reference: 31
Pin, dowel (614)
Diagram Reference: 32
Bolt, with washer
Diagram Reference: 33
Housing, bearing
Diagram Reference: 34
Oil seal (6e5)
Diagram Reference: 35
Bearing
Diagram Reference: 36
Shim (t:0.12mm)
Diagram Reference: 37
Shim (t:0.50mm)
Diagram Reference: 37
Shim (t:0.40mm)
Diagram Reference: 37
Shim (t:0.10mm)
Diagram Reference: 37
Bearing
Diagram Reference: 38
Bolt (62g)
Diagram Reference: 41
Bearing
Diagram Reference: 65
Oil seal (6e5)
Diagram Reference: 66
O-ring (705)
Diagram Reference: 67
Bolt, Flange
Diagram Reference: 67
Nipple, grease(6t4)
Diagram Reference: 69
Cap, Lower Casing
Diagram Reference: 70
Bolt(6td)
Diagram Reference: 71
