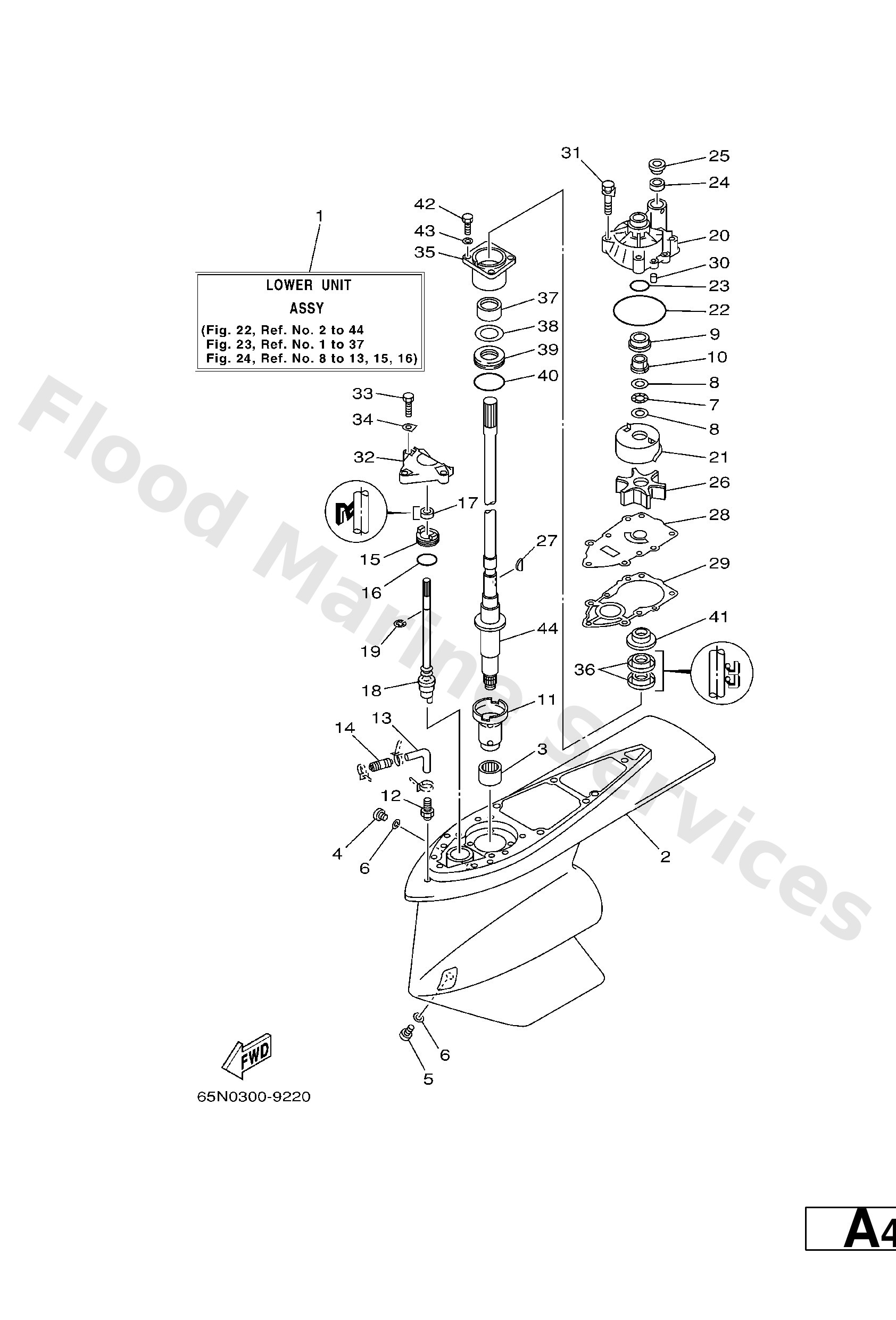

Diagram: LOWER CASING. DRIVE 1

Diagram

Parts List

65N4530001NA (L)
Lower unit assembly
Diagram Reference: 1
Get Part
65N4530100NA
Casing, Lower
Diagram Reference: 2
Get Part
93315628U9
Brg,cyl-cal roller (6e5)
Diagram Reference: 3
Get Part
9034008002
Plug, straight screw
Diagram Reference: 4
Get Part
6884534110
Plug, drain
Diagram Reference: 5
Get Part
9043008020
Gasket
Diagram Reference: 6
Get Part
9020622M19
Washer, wave(61a)
Diagram Reference: 7
Get Part
9020122M01
Washer, plate(61a)
Diagram Reference: 8
Get Part
61A4552700
Collar, drive shaft
Diagram Reference: 9
Get Part
61A4553800
Spacer, 1
Diagram Reference: 10
Get Part
65N4553600
Sleeve, Drive Shaft
Diagram Reference: 11
Get Part
6E54537800
Nipple, hose
Diagram Reference: 12
Get Part
9044507ME8 (L)
Hose (l250)
Diagram Reference: 13
Get Part
6E58355810
End, nipple
Diagram Reference: 14
Get Part
65N4532100
Plate
Diagram Reference: 15
Get Part
9321033M49
O-ring(6l5)
Diagram Reference: 16
Get Part
9310609014
Oil seal
Diagram Reference: 17
Get Part
65N4415000
-
Diagram Reference: 18
Get Part
9900108600
Circlip(2r6)
Diagram Reference: 19
Get Part
61A4431101
Housing, water pump
Diagram Reference: 20
Get Part
61A4432202
Insert, cartridge
Diagram Reference: 21
Get Part
9321086M38
O-ring (6e5)
Diagram Reference: 22
Get Part
9321037160
O-ring (6g8)
Diagram Reference: 23
Get Part
6E54436500
Damper, water seal 1
Diagram Reference: 24
Get Part
6E54431200
Cover, water pump housing
Diagram Reference: 25
Get Part
6E54435201
Impeller
Diagram Reference: 26
Get Part
9028004M05
Key, woodruff (6e5)
Diagram Reference: 27
Get Part
65N4432300
Outer plate, cartridge
Diagram Reference: 28
Get Part
65N44315A0
Gasket, water pump
Diagram Reference: 29
Get Part
9360612019
Pin, dowel (614)
Diagram Reference: 30
Get Part
9011908M14
Bolt, with washer
Diagram Reference: 31
Get Part
65N4431200
-
Diagram Reference: 32
Get Part
9709508035
Bolt(70w)
Diagram Reference: 33
Get Part
9020908M02
Washer, plate (688)
Diagram Reference: 34
Get Part
6E5453310094
Housing, bearing
Diagram Reference: 35
Get Part
9310128M16
Oil seal (6e5)
Diagram Reference: 36
Get Part
93317330U2
Bearing, cylindrical(6k0)
Diagram Reference: 37
Get Part
6E5455870112 (UR)
Shim (t:0.12mm)
Diagram Reference: 38
Get Part
6E5455870150 (UR)
Shim (t:0.50mm)
Diagram Reference: 38
Get Part
6E5455870140 (UR)
Shim (t:0.40mm)
Diagram Reference: 38
Get Part
6E5455870130 (UR)
Shim (t:0.30mm)
Diagram Reference: 38
Get Part
6E5455870118 (UR)
Shim (t:0.18mm)
Diagram Reference: 38
Get Part
6E5455870115 (UR)
Shim (t:0.15mm)
Diagram Reference: 38
Get Part
6E5455870110 (UR)
Shim (t:0.10mm)
Diagram Reference: 38
Get Part
93341930V2
Bearing, thrust(64d)
Diagram Reference: 39
Get Part
9321055M14
O-ring (70e)
Diagram Reference: 40
Get Part
6E54534400
Cover, oil seal
Diagram Reference: 41
Get Part
9709508025
Bolt (62g)
Diagram Reference: 42
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 43
Get Part
65N4550100
Drive Shaft Comp.
Diagram Reference: 44
Get Part
