Parts List

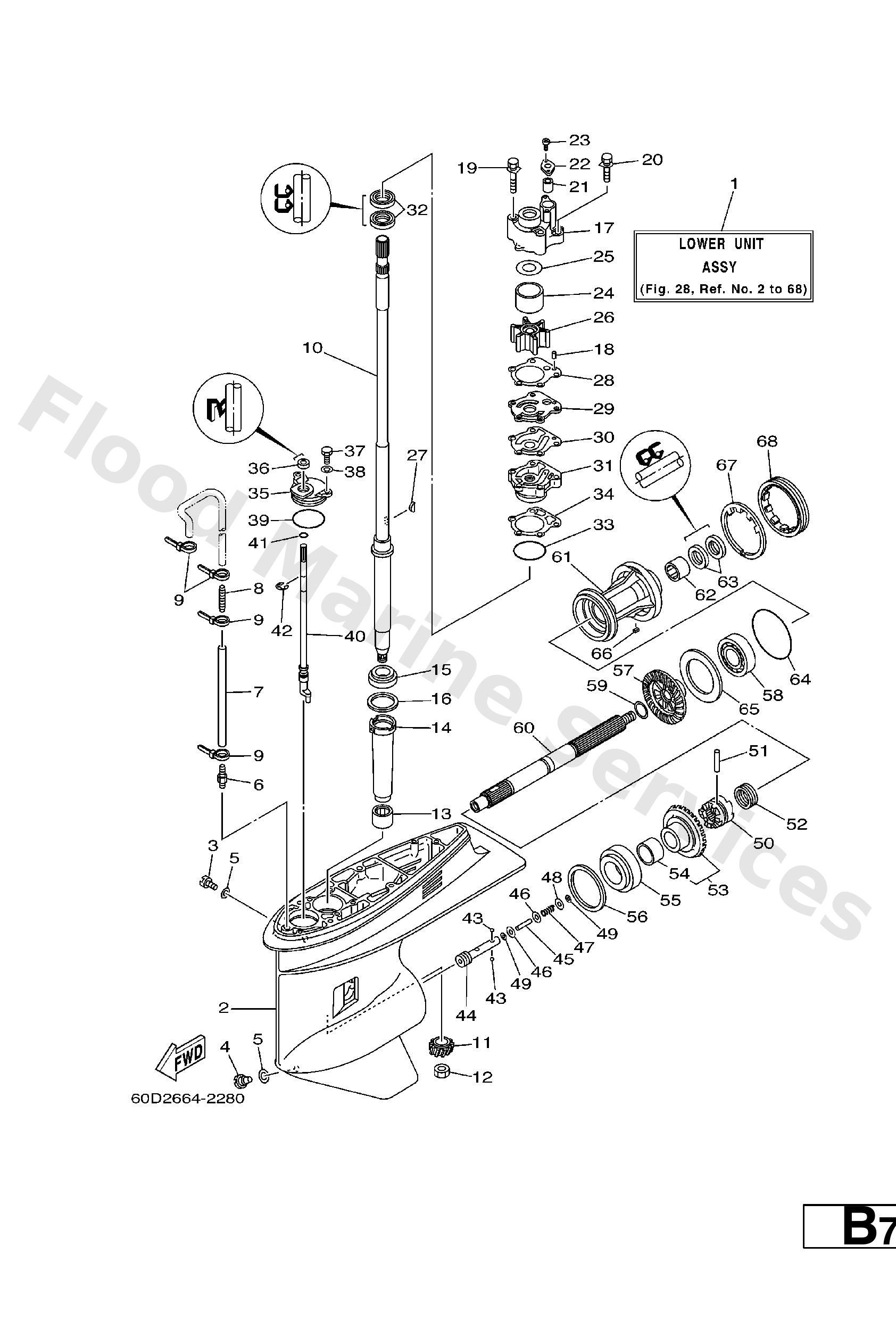

Lower Unit assembly
Diagram Reference: 1
Lower Unit assembly
Diagram Reference: 1
Casing, lower
Diagram Reference: 2
Plug, straight screw
Diagram Reference: 3
Plug, drain
Diagram Reference: 4
Gasket
Diagram Reference: 5
Nipple, hose
Diagram Reference: 6
Hose (l200)
Diagram Reference: 7
Hose (l570)
Diagram Reference: 7
End, nipple
Diagram Reference: 8
Clamp
Diagram Reference: 9
Drive shaft comp.
Diagram Reference: 10
Drive shaft comp.
Diagram Reference: 10
Pinion
Diagram Reference: 11
Nut, hexagon (688)
Diagram Reference: 12
Bearing
Diagram Reference: 13
Sleeve, drive shaft
Diagram Reference: 14
Brg,tapered roller 50mm (688)
Diagram Reference: 15
Shim (t:0.50mm)
Diagram Reference: 16
Shim (t:0.40mm)
Diagram Reference: 16
Shim (t:0.30mm)
Diagram Reference: 16
Shim (t:0.15mm)
Diagram Reference: 16
Shim (t:0.12mm)
Diagram Reference: 16
Shim (t:0.10mm)
Diagram Reference: 16
Shim (t:0.18mm)
Diagram Reference: 16
Housing, water pump
Diagram Reference: 17
Pin, dowel (688)
Diagram Reference: 18
Bolt, with washer
Diagram Reference: 19
Bolt, with washer(6h0)
Diagram Reference: 20
Damper, water seal 2
Diagram Reference: 21
Grommet (688)
Diagram Reference: 22
Screw, pan head tapping
Diagram Reference: 23
Insert, Cartridge
Diagram Reference: 24
Inner plate, cartridge
Diagram Reference: 25
Impeller
Diagram Reference: 26
Key, woodruff (688)
Diagram Reference: 27
Gasket,water pump 1
Diagram Reference: 28
Outer Plate, Cartridge
Diagram Reference: 29
Gasket,cartridge 0uter plate
Diagram Reference: 30
Housing, water pump set
Diagram Reference: 31
Oil seal
Diagram Reference: 32
O-ring
Diagram Reference: 33
Gasket,water pump 2
Diagram Reference: 34
Plate
Diagram Reference: 35
Oil seal
Diagram Reference: 36
Bolt, hexagon deep recess
Diagram Reference: 37
Washer, plain (646)
Diagram Reference: 38
O-ring (620)
Diagram Reference: 39
Shift cam assembly
Diagram Reference: 40
O-ring (11m)
Diagram Reference: 41
Circlip(2r6)
Diagram Reference: 42
Ball
Diagram Reference: 43
Slide, shift
Diagram Reference: 44
Shaft, free 1
Diagram Reference: 45
Plunger, shift
Diagram Reference: 46
Spring (6h1)
Diagram Reference: 47
Washer, plate 8077743700
Diagram Reference: 48
Nut, spring (6h1)
Diagram Reference: 49
Clutch, dog
Diagram Reference: 50
Pin, straight (688)
Diagram Reference: 51
Ping, cross pin
Diagram Reference: 52
Gear
Diagram Reference: 53
Bearing
Diagram Reference: 54
Bearing
Diagram Reference: 55
Shim (t:0.10mm)
Diagram Reference: 56
Shim (t:0.12mm)
Diagram Reference: 56
Shim (t:0.15mm)
Diagram Reference: 56
Shim (t:0.18mm)
Diagram Reference: 56
Shim (t:0.30mm)
Diagram Reference: 56
Shim (t:0.40mm)
Diagram Reference: 56
Shim (t:0.50mm)
Diagram Reference: 56
Gear
Diagram Reference: 57
Brg,r-b 6207 72mm 280g (688)
Diagram Reference: 58
Washer, plate
Diagram Reference: 59
Shaft, propeller
Diagram Reference: 60
Housing, bearing
Diagram Reference: 61
Brg,needle
Diagram Reference: 62
O-ring (6e5)
Diagram Reference: 64
Washer, thrust 2
Diagram Reference: 65
Key, strait(663)
Diagram Reference: 66
Washer, claw
Diagram Reference: 67
Nut
Diagram Reference: 68
