F2.5AMH (2003)
LOWER CASING. DRIVE 1

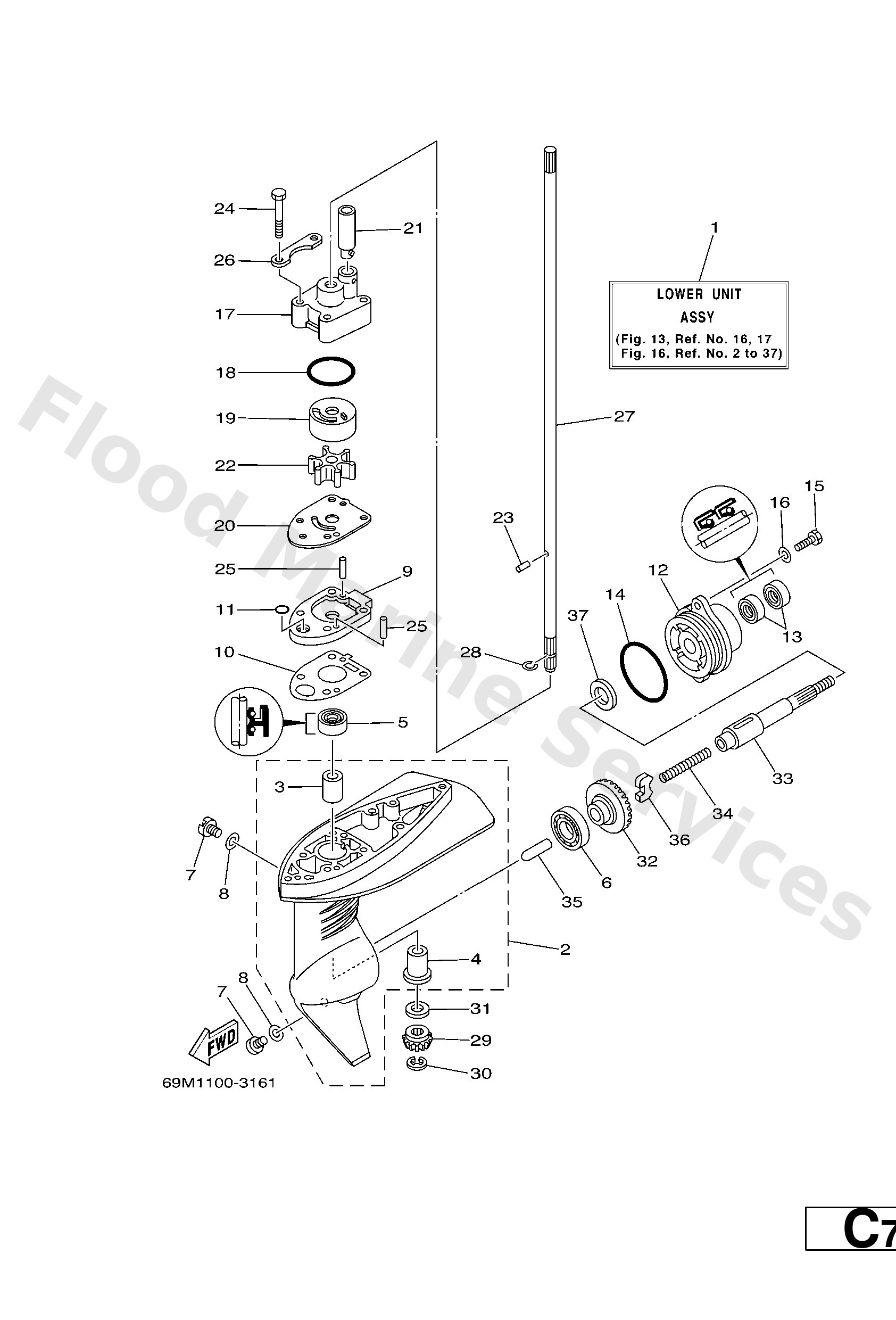

Diagram: LOWER CASING. DRIVE 1
Parts List
Reference
Description
Price
3
6L5−45316−09
Bushing, d/shaft 1 90380-09m23
Loading…
↗
4
6L5−45317−09
Bushing, d/shaft 2 90381-09m08
Loading…
↗
5
93103−09M41
Oil seal
Loading…
↗
6
93316−003Y0
Bearing
Loading…
↗
7
90340−08002
Plug, straight screw
Loading…
↗
8
90430−08801
Gasket
Loading…
↗
10
69M−G5315−A0
Packing,lower casing
Loading…
↗
11
93210−05001
O-ring
Loading…
↗
13
93101−13M12
Oil seal
Loading…
↗
14
93210−48214
O-ring
Loading…
↗
15
97095−06016
Bolt, hexagon deep recess
Loading…
↗
16
92995−06600
Washer, plain (646)
Loading…
↗
17
69M−G4311−00
Housing, water pump
Loading…
↗
18
93210−33M85
O-ring(6l5)
Loading…
↗
19
6L5−44322−00
Insert, cartridge
Loading…
↗
20
69M−G4323−00
Outer plate,cartridge
Loading…
↗
21
6E0−44366−00
Damper, water seal 2
Loading…
↗
22
6L5−44352−00
Impeller
Loading…
↗
23
93604−07M13
Pin, dowel(6l5)
Loading…
↗
24
97095−06040
Bolt (682)
Loading…
↗
25
93604−18080
Pin. dowel. (647)
Loading…
↗
26
69M−G4328−00
Plate
Loading…
↗
27
69M−G5511−00
S
Shaft, drive
Loading…
↗
27
69M−G5511−10
L
Shaft, drive
Loading…
↗
28
93440−08819
Circlip
Loading…
↗
29
6L5−45551−00
Pinion
Loading…
↗
30
99001−06600
Circlip(53l)
Loading…
↗
31
6L5−45533−00−21
UR
Shim (t:2.1mm)
Loading…
↗
31
6L5−45533−00−23
UR
Shim (t:2.3mm)
Loading…
↗
31
6L5−45533−00−22
UR
Shim (t:2.2mm)
Loading…
↗
31
6L5−45533−00−20
UR
Shim (T)2.0Mm)
Loading…
↗
32
6L5−45560−00
Gear
Loading…
↗
33
6L5−45611−00
Shaft, propeller
Loading…
↗
34
90501−10064
Spring, compression 6164563600
Loading…
↗
35
69M−G5635−00
Plunger, shift
Loading…
↗
36
6L5−45631−00
Clutch, dog
Loading…
↗
37
90201−13198
Washer 6474556600
Loading…
↗
