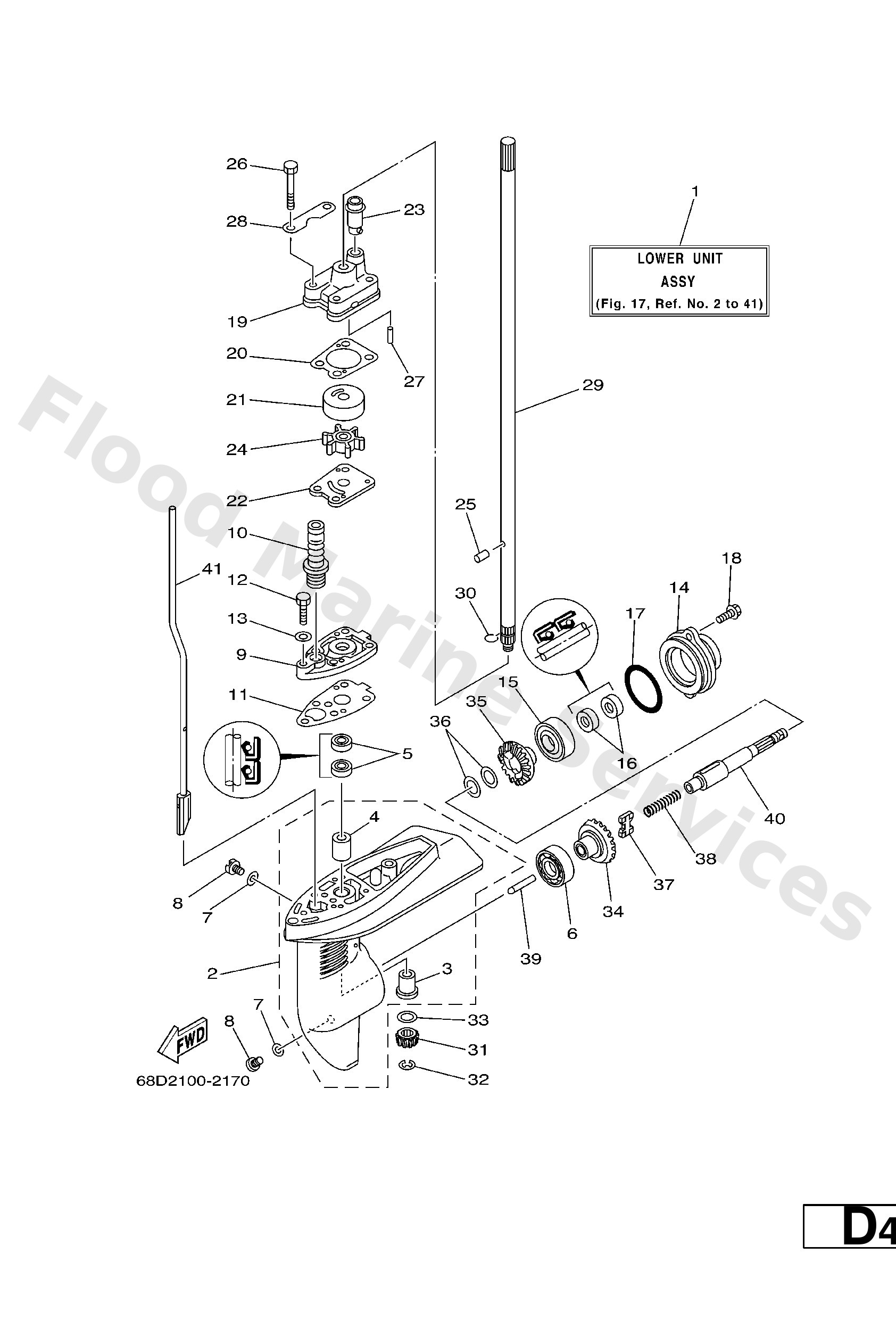

Diagram: LOWER CASING. DRIVE 1

Diagram

Parts List

6E0−45317−09
Bushing
Diagram Reference: 3
Get Part
6E0−45316−09
Bushing
Diagram Reference: 4
Get Part
93101−10M14
Oil seal
Diagram Reference: 5
Get Part
93306−004YH
Bearing (7k2)
Diagram Reference: 6
Get Part
90430−08801
Gasket
Diagram Reference: 7
Get Part
90340−08002
Plug, straight screw
Diagram Reference: 8
Get Part
68D−G5321−00
Plate
Diagram Reference: 9
Get Part
6L2−44147−00
Boot, shift rod
Diagram Reference: 10
Get Part
68D−G5315−A0
Packing, lower cas
Diagram Reference: 11
Get Part
97095−06025
Bolt
Diagram Reference: 12
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 13
Get Part
93101−13M12
Oil seal
Diagram Reference: 16
Get Part
93210−48214
O-ring
Diagram Reference: 17
Get Part
95895−06016
Bolt, flange deep recess
Diagram Reference: 18
Get Part
68D−G4311−01
Housing water pump
Diagram Reference: 19
Get Part
68D−G4315−A0
Gasket, water pump
Diagram Reference: 20
Get Part
68D−G4322−00
Insert, cartridge
Diagram Reference: 21
Get Part
6E0−44323−00
Outer plate, cartridge
Diagram Reference: 22
Get Part
67D−44366−00
Damper, water seal 2
Diagram Reference: 23
Get Part
6E0−44352−00
Impeller
Diagram Reference: 24
Get Part
93604−09066
Pin, dowel
Diagram Reference: 25
Get Part
97095−06045
Bolt, hexagon
Diagram Reference: 26
Get Part
93604−18080
Pin. dowel. (647)
Diagram Reference: 27
Get Part
68D−G4328−00
Plate
Diagram Reference: 28
Get Part
68D−G5511−00 (S)
Shaft, drive
Diagram Reference: 29
Get Part
68D−G5511−10 (L)
Shaft, drive
Diagram Reference: 29
Get Part
90467−08M01
Clip (6e0)
Diagram Reference: 30
Get Part
6E0−45551−00
Pinion (13t)
Diagram Reference: 31
Get Part
99001−06600
Circlip(53l)
Diagram Reference: 32
Get Part
90201−11M49
Washer, plate (6e0)
Diagram Reference: 33
Get Part
67D−45560−00
Gear
Diagram Reference: 34
Get Part
67D−45570−00
Gear
Diagram Reference: 35
Get Part
67D−45576−00
Washer, thrust 2
Diagram Reference: 36
Get Part
67D−45631−01
Clutch, dog
Diagram Reference: 37
Get Part
90501−10064
Spring, compression 6164563600
Diagram Reference: 38
Get Part
67D−45635−00
Plunger, shift
Diagram Reference: 39
Get Part
68D−G5611−10
Shaft, propeller
Diagram Reference: 40
Get Part
68D−G4150−00 (S)
Shift cam assembly
Diagram Reference: 41
Get Part
68D−G4150−10 (L)
Shift cam assembly
Diagram Reference: 41
Get Part
