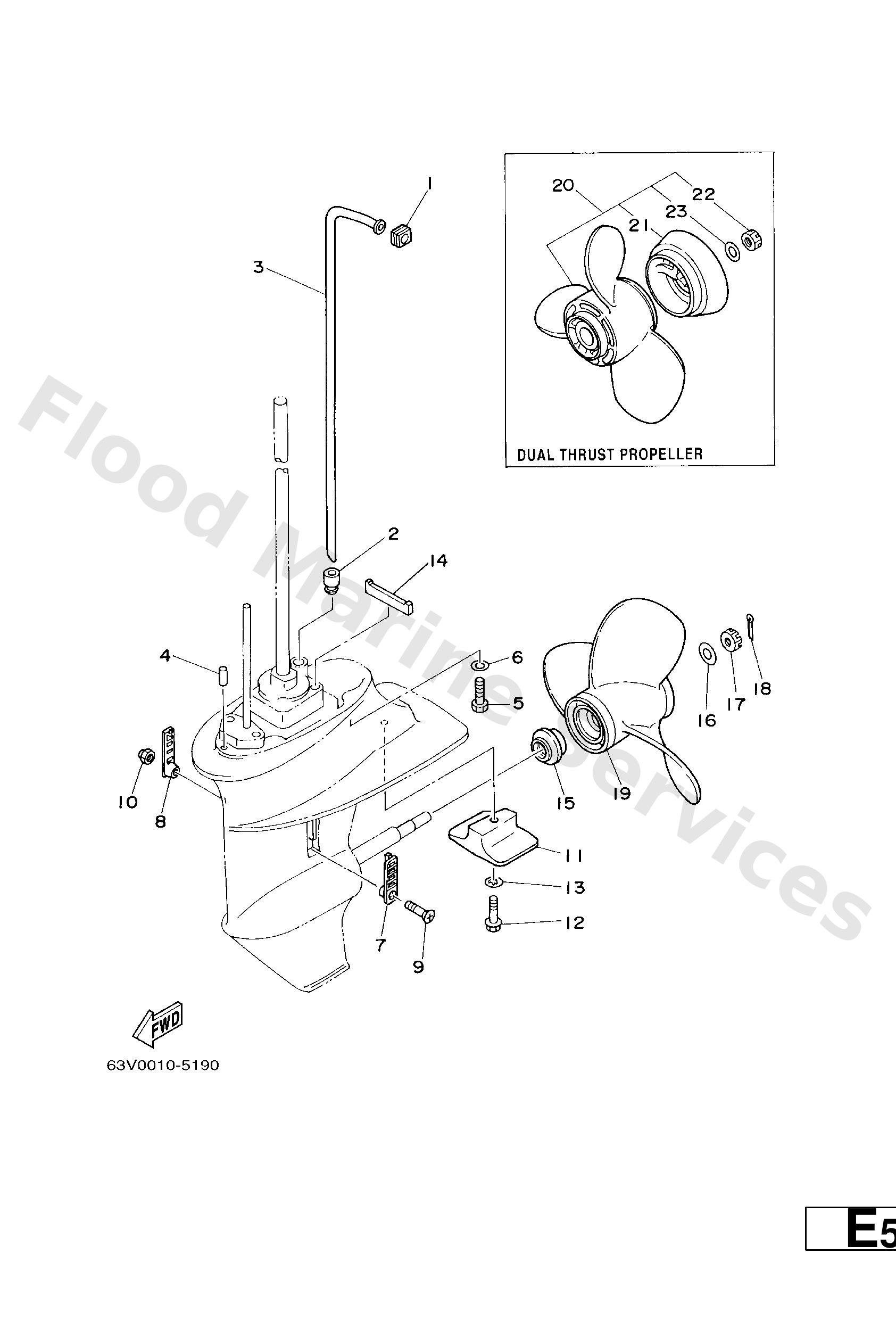

Diagram: LOWER CASING. DRIVE 2
Parts List
Damper, water seal 1
Diagram Reference: 1
Rubber, water seal 4
Diagram Reference: 2
Tube, water
Diagram Reference: 3
Tube, water
Diagram Reference: 3
Pin, dowel (688)
Diagram Reference: 4
Bolt, hexagon (fj1)
Diagram Reference: 5
Washer, plain (663)
Diagram Reference: 6
Cover, water inlet
Diagram Reference: 7
Cover, water inlet
Diagram Reference: 8
Screw, countersunk
Diagram Reference: 9
Nut nylon (sus)(ex4)
Diagram Reference: 10
Anode
Diagram Reference: 11
Bolt, flange deep recess
Diagram Reference: 12
Washer, tooth
Diagram Reference: 13
Damper, seal
Diagram Reference: 14
Spacer
Diagram Reference: 15
Washer, plate(6m7)
Diagram Reference: 16
Nut castle (683)
Diagram Reference: 17
Pin cotter
Diagram Reference: 18
Ring, deflector
Diagram Reference: 21
Nut, castle(6g8)
Diagram Reference: 22
Washer, plate(6g9)
Diagram Reference: 23
