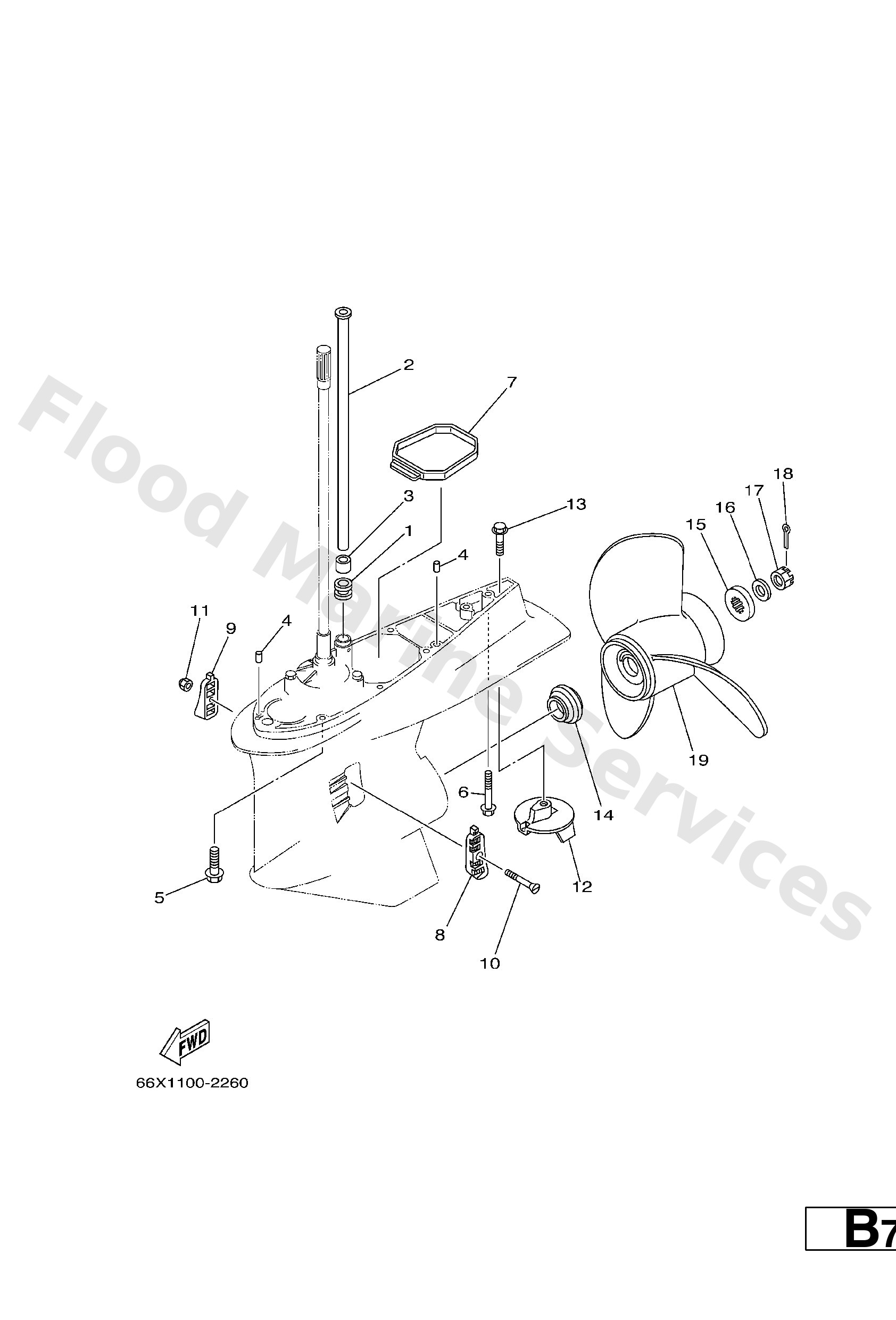

Diagram: LOWER CASING. DRIVE 2

Diagram

Parts List

6E5−44366−00
Damper, water seal 2
Diagram Reference: 1
Get Part
66K−44361−00
Tube, water
Diagram Reference: 2
Get Part
6E5−44365−00
Damper, water seal 1
Diagram Reference: 3
Get Part
93608−12M05
Pin, dowel b (6e5)
Diagram Reference: 4
Get Part
90101−10M70
Bolt(6j9)
Diagram Reference: 5
Get Part
90119−10MA2
Bolt, with washer
Diagram Reference: 6
Get Part
61A−45375−00
Damper, seal
Diagram Reference: 7
Get Part
61A−45214−00
Cover, water inlet
Diagram Reference: 8
Get Part
61A−45215−00
Cover, water inlet
Diagram Reference: 9
Get Part
90152−05M08
Screw, countersunk
Diagram Reference: 10
Get Part
90185−05002
Nut nylon (sus)(ex4)
Diagram Reference: 11
Get Part
69L−45371−00
Tab-trim
Diagram Reference: 12
Get Part
90105−10M00
Bolt, hexagon (663)
Diagram Reference: 13
Get Part
6E5−45987−01
Spacer 1
Diagram Reference: 14
Get Part
688−45997−01
Spacer 2
Diagram Reference: 15
Get Part
92990−18200
Washer (6e5)
Diagram Reference: 16
Get Part
90171−18M04
Nut, castle (6e5)
Diagram Reference: 17
Get Part
91490−40030
Pin, cotter (663)
Diagram Reference: 18
Get Part
66K−45970−B0 (UR)
Propeller (3X14−1/2”X27”−M1)
Diagram Reference: 19
Get Part
66K−45972−B0 (UR)
Propeller (3X14−1/2”X25”−M2)
Diagram Reference: 19
Get Part
