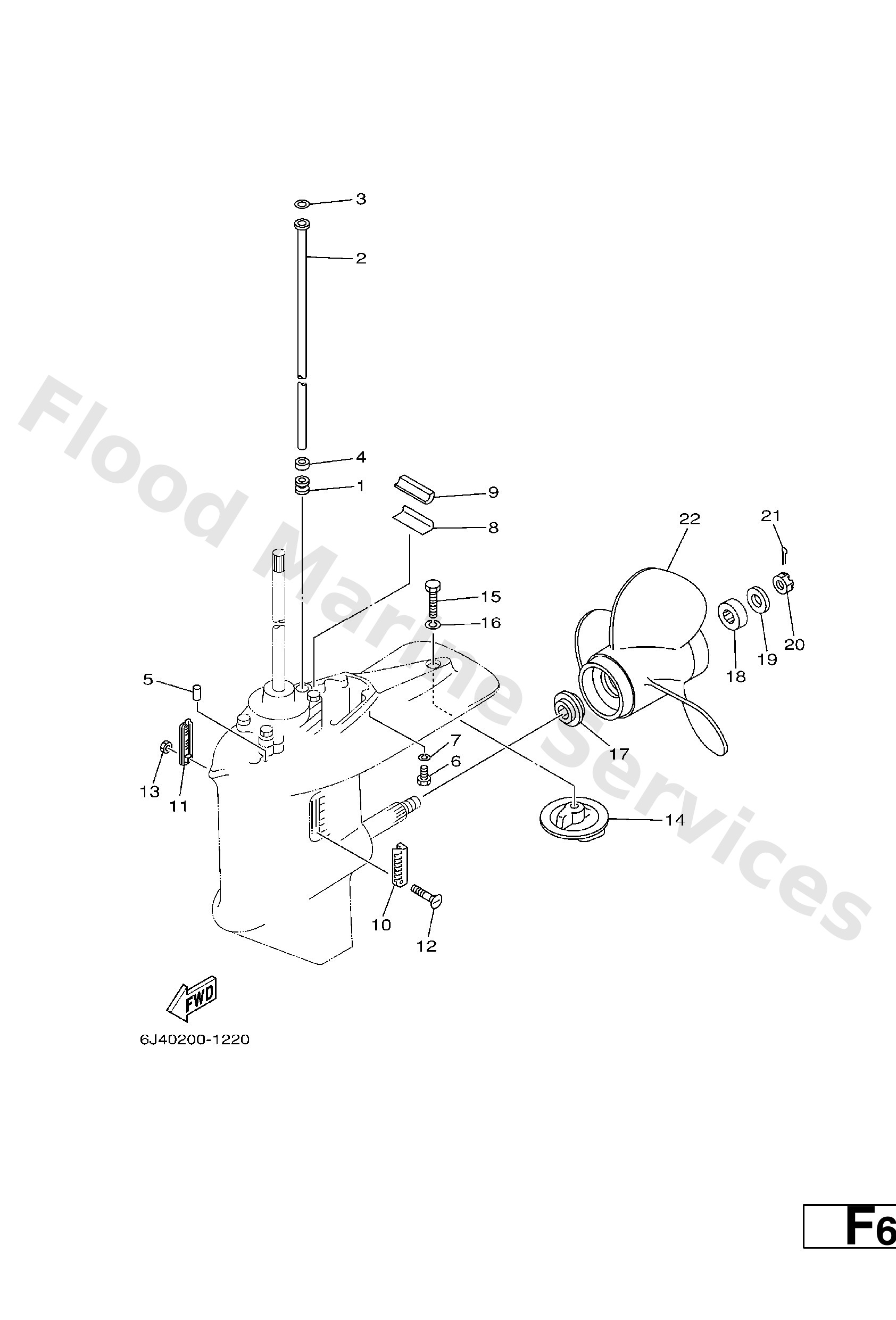

Diagram: LOWER CASING. DRIVE 2

Diagram

Parts List

663−44367−00

Damper, water seal 3

Diagram Reference: 1

676−44361−00 (S)

Tube, water 1

Diagram Reference: 2

6A0−44361−20 (Y)

Tube, water 1

Diagram Reference: 2

676−44361−10 (L)

Tube, water 1

Diagram Reference: 2

90202−12060

Washer, plate(663)

Diagram Reference: 3

90430−12072

Gasket

Diagram Reference: 4

93606−12019

Pin, dowel (614)

Diagram Reference: 5

97075−08030 (S/L)

Bolt, hexagon (fj1)

Diagram Reference: 6

92995−08100 (S/L)

Ybs67-8 washer, spring

Diagram Reference: 7

663−45375−00

Rubber, seal 2

Diagram Reference: 9

688−45214−02

Cover, water inlet

Diagram Reference: 10

688−45215−02

Cover, water inlet

Diagram Reference: 11

90152−05M09

Screw, countersunk

Diagram Reference: 12

90185−05002

Nut nylon (sus)(ex4)

Diagram Reference: 13

679−45371−00

Tab trim

Diagram Reference: 14

97095−10030

Bolt, hexagon

Diagram Reference: 15

92995−10100

Ybs67-10 washer, spring

Diagram Reference: 16

663−45987−02

Spacer

Diagram Reference: 17

670−45997−02

Spacer

Diagram Reference: 18

92990−16200

958-58204-00 washer,plain

Diagram Reference: 19

90171−16011

Nut, castle (663)

Diagram Reference: 20

91490−30025

Pin cotter

Diagram Reference: 21

663−45949−01−EL (UR)

Propeller (3x10-3/4"x16"-g)

Diagram Reference: 22

663−45952−02−EL (UR)

Propeller (3x11-3/8x12-g)

Diagram Reference: 22

663−45954−01−EL (UR)

Propeller (3x11-3/4"x10"-g)

Diagram Reference: 22

663−45956−01−EL (UR)

Propeller (3x12-1/4"x9"-g)

Diagram Reference: 22

663−45958−01−EL (UR)

Propeller (3x11-1/4"x14"-g)

Diagram Reference: 22

663−45930−00−98 (UR)

Propeller (3x10-1/4"x14"-g)

Diagram Reference: 22

663−45976−00−98 (UR)

Propeller (3x10-1/4"x15"-g)

Diagram Reference: 22

663−45978−00−98 (UR)

Propeller (3x10-1/4"x16"-g)

Diagram Reference: 22

663−45970−60−98 (UR)

Propeller (3x11-3/4"x12"-g)

Diagram Reference: 22

663−45972−60−98 (UR)

Propeller (3x12"x11"-g)

Diagram Reference: 22

663−45974−60−98 (UR)

Propeller (3x11-1/2"x13"-g)

Diagram Reference: 22
