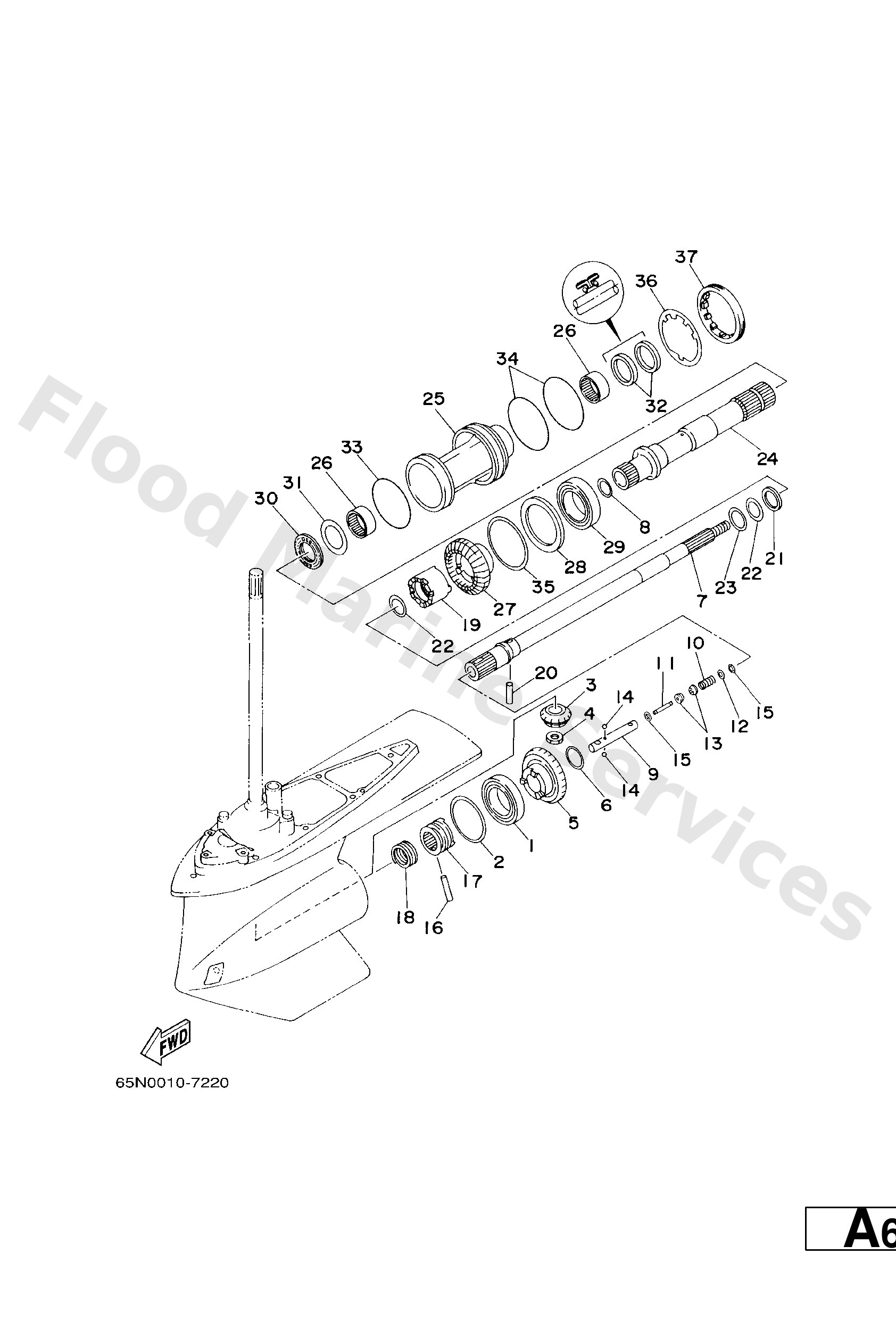

Diagram: LOWER CASING. DRIVE 2

Diagram

Parts List

9333200048
Bearing(6k0)
Diagram Reference: 1
Get Part
6G5455670110 (UR)
Shim (t:0.10mm)
Diagram Reference: 2
Get Part
6G5455670150 (UR)
Shim (t:0.50mm)
Diagram Reference: 2
Get Part
6G5455670140 (UR)
Shim (t:0.40mm)
Diagram Reference: 2
Get Part
6G5455670130 (UR)
Shim (t:0.30mm)
Diagram Reference: 2
Get Part
6G5455670115 (UR)
Shim (t:0.15mm)
Diagram Reference: 2
Get Part
6G5455670112 (UR)
Shim (t:0.12mm)
Diagram Reference: 2
Get Part
6G5455670118 (UR)
Shim (t:0.18mm)
Diagram Reference: 2
Get Part
65N4555100
Pinion
Diagram Reference: 3
Get Part
9017016M01
Nut, hexagon (688)
Diagram Reference: 4
Get Part
65N4556000
Gear
Diagram Reference: 5
Get Part
9020135M02
-
Diagram Reference: 6
Get Part
65N4561100
Shaft, propeller
Diagram Reference: 7
Get Part
9020128M03
-
Diagram Reference: 8
Get Part
65N4563400
Slide, Shift
Diagram Reference: 9
Get Part
9050110M77
Spring, compression(61a)
Diagram Reference: 10
Get Part
6H14566800
Shaft, free 1
Diagram Reference: 11
Get Part
9020102M00
Washer, plate(61a)
Diagram Reference: 12
Get Part
61A4563500
Plunger, shift
Diagram Reference: 13
Get Part
9350104011
Ball
Diagram Reference: 14
Get Part
9018302M03
Nut, spring (6h1)
Diagram Reference: 15
Get Part
9025008M07
Pin, straight (6g5)
Diagram Reference: 16
Get Part
65N4563100
Clutch, dog
Diagram Reference: 17
Get Part
6E54563301
Ring, cross pin
Diagram Reference: 18
Get Part
65N4563110
Clutch, Dog
Diagram Reference: 19
Get Part
9360642M22
Pin, Dowel
Diagram Reference: 20
Get Part
9038732M00
Collar
Diagram Reference: 21
Get Part
9020136M00
Washer, plate(65n)
Diagram Reference: 22
Get Part
9344036M09
Circlip
Diagram Reference: 23
Get Part
65N4561150
Shaft, propeller
Diagram Reference: 24
Get Part
65N453320094
Housing, bearing
Diagram Reference: 25
Get Part
93317445U9
Bearing, cylindrical(65n)
Diagram Reference: 26
Get Part
65N4557000
Gear
Diagram Reference: 27
Get Part
65N4557600
Washer, Thrust
Diagram Reference: 28
Get Part
93341445V3
Bearing
Diagram Reference: 30
Get Part
65N455780040 (UR)
Shim (T)0.40Mm)
Diagram Reference: 31
Get Part
65N455780050 (UR)
Shim (T)0.50Mm)
Diagram Reference: 31
Get Part
65N455780030 (UR)
Shim
Diagram Reference: 31
Get Part
65N455780018 (UR)
Shim (T)0.18Mm)
Diagram Reference: 31
Get Part
65N455780015 (UR)
Shim (T)0.15Mm)
Diagram Reference: 31
Get Part
65N455780012 (UR)
Shim (T)0.12Mm)
Diagram Reference: 31
Get Part
65N455780010 (UR)
Shim (T)0.10Mm)
Diagram Reference: 31
Get Part
9310145M59
Oil seal(65n)
Diagram Reference: 32
Get Part
9321098M33
O-ring (6a5)
Diagram Reference: 33
Get Part
9321103MH9
O-ring(65n)
Diagram Reference: 34
Get Part
65N455770010 (UR)
Shim (T)0.10Mm)
Diagram Reference: 35
Get Part
65N455770012 (UR)
Shim (T)0.12Mm)
Diagram Reference: 35
Get Part
65N455770015 (UR)
Shim (T)0.15Mm)
Diagram Reference: 35
Get Part
65N455770018 (UR)
Shim (T)0.18Mm)
Diagram Reference: 35
Get Part
65N455770030 (UR)
Shim (T)0.30Mm)
Diagram Reference: 35
Get Part
65N455770040 (UR)
Shim (T)0.40Mm)
Diagram Reference: 35
Get Part
65N455770050 (UR)
Shim (T)0.50Mm)
Diagram Reference: 35
Get Part
65N4538300
Washer, Claw
Diagram Reference: 36
Get Part
65N4538400
Nut
Diagram Reference: 37
Get Part
