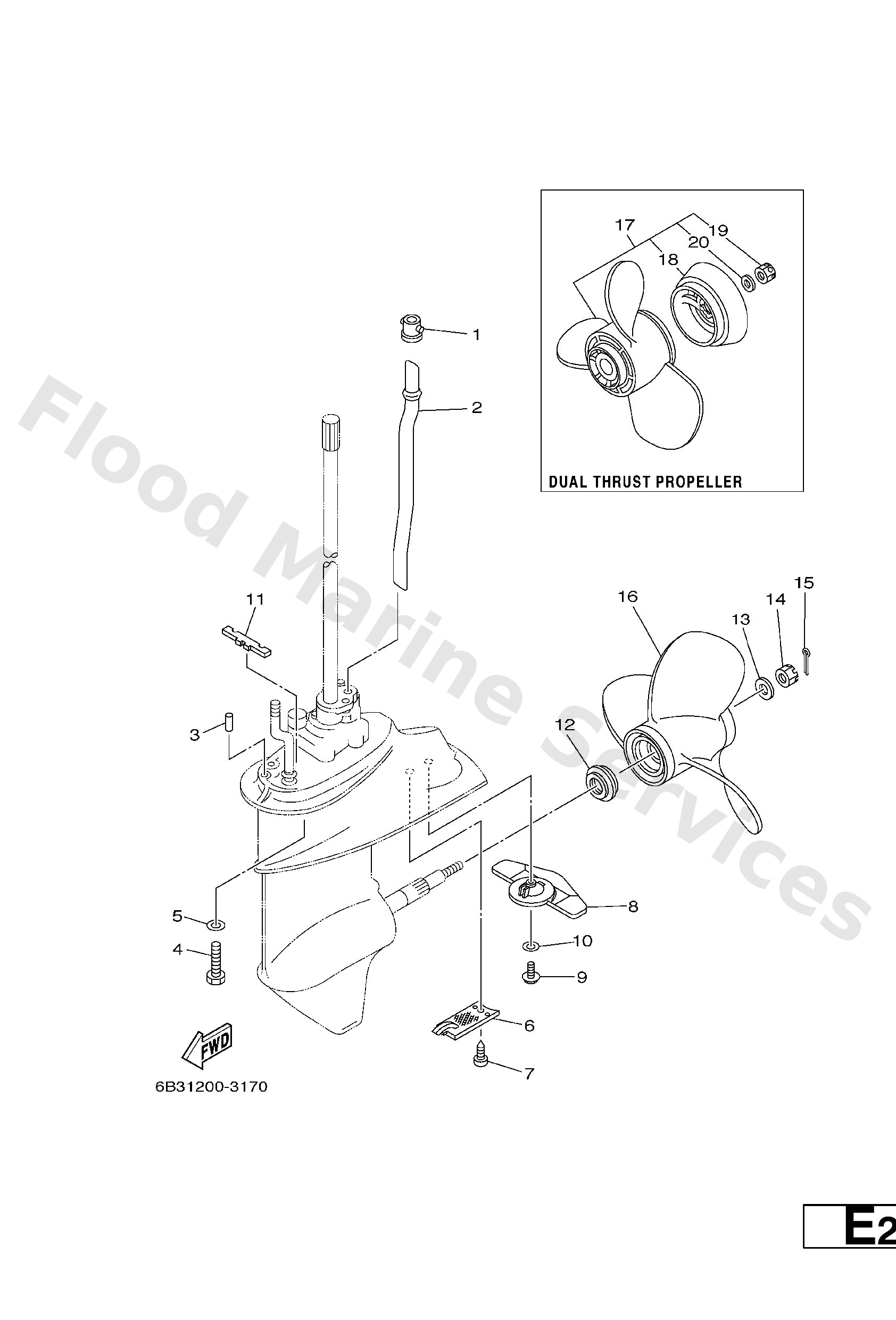

Diagram: LOWER CASING. DRIVE 2
Parts List
Damper, water seal 1
Diagram Reference: 1
Tube, water
Diagram Reference: 2
Tube, water 1
Diagram Reference: 2
Tube, water 1
Diagram Reference: 2
Pin, dowel (614)
Diagram Reference: 3
Bolt(70w)
Diagram Reference: 4
Washer, plain (663)
Diagram Reference: 5
Cover, water inlet
Diagram Reference: 6
Screw,pan head (646)
Diagram Reference: 7
Anode
Diagram Reference: 8
Bolt, flange(jk3)
Diagram Reference: 9
Washer, tooth
Diagram Reference: 10
Damper, seal
Diagram Reference: 11
Spacer
Diagram Reference: 12
Washer, plate(6m7)
Diagram Reference: 13
Nut castle (683)
Diagram Reference: 14
Pin cotter
Diagram Reference: 15
Ring, deflector
Diagram Reference: 18
Nut, castle(6g8)
Diagram Reference: 19
Washer, plate(6g9)
Diagram Reference: 20
