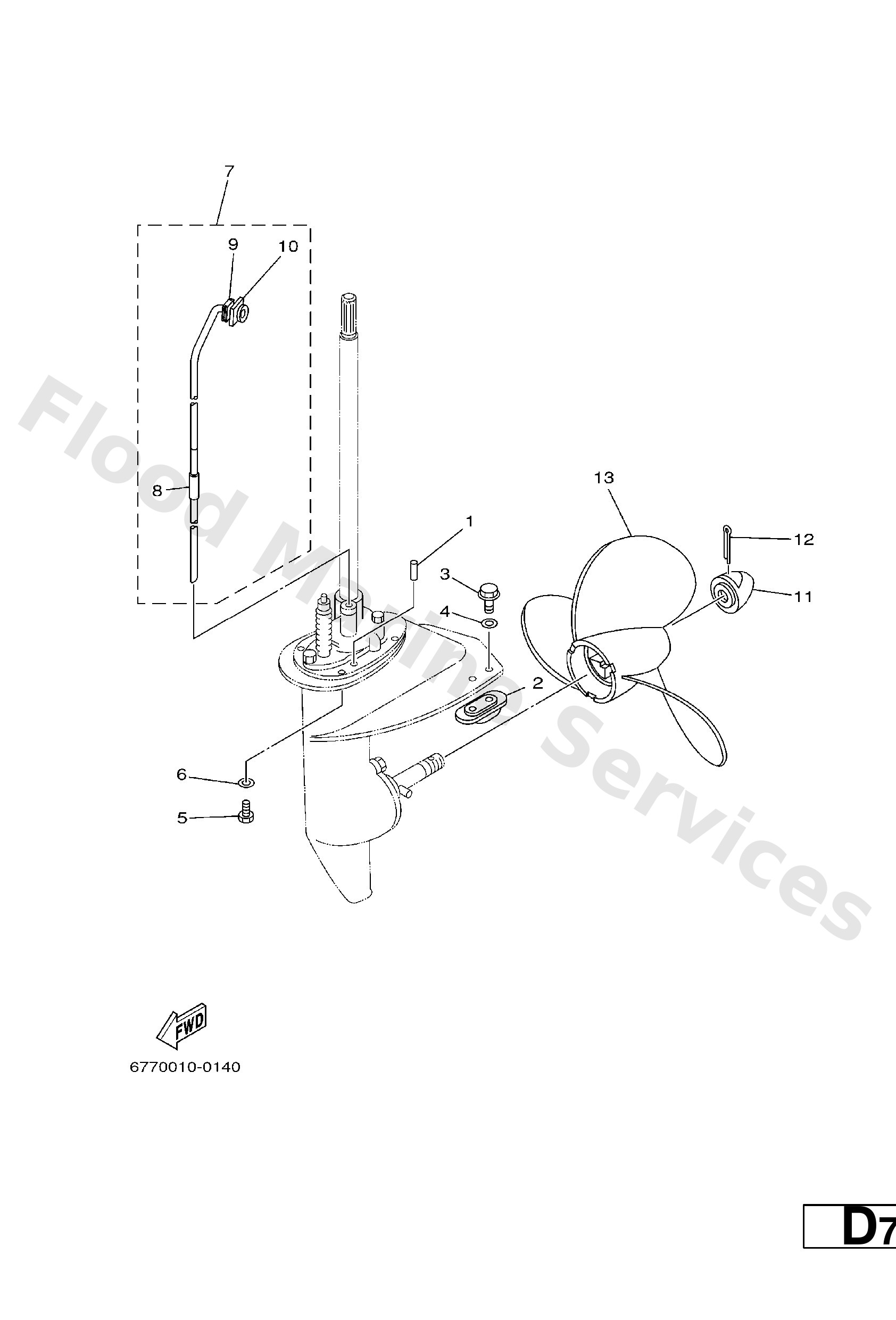

Diagram: LOWER CASING. DRIVE 2

Diagram

Parts List

93604−08062

Pin,dowel (626)

Diagram Reference: 1

6E0−45251−12

Anode

Diagram Reference: 2

95895−06016

Bolt, flange deep recess

Diagram Reference: 3

92990−06300

Washer, tooth

Diagram Reference: 4

97095−06020

Bolt(7u8)

Diagram Reference: 5

92995−06600

Washer, plain (646)

Diagram Reference: 6

655−44360−00 (S)

Water tube assembly

Diagram Reference: 7

655−44360−10 (L)

Tube, water

Diagram Reference: 7

655−44360−20 (X)

Water Tube assembly

Diagram Reference: 7

90445−11262 (S/L)

Hose (l30)

Diagram Reference: 8

655−44365−00

Damper, water seal 1

Diagram Reference: 9

655−44373−00

Set plate, water tube

Diagram Reference: 10

647−45616−02

Nut, propeller

Diagram Reference: 11

91490−30030

Pin, cotter

Diagram Reference: 12

647−45941−00−EL (UR)

Propeller (3x9-1/4 x9-1/4 -c)

Diagram Reference: 13

647−45943−00−EL (UR)

Propeller (3x9"x7"-c)

Diagram Reference: 13

647−45947−00−EL (UR)

Propeller (3x9 x9 -c)

Diagram Reference: 13

655−45943−00−EL (UR)

Propeller (3x9 x7-1/2 -c)

Diagram Reference: 13

655−45945−00−EL (UR)

Propeller (3x9 x6-1/4 -c)

Diagram Reference: 13

655−45947−01−EL (UR)

Propeller (3x9 x5-3/4 -c)

Diagram Reference: 13

655−45949−00−EL (UR)

Propeller (3x9"x5"-c)

Diagram Reference: 13
