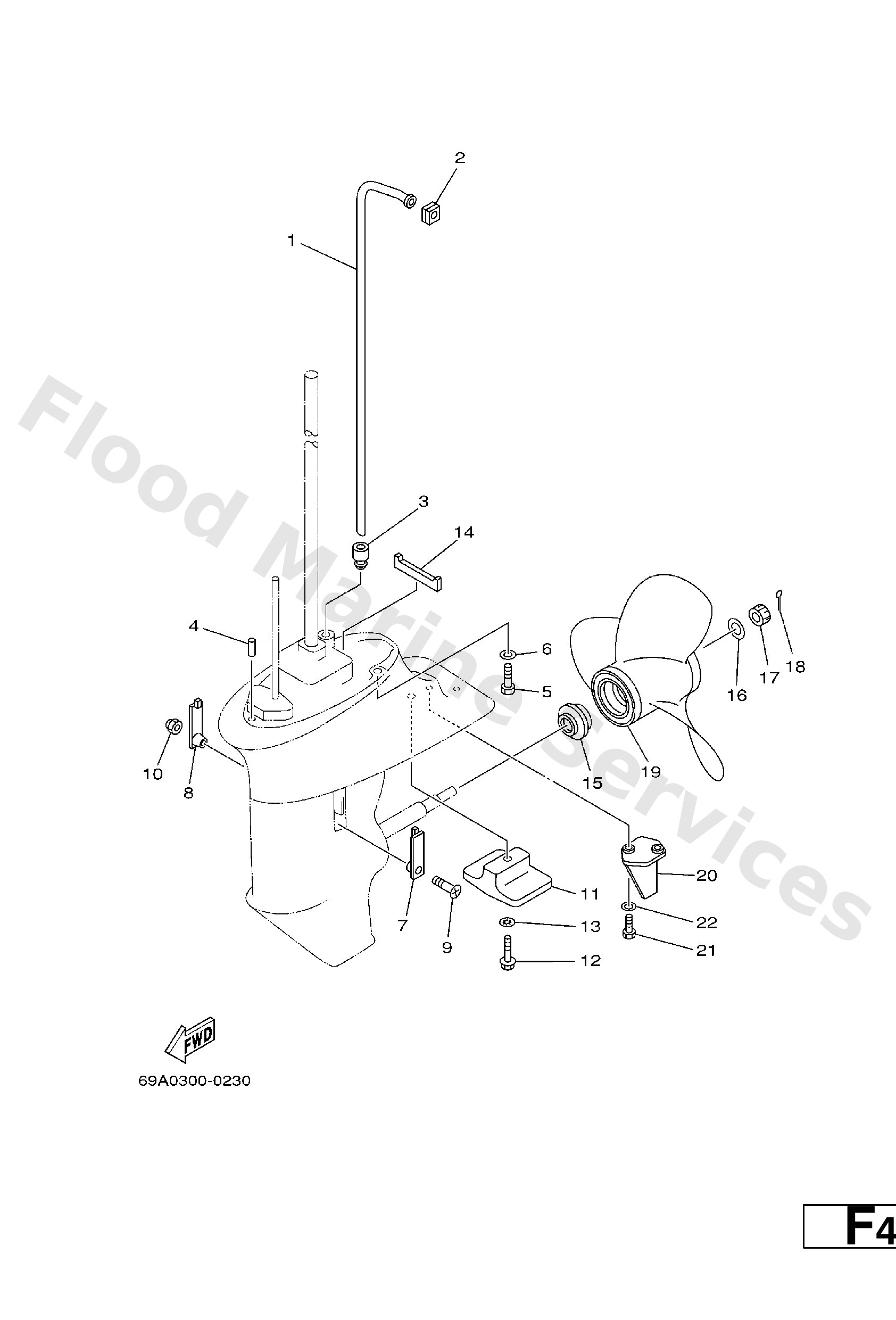

Diagram: LOWER CASING. DRIVE 2

Diagram

Parts List

66M−44361−10 (L)

Tube, water

Diagram Reference: 1

66M−44361−00 (S)

23 −

Diagram Reference: 1

63V−44365−10

Damper, water seal 1

Diagram Reference: 2

63V−44368−00

Rubber, water seal 4

Diagram Reference: 3

93604−12M07

Pin, dowel (688)

Diagram Reference: 4

97075−08030

Bolt, hexagon (fj1)

Diagram Reference: 5

92995−08600

Washer, plain (663)

Diagram Reference: 6

6G1−45214−00

Cover, water inlet

Diagram Reference: 7

63V−45215−00

Cover, water inlet

Diagram Reference: 8

90152−05M04

Screw, countersunk

Diagram Reference: 9

90185−05002

Nut nylon (sus)(ex4)

Diagram Reference: 10

61N−45251−01

Anode

Diagram Reference: 11

95895−06030

Bolt, flange deep recess

Diagram Reference: 12

92990−06300

Washer, tooth

Diagram Reference: 13

63V−45375−00

Damper, seal

Diagram Reference: 14

6E7−45987−01

Spacer

Diagram Reference: 15

90201−10M01

Washer, plate(6m7)

Diagram Reference: 16

90171−10M01

Nut castle (683)

Diagram Reference: 17

91490−30020

Pin cotter

Diagram Reference: 18

683−45941−00−EL (UR)

Propeller (3x9-1/4"x12"-j)

Diagram Reference: 19

683−45943−00−EL (UR)

Propeller (3x9-1/4"x10-1/2"-j)

Diagram Reference: 19

683−45945−00−EL (UR)

Propeller (3X9−1/4”X9”−J)

Diagram Reference: 19

683−45952−00−EL (UR)

Propeller (3X9−1/4”X9−3/4”−J)

Diagram Reference: 19

63V−45947−00−EL (UR)

Propeller (3x9-1/4 x8 -j)

Diagram Reference: 19

66M−45371−00 (S)

Tab-trim

Diagram Reference: 20

97095−06016 (S)

Bolt, hexagon deep recess

Diagram Reference: 21

92995−06600 (S)

Washer, plain (646)

Diagram Reference: 22
