F2.5AMH (2003)
LOWER CASING. DRIVE 2

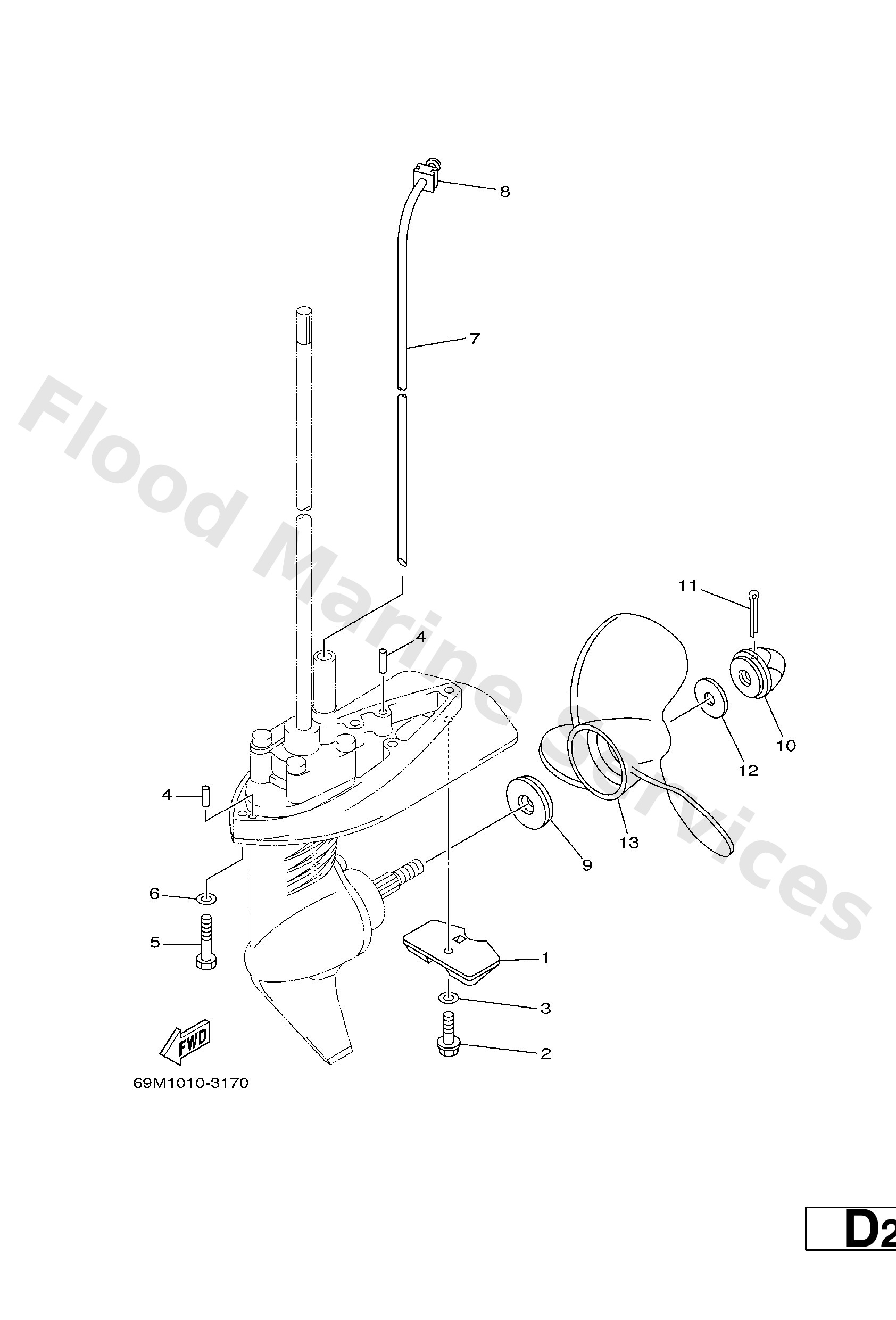

Diagram: LOWER CASING. DRIVE 2
Parts List
Reference
Description
Price
1
68D−G5251−00
Anode
Loading…
↗
2
95895−06020
Bolt, flange(jk3)
Loading…
↗
3
92990−06300
Washer, tooth
Loading…
↗
4
93604−12M07
Pin, dowel (688)
Loading…
↗
5
97095−06030
S
Bolt(jf7)
Loading…
↗
6
92995−06600
S
Washer, plain (646)
Loading…
↗
7
69M−44361−00
S
Tube, water 1
Loading…
↗
7
69M−44361−10
L
Tube, water 1
Loading…
↗
8
68D−G4365−00
Damper, water seal
Loading…
↗
9
68D−G5987−00
Spacer 1
Loading…
↗
10
6L5−45616−00
Nut, propeller
Loading…
↗
11
91490−25030
Pin, cotter(6l5)
Loading…
↗
12
90201−08M54
Washer, plate (6e5)
Loading…
↗
13
6L5−45943−00−EL
UR
Propeller (3x7-1/4 x6 -bs)
Loading…
↗
13
6L5−45945−00−EL
UR
Propeller (3x7-1/4"x7-1/4"-bs)
Loading…
↗
13
6L5−45947−00−EL
UR
Propeller (3x7-1/4"x8-1/4"-bs)
Loading…
↗
13
6L5−45949−00−EL
UR
Propeller (3x7-1/4 x5 -bs)
Loading…
↗
13
6L5−45952−00−EL
UR
Propeller (3x7-1/4"x5-1/2"-bs)
Loading…
↗
