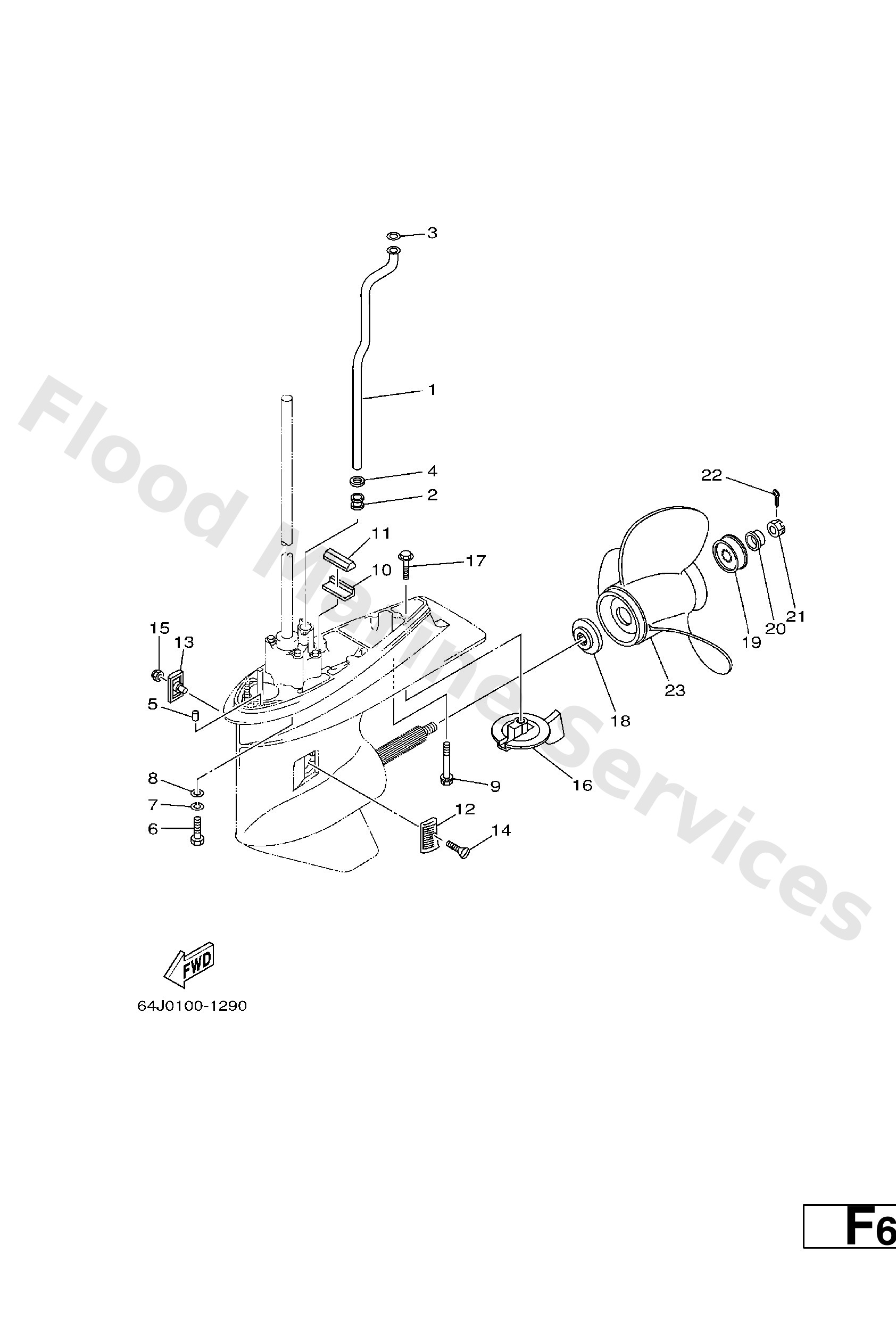

Diagram: LOWER CASING. DRIVE 2

Diagram

Parts List

62Y−44361−00 (L)
Tube, water
Diagram Reference: 1
Get Part
663−44367−00
Damper, water seal 3
Diagram Reference: 2
Get Part
90202−12060
Washer, plate(663)
Diagram Reference: 3
Get Part
90430−12072
Gasket
Diagram Reference: 4
Get Part
93606−12019
Pin, dowel (614)
Diagram Reference: 5
Get Part
97075−10040 (L)
Bolt, hexagon deep recess
Diagram Reference: 6
Get Part
92995−10100 (L)
Ybs67-10 washer, spring
Diagram Reference: 7
Get Part
92995−10600 (L)
Washer, plate
Diagram Reference: 8
Get Part
90119−08M84 (L)
Bolt, with washer
Diagram Reference: 9
Get Part
663−45376−00−94
Guide, seal damper
Diagram Reference: 10
Get Part
688−45375−00
Damper, seal 2
Diagram Reference: 11
Get Part
6H1−45214−00
Cover, water inlet
Diagram Reference: 12
Get Part
6H1−45215−00
Cover, water inlet
Diagram Reference: 13
Get Part
90151−05M00
Screw, countersunk(692)
Diagram Reference: 14
Get Part
90185−05002
Nut nylon (sus)(ex4)
Diagram Reference: 15
Get Part
67F−45371−00
Tab-trim
Diagram Reference: 16
Get Part
90105−10M67
Bolt, hexagon (663)
Diagram Reference: 17
Get Part
688−45987−01
Spacer
Diagram Reference: 18
Get Part
67F−45997−00
Spacer 2
Diagram Reference: 19
Get Part
90389−25M00
Bush
Diagram Reference: 20
Get Part
90171−16011
Nut, castle (663)
Diagram Reference: 21
Get Part
91490−40025
Pin, cotter (663)
Diagram Reference: 22
Get Part
68S−45941−00−EL (UR)
Propeller (3x14 x11 -k)
Diagram Reference: 23
Get Part
6E5−45949−00−EL (UR)
Propeller (3x13-5/8"x13"-k)
Diagram Reference: 23
Get Part
